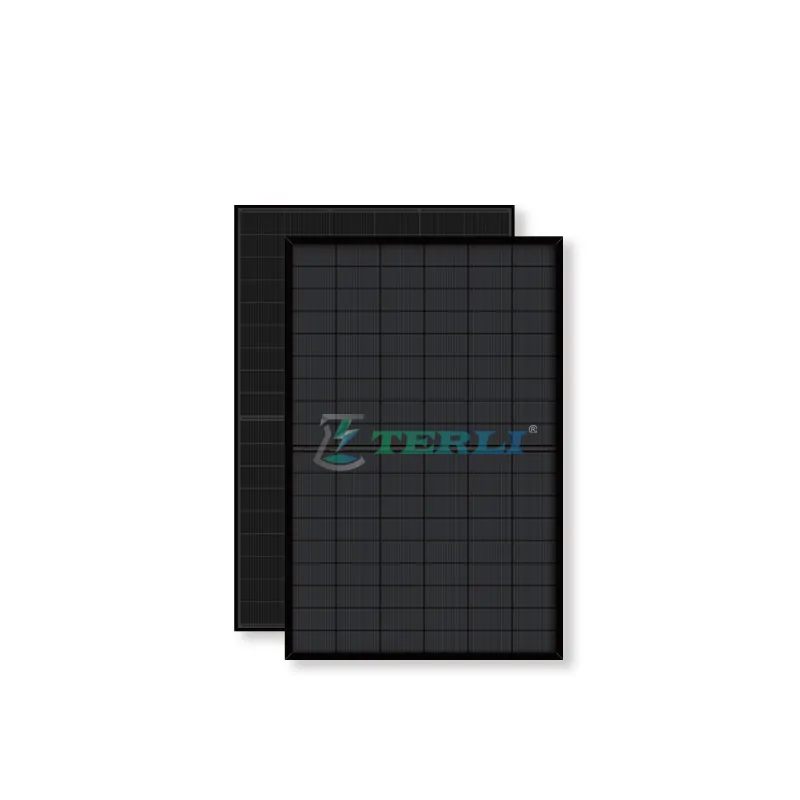

420W-440W M10 108HC Gloine Dúbailte Uile-dubh
Terli
| Paraiméadair LEICTREACH (Tá Coinníoll Tástála Bunaithe ar an Taobh Tosaigh) | ||||||||||
| Cineál Modúl | N420H108M10D-AB | N425H108M10D-AB | N430H108M10D-AB | N435H108M10D-AB | N440H108M10D-AB | |||||
| Coinníoll Tástála | STC | NOTC | STC | NOTC | STC | NOTC | STC | NOTC | STC | NOTC |
| Ainmniúil Max. Cumhacht (Pmax/W) | 420 |
318 | 425 | 322 |
430 |
326 |
435 | 330 |
440 |
334 |
| Voltas Ciorcaid Oscailte (Voc/V) | 37.90 |
36.20 |
38.10 |
36.40 |
38.30 |
36.60 |
38.50 |
36.80 |
38.70 |
37.00 |
| Sruth Gearrchiorcaid (Isc/A) | 13.98 |
11.27 |
14.05 |
11.33 |
14.12 |
11.38 |
14.19 |
11.44 |
14.26 |
11.50 |
| Voltas Cumhachta Uasta (Vmp/V) | 31.90 |
30.00 |
32.10 |
30.20 |
32.30 |
30.40 |
32.50 |
30.60 |
32.70 |
30.80 |
| Sruth Cumhachta uasta (Imp/A) | 13.17 |
10.62 |
13.24 |
10.67 |
13.32 |
10.74 |
13.39 |
10.80 |
13.46 |
10.88 |
| Éifeachtúlacht (%) | 21.50% | 21.76% |
22.02% |
22.27% |
22.54% |
|||||
STC: Ionradaíocht = 1000 W/㎡, Teocht na Cille = 25 ℃, AM = 1.5, Meánlaghdú éifeachtúlachta de 4.5% ag 200 W/㎡ NOTC: Ionradaíocht = 8 00 W/㎡, Teocht Comhthimpeallach = 20 ℃, AM = 1.5, Luas na Gaoithe = 1 m/s |
||||||||||
| Paraiméadair MEICNIÚLA | |||
| cill | 182×91mm, 108HC |
Cónascaire |
MC4 Bunaidh / Comhoiriúnach |
| Méid an Mhodúil & Meáchan | 1722×1134×30mm, 24.5Kg |
Bosca Acomhal |
IP68, 3 Diodes Seachbhóthar |
| Gloine | Gloine Neartaithe Teas Brataithe 2.0 mm AR |
Fráma | Cóimhiotal Alúmanam Anodized (Dubh) |
| Bileog Dubh | Gloine Snámhphointe Ultra-Clear 2.0 mm | Cábla | 4mm², Fad Cábla 300mm (Saincheaptha) |
Ceithre Rogha Cumraíochta (roghanna saincheaptha ar fáil)
