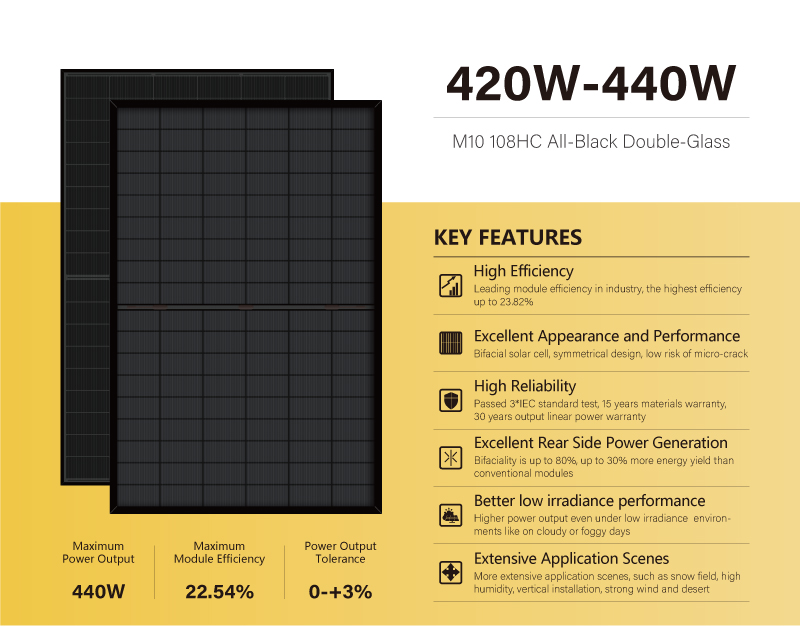

420W-440W All-Black Photovoltaic Solar Panel

*Application Scenarios

For European residential solar photovoltaic rooftops

*Maximum Power Output
420W-440W

*Maximum Module Efficiency
22.54%

*Power Output Tolerance
0-+3%

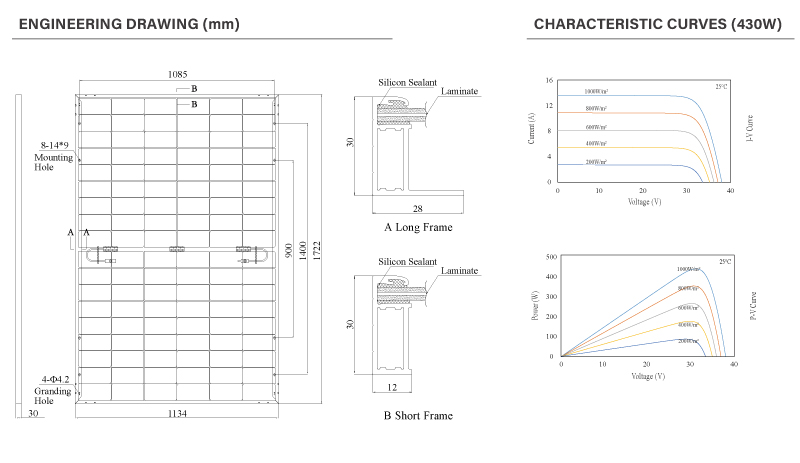

N420440M10D-AB-108HC solar panel details (1)

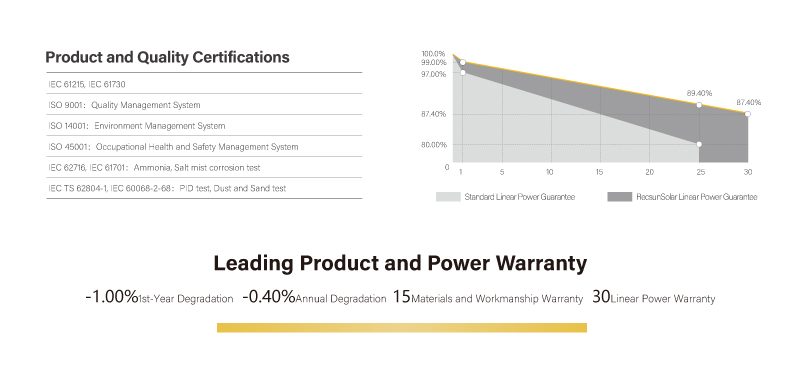

N420440M10D-AB-108HC solar panel details (3)

ELECTRICAL PARAMETERS (Test Condition is Based on the Front Side)
Module Type	N420H108M10D-AB		N425H108M10D-AB		N430H108M10D-AB		N435H108M10D-AB		N440H108M10D-AB
Testing Condition	STC	NOTC	STC	NOTC	STC	NOTC	STC	NOTC	STC	NOTC
Nominal Max. Power (Pmax/W)	420	318	425	322	430	326	435	330	440	334
Open Circuit Voltage (Voc/V)	37.90	36.20	38.10	36.40	38.30	36.60	38.50	36.80	38.70	37.00
Short Circuit Current (Isc/A)	13.98	11.27	14.05	11.33	14.12	11.38	14.19	11.44	14.26	11.50
Maximum Power Voltage (Vmp/V)	31.90	30.00	32.10	30.20	32.30	30.40	32.50	30.60	32.70	30.80
Maximum Power Current (Imp/A)	13.17	10.62	13.24	10.67	13.32	10.74	13.39	10.80	13.46	10.88
Efficiency (%)	21.50%		21.76%		22.02%		22.27%		22.54%
STC: Irradiance = 1000 W/㎡, Cell Temperature = 25℃, AM = 1.5, Average efficiency reduction of 4.5% at 200 W/㎡ NOTC: Irradiance = 800 W/㎡, Ambient Temperature = 20℃, AM = 1.5, Wind Speed = 1 m/s

MECHANICAL PARAMETERS
Cell	182x91mm, 108HC	Connector	MC4 Original / Compatible
Module Size & Weight	1722x1134x30mm, 24.5Kg	Junction Box	IP68, 3 Bypass Diodes
Glass	2.0 mm AR Coated Heat Strengthened Glass	Frame	Anodized Aluminum Alloy (Black)
Black Sheet	2.0 mm Ultra-Clear Float Glass	Cable	4mm², Cable Length 300mm (Customized)
