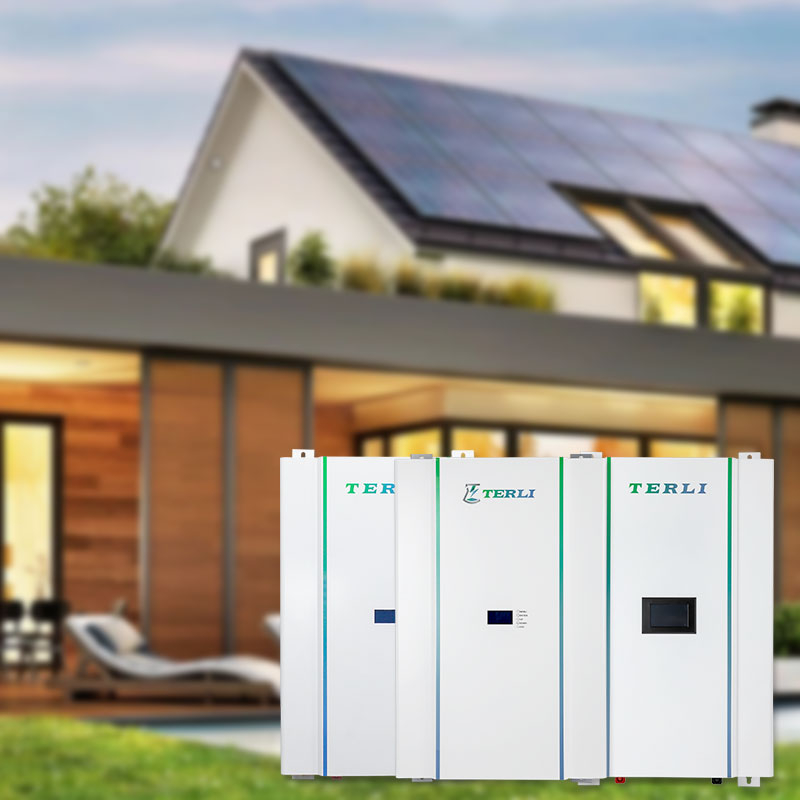

1.Design for Home Solar Systems
2.Higher Energy Density, Smaller Household Size
3.Wall-mounted Installation Design
4.Support Parallel Expansion(Up to 64)
5.With More Usable Capacity
| Quantity: | |
|---|---|
100Ah
Terli
Our range covers from 12V / 24V / 48V / 72V / 96V to 388V.
With a capacity of 10 Ah / 20Ah / 30Ah / 50Ah / 100Ah / 200Ah / 600Ah.
Feature
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Wide temperature range: -20 ° C ~ 60 ° C.
7. Support for series application extensions (up to 512V)
Model | Helios | |||
Battery Type | LiFe PO4 | |||
Battery Module | Helios 3 | Helios 5 | Helios 7 | Helios 10 |
Battery Capacity (Ah) | 50 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power（kW） | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight（Kg） | 41 | 56 | 81 | 98 |
Dimension (L*W*H mm) | 350*300*180 | 700*580*210 | ||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp.Range (°C) | -20~50 | |||
Calendar Life (Cycles) | 6000@25°C,80%DOD | |||
Nominal Voltage(V) | 51.2 | |||
Protection Level | IP54 | |||
| Communication | CAN/RS485 | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |||
Monitoring & Protection | BMS | |||
| HMI | LCD | |||
Q: Do you offer free samples?
A: We don't provide free sample, but the sample cost can return to you when you place bulk orders .
Q: What is your terms of payment?
A: We accepted most of payment terms, like T/T,L/C at sight, PayPal, Western Union, Cash etc.
Q: What is a minimum number (pieces) of order for this product?
A: Our MOQ is 1 piece, the more the quantity, the more preferential it is.
Q: How many time you need for production of one sample?
A: If customized according to customer requirements, production time needs 10-15 working days, if it’s our standardized products most of the time we can supply from stock .
Q: How do you ship the products?
A: For small orders or samples we can arrange door to door air freight delivery , for large quantity we normally arrange container or LCL ocean shipment .
Q: How much does shipping cost?
A:It depends on the quantity of goods, the shipping method, and the country . But we will always figure out the best choice for you .
Q: How can I get the best prices?
A: You get cheaper per-item price when you buy larger quantities. Use the website to check prices. Returning customers receive better discount levels.
Q: What if the product is broken?
A: If any product is faulty, you can send me the picture or video to us, and we will study it. And provide the spare parts for after sale service.
