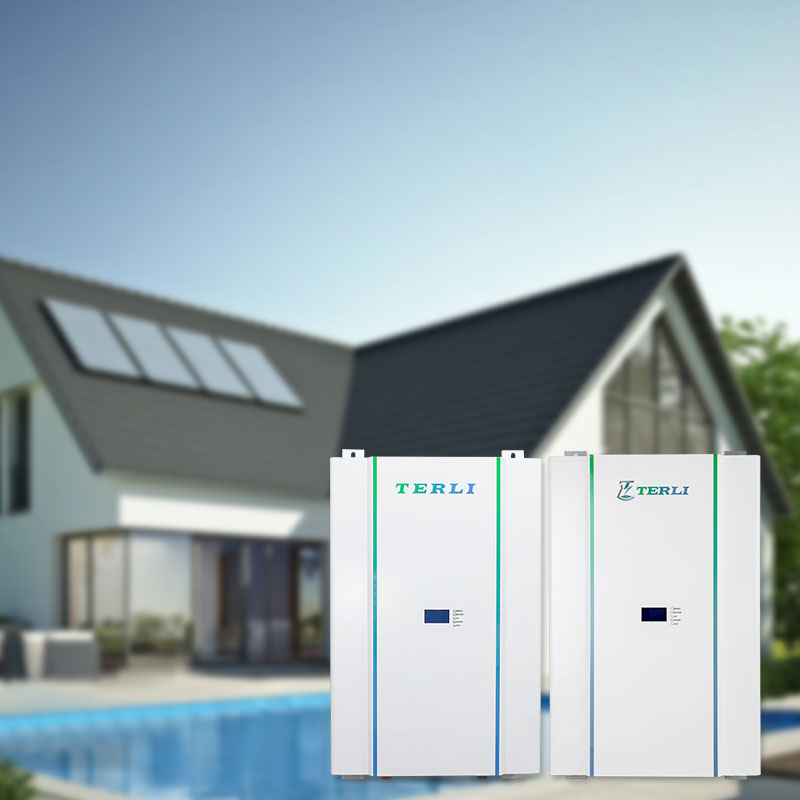

100ah 5kWh Wall-Mounted High Quality Powerwall for Home

1.Design for Home Solar Systems
2.Higher Energy Density, Smaller Household Size
3.Wall-mounted Installation Design
4.Support Parallel Expansion(Up to 64)
5.With More Usable Capacity

Availability:
Quantity:
  • 100Ah

  • Terli

Our range covers from 12V / 24V / 48V / 72V / 96V to 388V.

With a capacity of 10 Ah / 20Ah / 30Ah / 50Ah / 100Ah / 200Ah / 600Ah.



Feature

1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles

2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.

3. Maintenance free.

4. Internal battery balance.

5. Light weight: about 40%~50% of the weight of lead-acid batteries.

6. Wide temperature range: -20 ° C ~ 60 ° C.

7. Support for series application extensions (up to 512V)

Model

Helios

Battery Type

LiFe PO4

Battery Module

Helios 3

Helios 5

Helios 7 Helios 10

Battery Capacity (Ah)

50

100

150 202

Nominal Battery Energy (kWh)

3

5.1

7.6 9.6

Max Output Power(kW)

2.4

4.8 7.2 10.3

Net Weight(Kg)

41

56

81 98

Dimension (L*W*H mm)

350*300*180

700*580*210

Working Voltage (V)

43.2~58.4

Operating Temp.Range (°C)

-20~50

Calendar Life (Cycles)

6000@25°C,80%DOD

Nominal Voltage(V)

51.2

Protection Level

IP54

Communication CAN/RS485

Certification & Safety Standard

TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited

Monitoring & Protection

BMS

HMI LCD

详情_01






powerwall

详情_04详情_07详情_11详情_08

FAQ:

Q: Do you offer free samples?


A: We don't provide free sample, but the sample cost can return to you when you place bulk orders .




Q: What is your terms of payment?


A: We accepted most of payment terms, like T/T,L/C at sight, PayPal, Western Union, Cash etc.




Q: What is a minimum number (pieces) of order for this product?


A: Our MOQ is 1 piece, the more the quantity, the more preferential it is.




Q: How many time you need for production of one sample?


A: If customized according to customer requirements, production time needs 10-15 working days, if it’s our standardized products most of the time we can supply from stock .




Q: How do you ship the products?


A: For small orders or samples we can arrange door to door air freight delivery , for large quantity we normally arrange container or LCL ocean shipment .




Q: How much does shipping cost?


A:It depends on the quantity of goods, the shipping method, and the country . But we will always figure out the best choice for you .




Q: How can I get the best prices?


A: You get cheaper per-item price when you buy larger quantities. Use the website to check prices. Returning customers receive better discount levels.




Q: What if the product is broken?


A: If any product is faulty, you can send me the picture or video to us, and we will study it. And provide the spare parts for after sale service.
