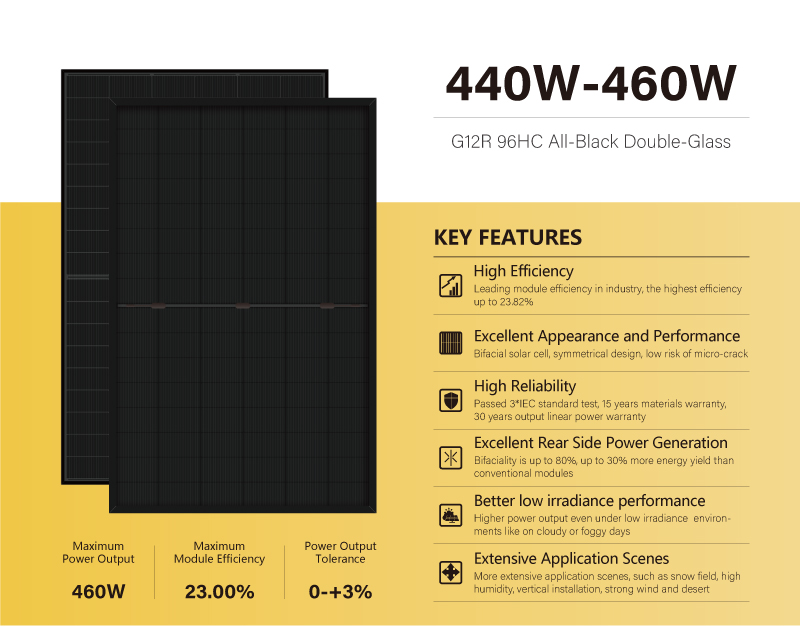

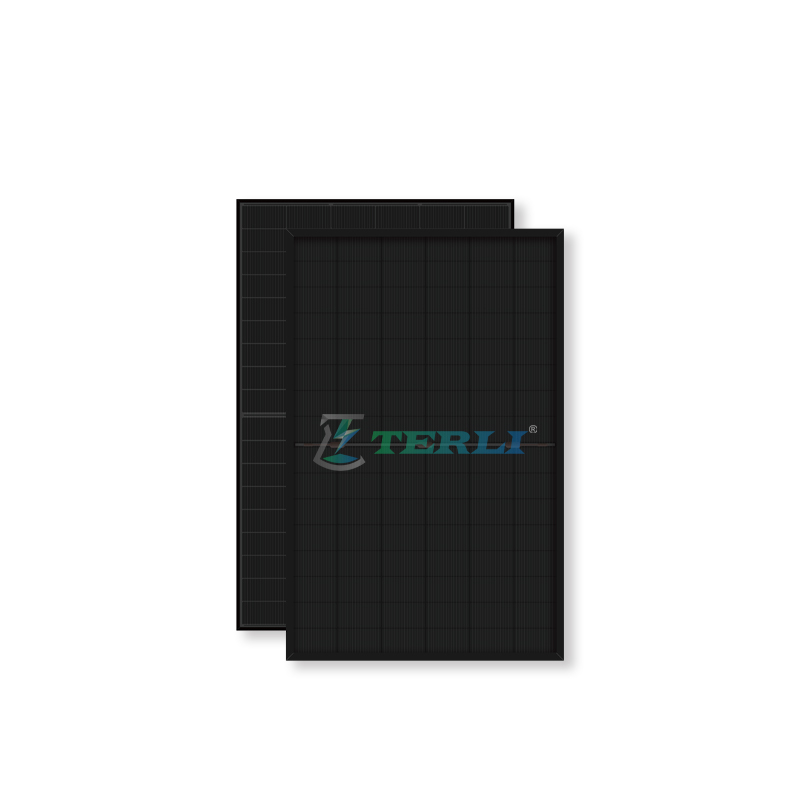

440W-460W All-Black Photovoltaic Solar Panel

*Application Scenarios

For European residential solar photovoltaic rooftops

*440W-460W

G12R 96HC All-Black Double Glass

*Maximum Power Output
440W-460W

*Maximum Module Efficiency
23.00%

*Power Output Tolerance
0-+3%

N440460G12RD-AB-96HC solar panel detials (1)

N440460G12RD-AB-96HC solar panel detials (3)

ELECTRICAL PARAMETERS (Test Condition is Based on the Front Side)
Module Type	N440H96G12RD-AB		N445H96G12RD-AB		N450H96G12RD-AB		N455H96G12RD-AB		N460H96G12RD-AB
Testing Condition	STC	NOTC	STC	NOTC	STC	NOTC	STC	NOTC	STC	NOTC
Nominal Max. Power (Pmax/W)	440	345	445	339	450	343	455	347	460	351
Open Circuit Voltage (Voc/V)	34.92	33.44	35.11	33.62	35.30	33.80	35.50	33.99	35.70	34.17
Short Circuit Current (Isc/A)	15.94	12.85	16.01	12.91	16.08	12.96	16.16	13.03	16.24	13.09
Maximum Power Voltage (Vmp/V)	29.65	28.02	29.83	28.19	30.02	28.37	30.22	28.56	30.42	28.74
Maximum Power Current (Imp/A)	14.84	11.96	14.92	12.03	14.99	12.08	15.06	12.14	15.13	12.21
Efficiency (%)	22.00%		22.30%		22.50%		22.80%		23.00%
STC: Irradiance = 1000 W/㎡, Cell Temperature = 25℃, AM = 1.5, Average efficiency reduction of 4.5% at 200 W/㎡ NOTC: Irradiance = 800 W/㎡, Ambient Temperature = 20℃, AM = 1.5, Wind Speed = 1 m/s

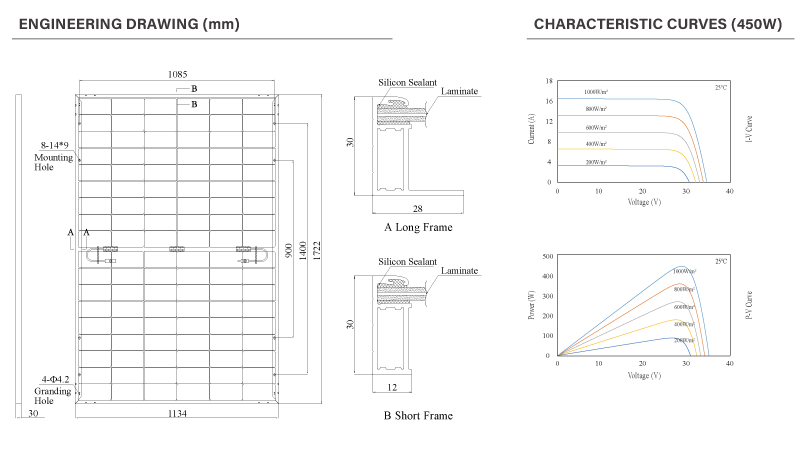

MECHANICAL PARAMETERS
Cell	182x105mm, 96HC	Connector	MC4 Original / Compatible
Module Size & Weight	1762x1134x30mm, 25.0Kg	Junction Box	IP68, 3 Bypass Diodes
Glass	2.0 mm AR Coated Heat Strengthened Glass	Frame	Anodized Aluminum Alloy (Black)
Black Sheet	2.0 mm Ultra-Clear Float Glass	Cable	4mm², Cable Length 300mm (Customized)
