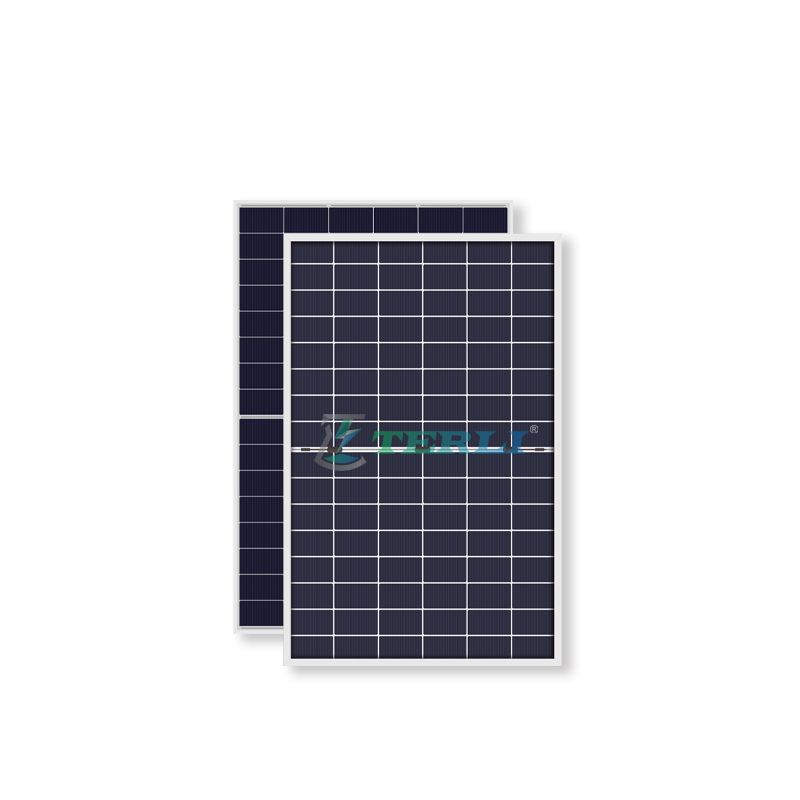

440W-460W Double-Glass Photovoltaic Solar Panel

*Application Scenarios

For European residential solar photovoltaic rooftops

*Maximum Power Output
440W-460W

*Maximum Module Efficiency
23.00%

*Power Output Tolerance
0-+3%

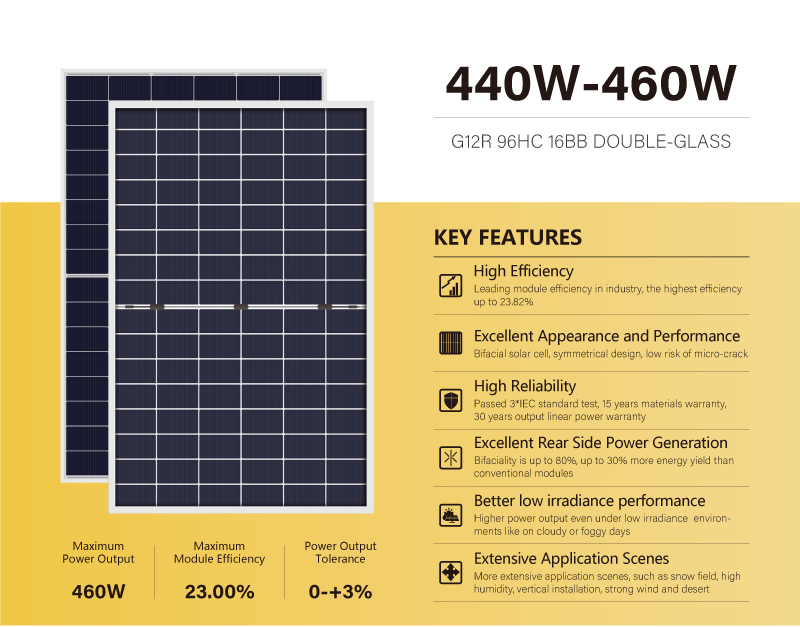

N440460G12RD-96HC solar panel details (1)

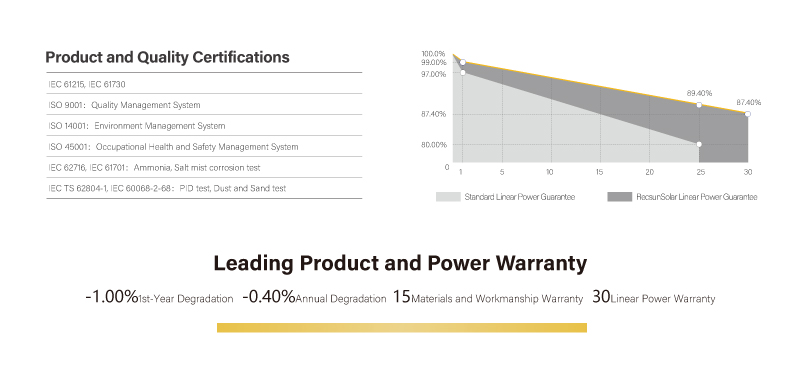

N440460G12RD-96HC solar panel details (3)

ELECTRICAL PARAMETERS (Test Condition is Based on the Front Side)
Module Type	N440H96G12RD		N445H96G12RD		N450H96G12RD		N455H96G12RD		N460H96G12RD
Testing Condition	STC	NOTC	STC	NOTC	STC	NOTC	STC	NOTC	STC	NOTC
Nominal Max. Power (Pmax/W)	440	345	445	339	450	343	455	347	460	351
Open Circuit Voltage (Voc/V)	34.92	33.44	35.11	33.62	35.30	33.80	35.50	33.99	35.70	34.17
Short Circuit Current (Isc/A)	15.94	12.85	16.01	12.91	16.08	12.96	16.16	13.03	16.24	13.09
Maximum Power Voltage (Vmp/V)	29.65	28.02	29.83	28.19	30.02	28.37	30.22	28.56	30.42	28.74
Maximum Power Current (Imp/A)	14.84	11.96	14.92	12.03	14.99	12.08	15.06	12.14	15.13	12.21
Efficiency (%)	22.00%		22.30%		22.50%		22.80%		23.00%
STC: Irradiance = 1000 W/㎡, Cell Temperature = 25℃, AM = 1.5, Average efficiency reduction of 4.5% at 200 W/㎡ NOTC: Irradiance = 800 W/㎡, Ambient Temperature = 20℃, AM = 1.5, Wind Speed = 1 m/s

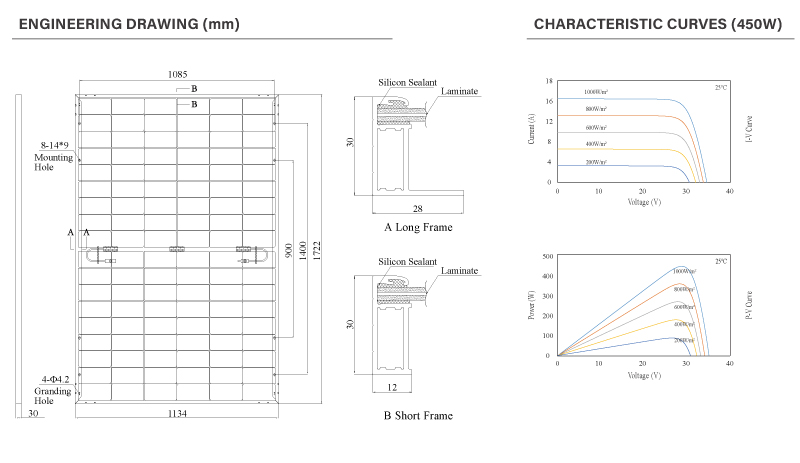

MECHANICAL PARAMETERS
Cell	182x105mm, 96HC	Connector	MC4 Original / Compatible
Module Size & Weight	1762x1134x30mm, 25.0Kg	Junction Box	IP68, 3 Bypass Diodes
Glass	2.0 mm AR Coated Heat Strengthened Glass	Frame	Anodized Aluminum Alloy (Sliver)
Black Sheet	2.0 mm Ultra-Clear Float Glass	Cable	4mm², Cable Length 300mm (Customized)
