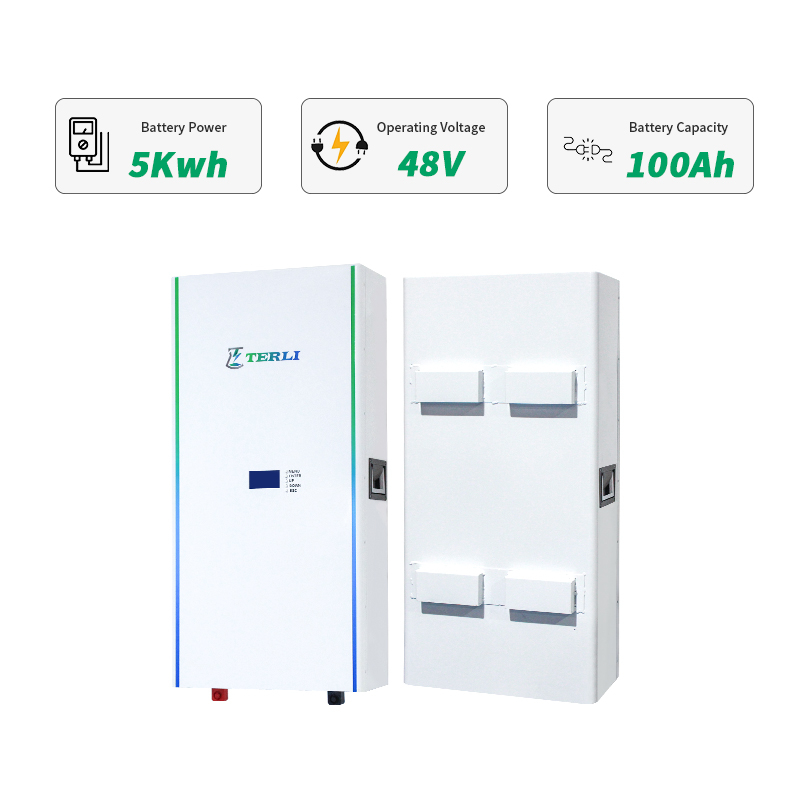

48 Volt 5KW Wall Mount 100ah Circuit Protection Battery

Terli lithium iron phosphate battery is designed & developed to outperform traditional lead acid batteries by offering more usable & reliable power with much less weight and truly free of maintenance. Compared with traditional lead-acid battery, lithium battery has overwhelming advantages in cycle life, charging & discharging, and more tolerance in high temperature. They are smarter and safer with BMS (Battery Management System) to protect the battery from short circuit, over charging, over discharging and thermo ran away.



Availability:
Quantity:
  • 5kw

  • Terli

Product Description

wall mounted Lithium battery solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system.


With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.

详情页-terli_01



Model

Helios

Battery Type

LiFe PO4

Battery Module

Helios 3

Helios 5

Helios 7 Helios 10

Battery Capacity (Ah)

65

100

150 202

Nominal Battery Energy (kWh)

3

5.1

7.6 9.6

Max Output Power(kW)

2.4

4.8 7.2 10.3

Net Weight(Kg)

41

56

81 98

Dimension (L*W*H mm)

450*400*220

700*580*210

Working Voltage (V)

43.2~58.4

Operating Temp.Range (°C)

-20~50

Calendar Life (Cycles)

6000@25°C,80%DOD

Nominal Voltage(V)

51.2

Protection Level

IP54

Communication CAN/RS485

Certification & Safety Standard

TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited

Monitoring & Protection

BMS

HMI LCD

ty-200AH-powerwall详情页_02

详情页-terli_02详情页-terli_03详情页-terli_04详情页-terli_05详情页-terli_06详情页-terli_07详情页-terli_08详情页-terli_10详情页-terli_14详情页-terli_12photobank详情页-terli_13详情页-terli_15




Customized requirementsRecommended Products3kWh Power Wall


FAQ:

Q1: What products do you offer?

Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery, Battery Pack,Lithium Battery 24V 48V etc.


Q2: How can I get a sample to check your quality?

If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.


Q3: Can I have the products with my own logo?

Yes. We can offer both OEM and ODM service with prototype design and small MOQ.


Q4: How long can I expect to get the sample?

The samples will be ready for delivery in 3~5days after we receive the payment.



Q5:Can you give me a discount?

Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.


Q6. What are the advantages that distinguish from others?

1. Official cooperative supplier of China State Grid Official

2. With professional product development team

3. Rich experience in wireless computer room

4. With superior energy storage solution
