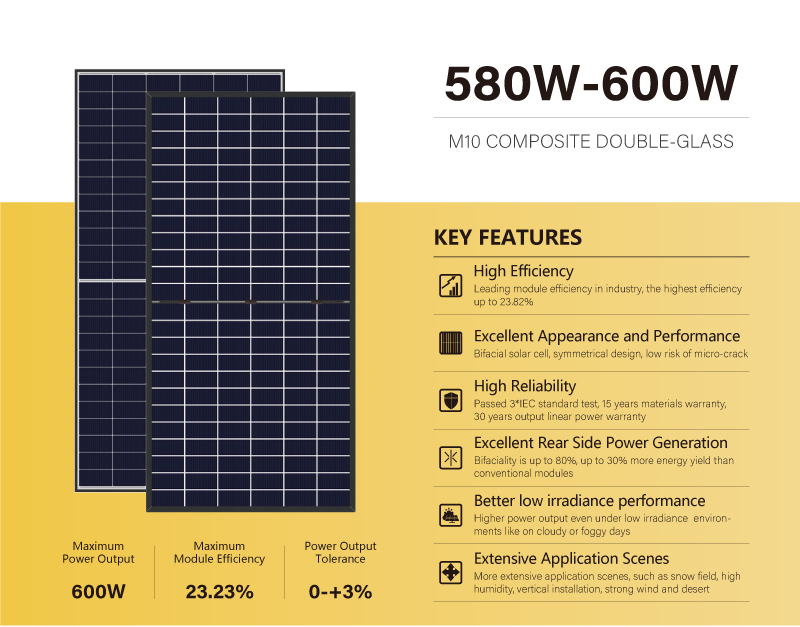

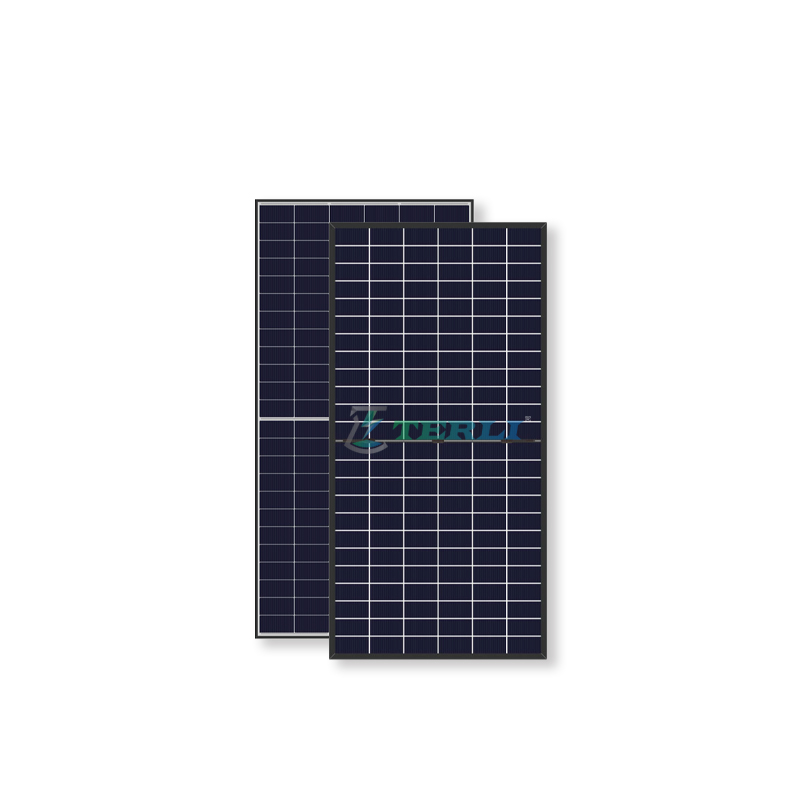

580W-600W M10 144HC 18BB DOUBLE-GLASS
Terli
| ELECTRICAL PARAMETERS (Test Condition is Based on the Front Side) | ||||||||||
| Module Type | N580H144M10D | N585H144M10D | N590H144M10D | N595H144M10D | N600H144M10D | |||||
| Testing Condition | STC | NOTC | STC | NOTC | STC | NOTC | STC | NOTC | STC | NOTC |
| Nominal Max. Power (Pmax/W) | 580 | 440 | 585 | 445 | 590 | 450 | 595 | 455 | 600 | 460 |
| Open Circuit Voltage (Voc/V) | 51.40 | 49.10 | 51.60 | 49.30 | 51.80 | 49.50 | 52.00 | 49.70 | 52.20 | 49.90 |
| Short Circuit Current (Isc/A) | 14.23 | 11.47 | 14.29 | 11.53 | 14.35 | 11.59 | 14.41 | 11.65 | 14.47 | 11.71 |
| Maximum Power Voltage (Vmp/V) | 43.20 | 40.60 | 43.40 | 40.80 | 43.60 | 41.00 | 43.80 | 41.20 | 44.00 | 41.40 |
| Maximum Power Current (Imp/A) | 13.43 | 10.84 | 13.48 | 10.91 | 13.53 | 10.98 | 13.58 | 11.05 | 13.63 | 11.12 |
| Efficiency (%) | 22.45% | 22.65% | 22.84% | 23.04% | 23.23% | |||||
STC: Irradiance = 1000 W/㎡, Cell Temperature = 25℃, AM = 1.5, Average efficiency reduction of 4.5% at 200 W/㎡ NOTC: Irradiance = 800 W/㎡, Ambient Temperature = 20℃, AM = 1.5, Wind Speed = 1 m/s | ||||||||||

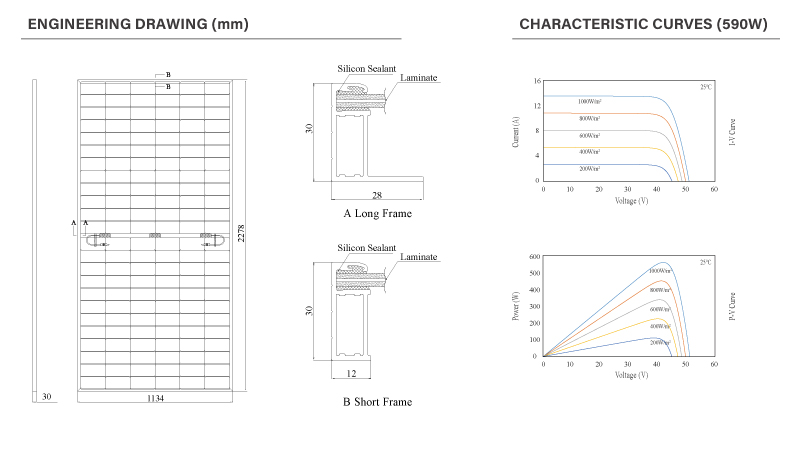

| MECHANICAL PARAMETERS | |||
| Cell | 182x91mm, 144HC | Connector | MC4 Original / Compatible |
| Module Size & Weight | 2278x1134x30mm, 32.0Kg | Junction Box | IP68, 3 Bypass Diodes |
| Glass | 2.0 mm AR Coated Heat Strengthened Glass | Frame | Anodized Aluminum Alloy (Sliver) |
| Black Sheet | 2.0 mm Ultra-Clear Float Glass | Cable | 4mm², Cable Length 300mm (Customized) |
Four Configuration Options (custom options available)
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass (AM) 1.5
NOTC: Irradiance 800W/m², Ambient Temperature 20°C, Air Mass (AM) 1.5, Wind Speed 1 m/s
Cell Technology: N-Type TOPCon Monocrystalline Silicon, 144 Half-Cut (HC) cells (182x91mm) with 10BB/18BB SMBB technology.
Dimensions: 2278 x 1134 x 30 mm
Weight: 32.0 kg
Construction: Dual-glass design with 2.0mm AR-coated, heat-strengthened front glass and 2.0mm ultra-clear float back glass.
Frame: Anodized aluminum alloy, available in silver or black.
Junction Box: IP68 rated, equipped with 3 bypass diodes.
Output Cables: 4mm², length is customizable (e.g., Positive: 400mm, Negative: 200mm).
Connectors: MC4 compatible.
Max System Voltage: 1500V DC
Operating Temperature: -40°C to +85°C
Maximum Series Fuse Rating: 25A
Mechanical Load: Tested for front-side snow load up to 5400Pa.
Temperature Coefficient of Pmax: -0.29%/°C
Temperature Coefficient of Voc: -0.25%/°C
Temperature Coefficient of Isc: +0.045%/°C
Nominal Operating Cell Temperature (NOCT): 43°C ±2°C
Unlock superior performance for your projects with the 580W-600W SEA Photovoltaic Solar Panel, engineered with cutting-edge technology for maximum ROI.
Maximized Energy Yield: Leverages advanced N-Type TOPCon and bifacial technology to achieve up to 80% bifaciality, capturing up to 30% additional energy gain from the rear side. This powerful combination significantly lowers your project's Levelized Cost of Energy (LCOE).
Industry-Leading Efficiency: With a module efficiency of up to 23.23% and an innovative multi-busbar (MBB) half-cut cell design (including HOT 2.0 and SMBB technologies), these panels reduce internal current and resistance loss, ensuring exceptional output even in low-light conditions.
Unmatched Durability: The robust double-glass, symmetrical structure provides enhanced mechanical strength and minimizes the risk of micro-cracks. A special circuit design lowers hot spot temperature, and the panel is engineered for durability in extreme environments, ensuring long-term reliability.
Guaranteed PID Resistance: The panel's materials and design offer excellent resistance to Potential Induced Degradation (PID), ensuring stable power output and securing your investment over the panel's long lifespan.
Globally Certified for Bankability: These 580W-600W panels meet stringent international standards, including IEC 61215, IEC 61730, CE, and TUV. This ensures your projects meet regulatory requirements across the SEA market and beyond.
Comprehensive Management System Certification: Our manufacturing processes are certified under ISO 9001 for Quality Management, ISO 14001 for Environmental Management, and ISO 45001 for Occupational Health and Safety.
Engineered for Harsh Climates: Our modules pass tests that are three times the IEC standard. With certified resistance to salt mist (IEC 61701), ammonia (IEC 62716), dust and sand (IEC 60068-2-68), and PID effects (IEC TS 62804-1), they deliver exceptional durability in demanding environments.
Guaranteed Power Output: We enforce a strict 0 to +3% positive power tolerance. This guarantees every panel delivers its rated power or more, maximizing your system's energy yield and accelerating your return on investment.
At Terli, we provide the manufacturing scale and reliability your large-scale solar projects in the SEA market demand. Our significant production capacity ensures a consistent supply of our high-performance 580W-600W SEA Photovoltaic Solar Panels, ready to meet your bulk order requirements.
Massive Production Scale: With an annual output capacity of approximately 2.5GW and a daily capacity of up to 6,000 pieces, we are equipped to handle ambitious project pipelines and OEM/ODM requests without compromising on delivery schedules.
Automated Manufacturing Excellence: Our state-of-the-art production line utilizes advanced automation for key processes, including cell sorting, welding, soldering, and lamination. This guarantees exceptional precision and consistent quality for every panel.
Rigorous Quality Control: We integrate multiple testing stages—including cell crack tests, intermediate checks, and final electrical performance (IV) testing—into our manufacturing process to ensure every panel meets the highest performance and reliability standards.
Rapid Deployment: Benefit from our efficient supply chain with standard lead times of just 7-15 days, helping you keep your projects on track and on budget. In-stock goods can be available in as little as 5-7 days.
We ensure your bulk orders of the 580W-600W SEA Photovoltaic Solar Panels are delivered safely and efficiently. Our logistics are optimized for large-scale B2B projects, prioritizing product integrity from our factory to your site.
Packaging & Container Loading
| Specification | Details for 580W-600W Panels |
|---|---|
| Pieces per Pallet | 31 |
| Pallet Dimensions (L×W×H) | ~2308 x 1120 x 1249 mm |
| Pieces per 40' HQ Container | 720 |
| Packaging Method | Secure wooden pallet with protective foam, corner guards, and options for individual carton boxing to ensure product safety. |
Flexible Shipping & Delivery Options
We provide comprehensive shipping solutions tailored to your project timeline and budget.
| Logistic Detail | Options Available |
|---|---|
| Shipping Methods | Sea, Air, Rail, Road |
| Supported Incoterms | EXW, FCA, FOB, CFR, CIF, DDU, DDP, DAP |
| Departure Ports | Main ports in China (e.g., Shanghai, Qingdao) |
| Standard Lead Time | 7-15 days |
Q: What warranty protects our investment in these 580W-600W solar panels?A: We provide a comprehensive warranty package for project bankability and peace of mind. Your investment is protected by a 15-year materials and workmanship warranty against manufacturing defects, complemented by an industry-leading 30-year linear power output warranty for predictable, long-term energy production.
Q: How does the warranty ensure a high return on investment?A: Our 30-year linear power warranty is designed to maximize your returns. It guarantees a first-year degradation of no more than 1.0% and a subsequent annual degradation rate of only 0.40%. This superior long-term performance ensures a higher energy yield over the panel's lifespan, directly contributing to a lower Levelized Cost of Energy (LCOE) and a more profitable project.
Q: What kind of after-sales support and services are available for bulk orders?A: We are committed to being a reliable, long-term partner. B2B clients gain access to our professional after-sales technical support team for complete solar system solutions. We also offer flexible OEM/ODM services to accommodate custom requirements for your projects.
Q: What types of projects are the 580W-600W SEA panels best suited for?A: These high-wattage solar panels are engineered for versatility. They are an ideal solution for large-scale deployments, including commercial and industrial (C&I) rooftop systems, utility-scale power plants, and extensive residential installations. Their high power output maximizes energy generation in a limited space, ensuring a lower LCOE for your clients.
Q: How do these panels perform in challenging Southeast Asian climates?A: The panel is specifically designed for robust performance in demanding environments. Its durable construction and certified resistance make it suitable for regions with high humidity, strong winds, high temperatures, and salt mist exposure common in Southeast Asia, ensuring long-term reliability and stable energy production. It is also an excellent choice for applications in deserts or snowy fields.
Q: Does your company provide support for custom system design?A: Yes. As your B2B partner, we provide targeted design recommendations to help optimize your solar system's performance. We understand that every project is unique and can collaborate with you to develop a tailored solution that meets your specific technical requirements and project goals.
Partner with an international high-tech group company and a trusted name in solar module manufacturing since 2009. Our commitment to research and development ensures you receive superior products like the 580W-600W SEA Photovoltaic Solar Panel, engineered for peak performance and reliability.
Proven Manufacturing Power: With over a decade of experience, we operate a 30,000m² factory with an annual production capacity of 500MW. This scale, as part of a larger group, ensures a stable, high-volume supply chain for your large-scale projects.
Dedicated R&D Leadership: Our strong R&D team is the core of our "Quality for Survival" philosophy. We are focused on being "experts in the solar industry," continuously innovating production technologies and developing new products to guarantee stable performance and high efficiency.
Global Expertise, Local Focus: We leverage extensive experience supplying quality solar solutions to over 68 countries, including major markets in Europe, the Americas, and Southeast Asia. As your dedicated partner, we understand the unique requirements of the SEA market.
Customer-Centric Partnership: Our business is guided by a "Customer First, Quality First, Service First" principle. We are committed to providing you with competitively priced, high-performance modules that lower LCOE and maximize your project's return on investment.
