1. Simple and flexible assembly
2. Long cycle life, longer cycle life than other batteries, and higher comprehensive value
3. The battery has good performance, supports rate discharge, and supports fast charging 4. Smaller size, higher performance and higher density than other batteries
5. Green environmental protection products, do not contain any heavy metals and rare metals, non-toxic, non-polluting
6. A wide range of product categories, suitable for use in any industry, can meet most of the requirements
| Quantity: | |
|---|---|
100Ah
Terli
Our range covers from 12V / 24V / 48V / 72V / 96V to 388V.
With a capacity of 50Ah / 100Ah / 200Ah / 400Ah/600Ah.
If the standard batteries don’t fit for your application, then we can assembly a custom made Lithium battery based on your specifications .
Please send us your parameters as dimensions, voltage, capacity and required current and we will search together with you for a solution.
Model |
Helios |
|||
Battery Type |
LiFe PO4 |
|||
Battery Module |
Helios 3 | Helios 5 |
Helios 7 | Helios 10 |
Battery Capacity (Ah) |
50 |
100 |
150 | 202 |
Nominal Battery Energy (kWh) |
3 |
5.1 |
7.6 | 9.6 |
Max Output Power（kW） |
2.4 |
4.8 | 7.2 | 10.3 |
Net Weight（Kg） |
41 |
56 |
81 | 98 |
Dimension (L*W*H mm) |
350*300*180 |
700*580*210 | ||
Working Voltage (V) |
43.2~58.4 | |||
Operating Temp.Range (°C) |
-20~50 |
|||
Calendar Life (Cycles) |
6000@25°C,80%DOD |
|||
Nominal Voltage(V) |
51.2 |
|||
Protection Level |
IP54 |
|||
| Communication | CAN/RS485 |
|||
Certification & Safety Standard |
TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited |
|||
Monitoring & Protection |
BMS |
|||
| HMI | LCD | |||
Physical & Environmental Characteristics
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 700 x 580 x 210 mm (27.6 x 22.8 x 8.3 inches) |
| Net Weight | 56 kg (123.5 lbs) |
| Protection Level | IP54 |
| Operating Temperature | -20°C to 50°C (0°C to 50°C for charging) |
| Storage Temperature | -20°C to 60°C |
System & Safety Features
| Specification | Details |
|---|---|
| Monitoring & Protection | Integrated Battery Management System (BMS) |
| Display | LCD Screen |
| Communication | CAN / RS485 / SMbus (Option) |
| Safety Certifications | TÜV (IEC62619), CE, IEC62040, UN38.3, MSDS, CEC Accredited |

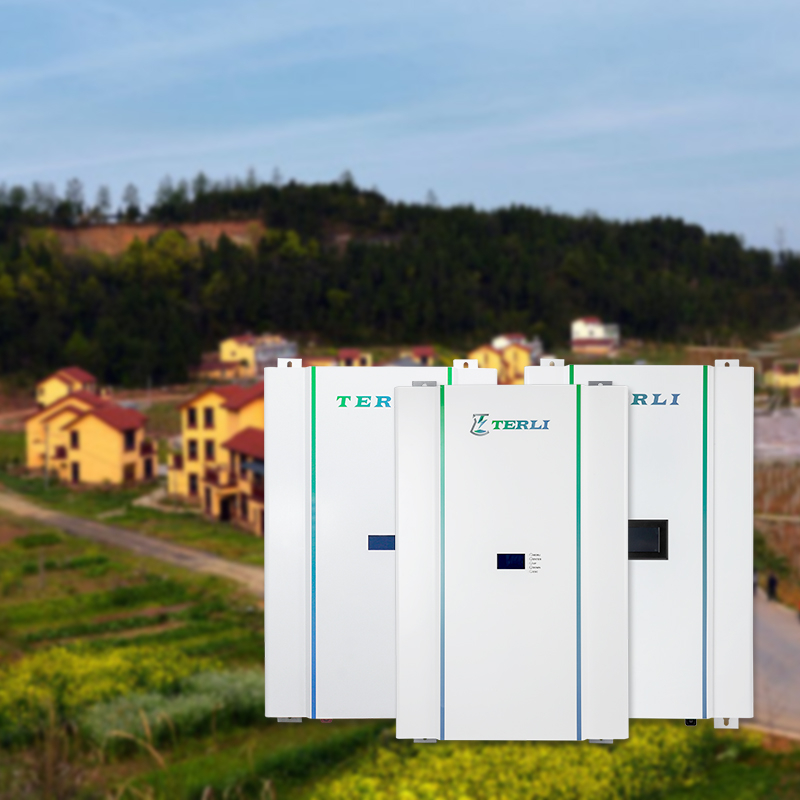

The 5kWh 100ah Lifepo4 Energy High Quality Powerwall is engineered with advanced technology to provide safe, reliable, and long-lasting energy storage for your home or business. It combines superior materials and smart design to deliver performance you can count on.
| Technology | Your Advantage |
|---|---|
| Superior LiFePO4 Chemistry | We use a cobalt-free, environmentally friendly phosphate formula that is inherently stable and non-toxic, ensuring ultimate safety, lower environmental impact, and reduced production costs. |
| Integrated Smart BMS | Your investment is protected by an advanced Battery Management System (BMS) that actively guards against short circuits, reverse polarity, over- and under-voltage, over-current, and high voltage, ensuring maximum reliability. |
| Intelligent Monitoring & Display | Stay in control with the integrated LCD screen for local information and the option of a dedicated app (for iOS & Android) to monitor your system, adjust settings, and track performance remotely anytime, anywhere. |
| Robust & Environmentally Conscious Design | Designed with explosion-proof stainless steel, flame-retardant electrolyte, and a thermal fuse, this battery contains no heavy metals or rare metals, making it non-toxic and non-polluting for a truly green solution. |
| Feature | Your Advantage |
|---|---|
| High Energy Density & Compact Form | A space-saving, wall-mountable design delivers 5.1 kWh of power with 100% Depth of Discharge, maximizing your usable energy and savings while integrating seamlessly into your space. |
| Exceptional Cycle Life & Long Service | Engineered for over 6,000 cycles at 80% DOD, this Powerwall provides a dependable service life of over 10 years, ensuring a long-term, high-value energy solution with a lower rate of capacity loss. |
| Optimized for Diverse Performance | Offers good performance with support for both rate discharge and fast charging capabilities, making it adaptable to various energy demands. |
| Robust Construction & Maintenance-Free | The IP54-rated enclosure is built to resist shock, vibration, chemicals, weather, and heat. Its maintenance-free design with no memory effect ensures reliable operation in various harsh environments without leaks or lost energy capacity. |
| High Integration & Easy Expansion | Features a high-integrated design requiring less installation space. Its flexible assembly and expandability allow you to easily adapt and scale your energy system to meet evolving needs. |
The 5kWh 100ah Lifepo4 Energy High Quality Powerwall is engineered to be the steadfast core of your home's energy system. Built for lasting value and complete peace of mind, it delivers consistent power you can count on day and night.
Exceptional Longevity: Invest with confidence in a battery designed for a 10+ year operational life. With an outstanding cycle life of over 6,000 cycles at 80% Depth of Discharge, your Powerwall guarantees a durable, long-term energy solution with a consistently low rate of capacity loss.
Advanced Safety & Protection: Your safety is paramount. An intelligent internal Battery Management System (BMS) provides comprehensive protection against over-voltage, under-voltage, short circuits, reverse polarity, and over-current, ensuring stable and reliable operation at all times. This high voltage protection enhances overall reliability.
Robust, All-Weather Durability: Built from top-quality materials, this powerwall boasts a stable LiFePO4 chemical structure and has passed rigorous abuse and safety tests—including short-circuit, dropping, nail penetration, impact, crush, and thermal shock. It exhibits no fire or explosion under these conditions. Its strong resistance to shock, vibration, chemicals, weather, and heat ensures performance in any environment, while its robust design prevents potential leaks and lost energy capacity.
Optimized Energy Output: Maximize every ray of sunshine with an impressive 98% efficiency rate and a full 100% Depth of Discharge (DOD). This means you can use all the stored power without heavy metals or memory effect, increasing your energy independence and savings. The battery also supports excellent rate discharge and fast charging capabilities.
What makes the 5kWh 100ah Lifepo4 Energy High Quality Powerwall a safe choice for my home?
Your peace of mind is our priority. This Powerwall is engineered from the ground up for safety, using inherently stable LiFePO4 chemistry with phosphates rather than cobalt to prevent thermal runaway and address environmental concerns. Each unit is built with an explosion-proof stainless steel casing, flame-retardant electrolyte, and a thermal fuse. It has passed extreme abuse tests—including short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge, and over-discharge—with no fire or explosion, ensuring a stable and secure power source for your family. Its IP54 protection level further ensures safety.
How does the system protect my appliances and itself?
A smart, integrated Battery Management System (BMS) is the core of the powerwall’s defenses. This advanced system provides full, automatic protection against common electrical hazards such as over-charging, over-discharging, over-current, short circuits, reverse polarity, and high voltage, guaranteeing high reliability and protecting your valuable electronics. Additionally, it features a natural air cooling method for efficient heat dissipation. The LCD + LED display provides real-time monitoring and control, and communication ports like CAN and RS485 allow seamless integration for easy monitoring.
Is the battery’s quality verified by official standards?
Absolutely. The Powerwall is backed by globally recognized certifications, demonstrating its adherence to the highest safety and quality benchmarks. It proudly holds TÜV (IEC62619), CE, IEC62040, UN38.3, and MSDS certifications, confirming that it has been rigorously tested for performance and safety for residential and commercial use. Our commitment to quality extends through a 37-step production process and 7 quality checks, alongside a 5-6 year warranty, to promise stable quality and high reliability.
The 5kWh 100ah Lifepo4 Energy High Quality Powerwall is engineered for ultimate flexibility, providing reliable power across a wide range of scenarios. Whether you're aiming for energy independence at home or need power for your mobile lifestyle, this battery delivers.
Complete Home Energy Storage: Seamlessly integrate with your solar panels for on-grid, off-grid, or hybrid systems. Store excess solar energy during the day to power your home at night, significantly reducing your reliance on the grid and cutting electricity costs. It's designed to be a reliable and efficient solution for storing energy for later use.
Essential Backup Power: Keep your life running without interruption. Use it as a powerful Uninterruptible Power Supply (UPS) to protect essential home appliances, computer servers, medical instruments, and home office equipment during unexpected power outages. It also supports telecom base stations, CATV systems, and security & electronics.
Power for Your Adventures & Mobility: From RV motorhomes and marine yachts to electric skateboards and golf carts, the Powerwall provides a dependable and long-lasting energy source for all your off-grid power needs, running everything from lights to electronics. It's also suitable for mobile POS and mining lights.
Broad Commercial & Digital Use: This LiFePO4 battery is also the perfect solution for various commercial applications, including solar systems, ESS, and UPS for small businesses. Its versatility extends to digital products like Bluetooth devices, smartwatches, and GPS, making it a comprehensive energy solution for a wide range of needs.
Invest in an energy solution built on a foundation of trust and innovation. With the 5kWh 100ah Lifepo4 Energy High Quality Powerwall, you're not just buying a battery; you're securing your energy independence with a brand chosen by professionals.
Proven by Professionals & Extensive Experience: As an official cooperative supplier to the State Grid, our technology is trusted for the most demanding applications. We bring over 12 years of specialized experience in lithium batteries and a rich background in high-reliability power systems to every product.
Expertly Engineered for Your Safety: Our professional product development team prioritizes your safety. Each powerwall features a smart Battery Management System (BMS) that actively protects against electrical hazards and includes advanced safety materials like explosion-proof stainless steel. Our commitment is reflected in our adherence to scientific study and development.
Superior Energy Storage Solutions: We leverage our expertise to deliver superior energy storage solutions with state-of-the-art production technology and modern management. Enjoy a seamless, maintenance-free experience that maximizes your solar investment and provides dependable backup power. We also offer OEM services and can customize solutions to meet specific requirements.
Uncompromising Quality & Fresh Production: We insist on using only top-quality cells, materials, and accessories, ensuring every battery is a fresh production. Our rigorous, multi-step quality control process, including 37 production steps and 7 quality checks, ensures your Powerwall delivers stable, high-density energy and lasting performance for years to come.
