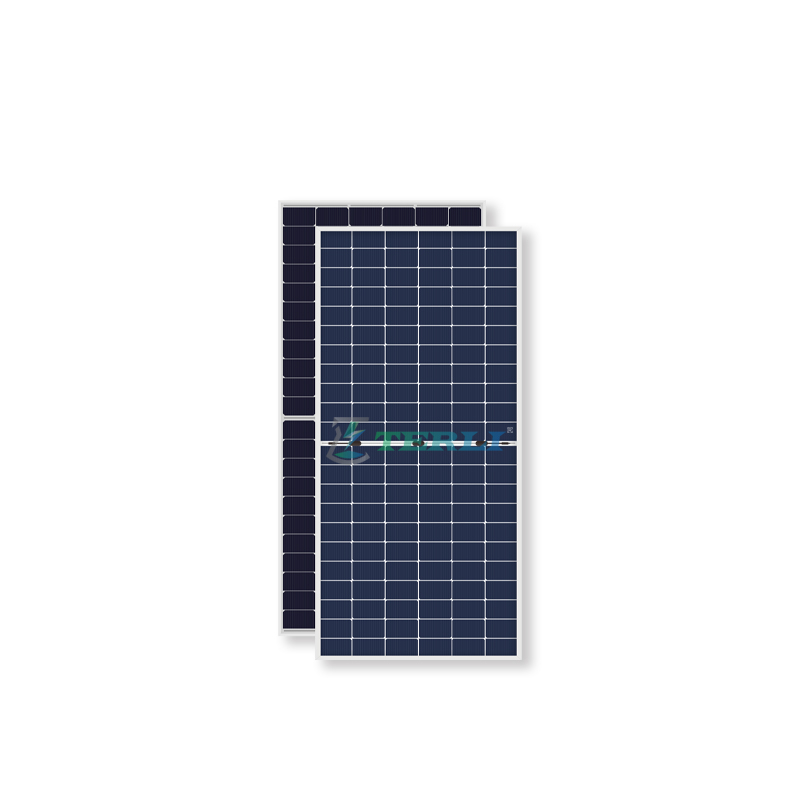

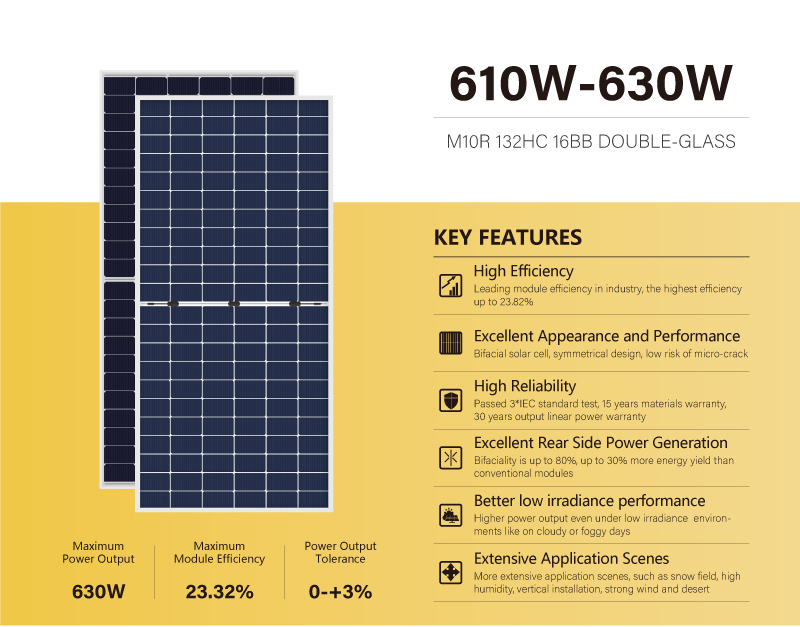

610W-630W Photovoltaic Solar Panel

*Application Scenarios

For large-scale industrial & commercial projects

*610W-630W

M10R 132HC 16BB DOUBLE GLASS

*Maximum Power Output
610W-630W

*Maximum Module Efficiency
23.32%

*Power Output Tolerance
0-+3%

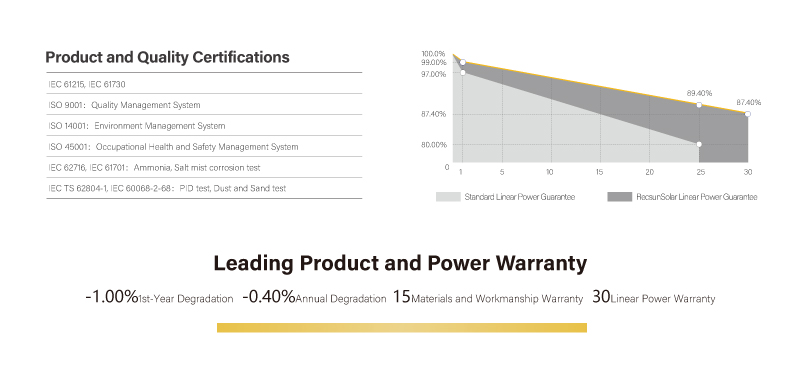

N610630M10RD-132HC solar panel details (1)

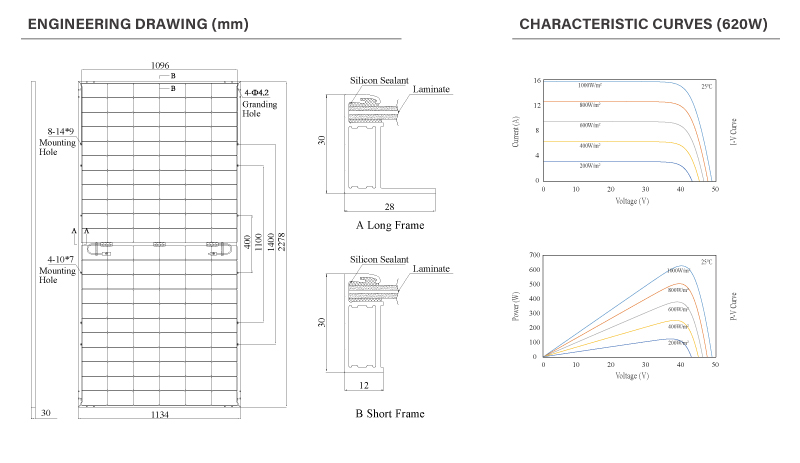

N610630M10RD-132HC solar panel details (3)

ELECTRICAL PARAMETERS (Test Condition is Based on the Front Side)
Module Type	N610H132M10D		N615H132M10RD		N620H132M10RD		N625H132M10RD		N630H132M10RD
Testing Condition	STC	NOTC	STC	NOTC	STC	NOTC	STC	NOTC	STC	NOTC
Nominal Max. Power (Pmax/W)	610	460.12	615	463.89	620	467.67	625	471.44	630	475.21
Open Circuit Voltage (Voc/V)	48.55	45.64	48.72	45.80	48.89	45.95	49.06	46.11	50.97	46.27
Short Circuit Current (Isc/A)	15.83	12.70	15.91	12.76	15.98	12.82	16.05	12.88	16.13	12.94
Maximum Power Voltage (Vmp/V)	40.46	38.03	40.60	38.16	40.74	38.30	40.88	38.43	41.02	38.56
Maximum Power Current (Imp/A)	15.08	12.10	15.15	12.16	15.22	12.21	15.29	12.77	15.36	12.32
Efficiency (%)	22.58%		22.77%		22.53%		23.14%		23.32%
STC: Irradiance = 1000 W/㎡, Cell Temperature = 25℃, AM = 1.5, Average efficiency reduction of 4.5% at 200 W/㎡ NOTC: Irradiance = 800 W/㎡, Ambient Temperature = 20℃, AM = 1.5, Wind Speed = 1 m/s

MECHANICAL PARAMETERS
Cell	182x105mm, 132HC	Connector	MC4 Original / Compatible
Module Size & Weight	2382x1134x30mm, 33.5Kg	Junction Box	IP68, 3 Bypass Diodes
Glass	2.0 mm AR Coated Heat Strengthened Glass	Frame	Anodized Aluminum Alloy (Sliver)
Black Sheet	2.0 mm Ultra-Clear Float Glass	Cable	4mm², Cable Length 300mm (Customized)
