Lithium Storage Batteries Optional;
100Ah/150Ah/200Ah, with 100kwh/300kwh/500kwh capacity;
BMS Communication matched with almost all types of hybrid energy inverters;
Installation is convenient with cable, rack etc Accessories ready in package.
| Quantity: | |
|---|---|
200ah
Terli

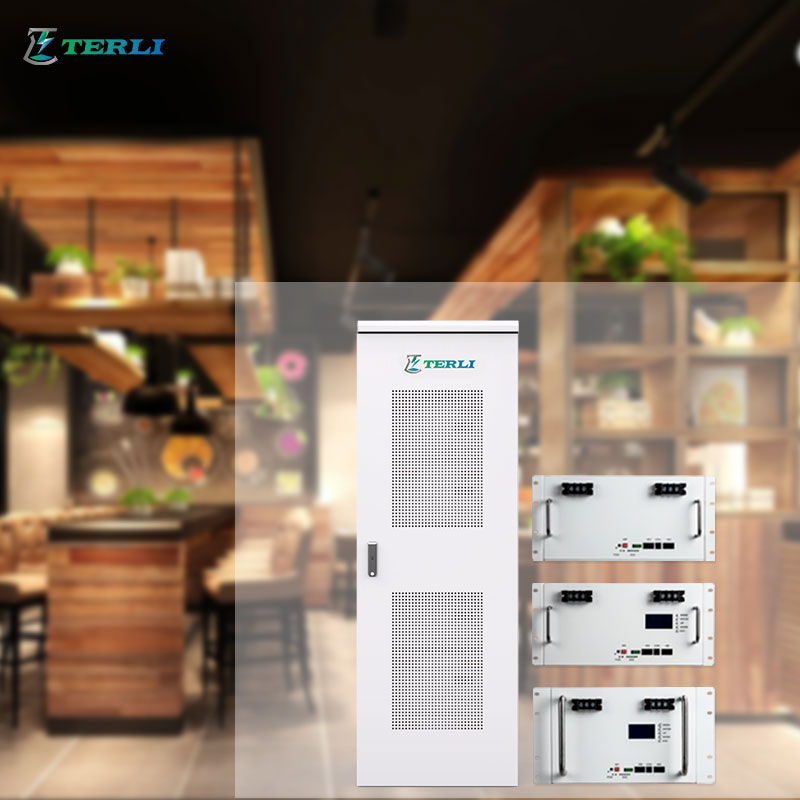

1. This is 48V Rack Battery, with Grade A+ quality LiFePO4 Battery;
2. One battery can be equipped with one set of connection cables. If needs, pls contact us online. Thank you!
3. If buy 4pcs, we can match with 4pcs Battery with 4 set cabels for parallel connections.
4. Before delivery, we will test all Batteries in Terli factory and ensure for high qulity to you!
The Terli 48V backup power system uses Grade A+ LiFePO4 cells in a 19-inch rack-mount form factor. This LiFePO4 rack battery targets residential energy storage from 5.12kWh to 10.24kWh per unit.
| Parameter | Specification |
|---|---|
| Nominal Voltage | 48V (51.2V LiFePO4) |
| Capacity Options | 100Ah / 150Ah / 200Ah |
| Energy per Unit | 5.12kWh / 7.68kWh / 10.24kWh |
| Cell Chemistry | Grade A+ LiFePO4 (3.2V cells) |
| Form Factor | 19-inch rack-mountable |
| Max Stack | Up to 6 units |
| Configuration | Parallel expandable |
| Operating Temperature | -20°C ~ +60°C |
| Noise Level | < 30 dB |
| Communication Ports | RS485, CAN, RS232, Bluetooth, Dry contact |
| Indicators | SOC / ALM / RUN |
| Weight vs. Lead-Acid | ~40% lighter at equivalent capacity |
Each unit ships with connection cables. Connect 4 or more units with parallel cables for higher capacity — no additional hardware required.
For BMS protection features and inverter compatibility, see the next section.
The built-in Smart BMS monitors temperature, current, voltage, SoC, and SoH in real time. This keeps the 48V backup power system operating safely under all load and environmental conditions.
BMS Protection — 9 Layers:
Over-charge protection
Over-discharge protection
Over-current protection
Over-voltage protection
Overload protection
Short circuit protection
High and low temperature protection
Cell balancing system
SoC and SoH continuous tracking
The BMS battery management system self-optimizes continuously, extending service life without manual intervention.
Compatible with 99% of Inverter Brands:
Deye, Growatt, Victron Energy, SMA, Solax Power, GoodWe, Schneider Electric, SOFAR, Megarevo, Luxpowertek, SRNE, ATESS, Hypontech, EPEVER, MUST, Voltronic Power, and more.
Communication runs over RS485, CAN, RS232, and Bluetooth — matching the protocol requirements of these brands out of the box.
The 48V backup power system delivers 5000+ cycles at 80% DoD in home energy storage battery deployments. Select configurations reach 8000 cycles and a 10-year design life.
Key performance metrics:
Low self-discharge — Holds capacity for up to 6 months in storage without maintenance charging.
High-current stability — High flat-voltage discharge and low internal resistance maintain output under heavy loads.
100% depth of discharge — Every rated kWh remains available, unlike lead-acid units that limit usable capacity to 70%.
2x power output — High discharge rate delivers twice the power of an equivalent lead-acid unit, with more than 95% energy capacity maintained.
Fast charge efficiency — Superior charge/discharge efficiency reduces system downtime between charge cycles.
Graphene heat dissipation — Manages thermal buildup during high-rate discharge without increasing noise.
The Smart BMS drives these cycle results by continuously balancing cells and preventing overuse conditions.
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
Q5:Can you give me a discount?
Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.
Q6. What are the advantages that distinguish from others?
1. Official cooperative supplier of China State Grid Official
2. With professional product development team
3. Rich experience in wireless computer room
4. With superior energy storage solution
Q7. How to do if I can’t reach your minimum order quantity?
Do not worry about that. If you can’t reach MOQ for each item, we suggest you refer to our goods in stock and group sourcing items. We also can send you the latest list of the prompt goods for your reference.
Q8: How to make order?
Send us your purchase order by email , or ask us to send you a proforma invoice for your order, or start an order on Alibaba Trade Assurance
