1.Easy installation, cabinet / Wall mounted
2.Built-in automatic protection for over-charge, over-discharge & over-temperature conditions
3.Multiple parallel lines can be used to increase the total capacity . (up to 16 sets)
4. High charge & discharge currents (short charge period)
5. Ultra-high cycling performance
6. Built-in automatic protection for over-charge, over-discharge & over-temperature conditions
| Quantity: | |
|---|---|
100Ah
Terli

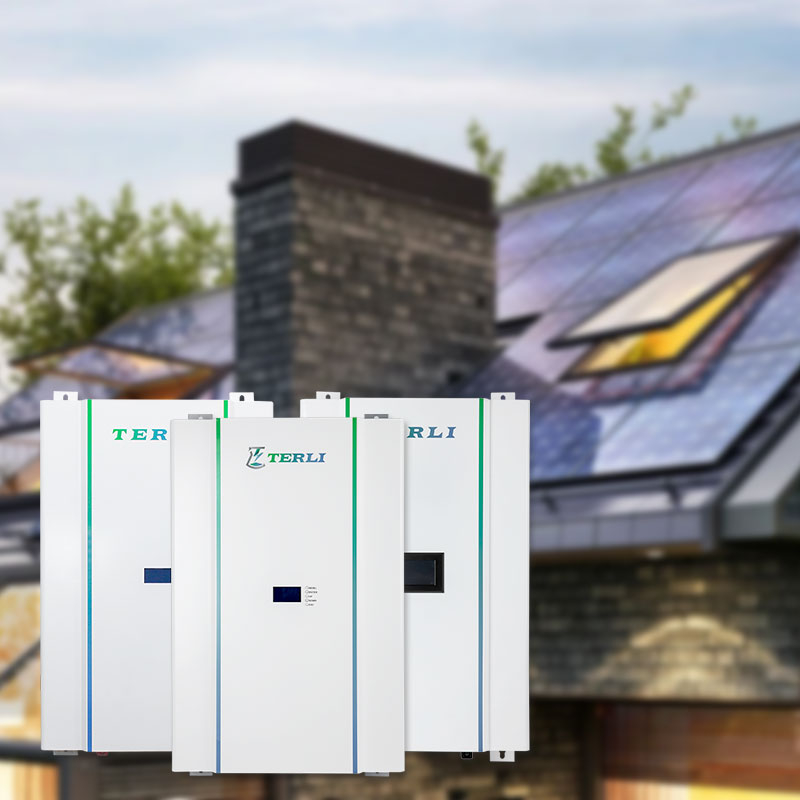

Terli is a leader in providing advanced solar battery solutions for environmentally-conscious homeowners and small business owners. Our 48V 5kWh 100Ah Solar Battery Custom Powerwall combines reliability, durability, and energy efficiency. Designed for easy installation, this wall-mounted system supports parallel operation, making it scalable to meet diverse energy needs. With a life cycle of 6000 cycles and a 10-year warranty, it ensures long-lasting performance. The Smart BMS technology and customization options make it an ideal choice for those seeking sustainable energy independence and reduced carbon footprints.
Our range covers from 12V / 24V / 48V / 72V / 96V to 388V.
With a capacity of 10 Ah / 20Ah / 30Ah / 50Ah / 100Ah / 200Ah / 600Ah.
Model | Helios | |||
Battery Type | LiFe PO4 | |||
Battery Module | Helios 3 | Helios 5 | Helios 7 | Helios 10 |
Battery Capacity (Ah) | 50 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power（kW） | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight（Kg） | 41 | 56 | 81 | 98 |
Dimension (L*W*H mm) | 350*300*180 | 700*580*210 | ||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp.Range (°C) | -20~50 | |||
Calendar Life (Cycles) | 6000@25°C,80%DOD | |||
Nominal Voltage(V) | 51.2 | |||
Protection Level | IP54 | |||
| Communication | CAN/RS485 | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |||
Monitoring & Protection | BMS | |||
| HMI | LCD | |||
Welcome to the future of energy independence with Terli's innovative 48V 5kWh 100Ah Solar Battery Custom Powerwall. As a homeowner or small business owner committed to sustainable living, you'll appreciate the blend of advanced technology, reliability, and customization options this powerwall offers.
High Capacity Storage: With 5kWh of energy storage, you can efficiently harness and utilize solar power, ensuring a steady supply of electricity when you need it most.
Long-Lasting Performance: Enjoy over 6000 cycles at 80% depth of discharge, translating to years of reliable service and a wise long-term investment.
Cutting-Edge Technology: Leveraging advanced LFP prismatic cells and a Smart Battery Management System (BMS), this powerwall maximizes efficiency while prioritizing safety.
Customizable and Expandable: Tailor your energy solution by connecting up to 10 units in parallel, scaling up to 75kWh for 48V systems.
User-Friendly Installation: Wall-mounted design ensures easy setup and space efficiency in your home or business.
Environmentally Conscious: Made without heavy metals, this powerwall aligns with your commitment to reducing carbon footprint.
Rest easy knowing your Terli Powerwall meets rigorous safety and quality standards:
Certifications: CE, UN38.3, MSDS, RoHS, IEC62619
Laboratory Standards: Developed in CNAS accredited laboratory
Warranty: Backed by a 10-year warranty
Durability: IP20 rated for durability in various environments
With over 20 years of experience and 90,000+ satisfied users across 80+ countries, Terli stands at the forefront of energy storage innovation. Our commitment to quality, safety, and customer satisfaction is evident in every aspect of our Custom Powerwall:
Customize your powerwall to match your specific energy needs and aesthetic preferences.
Benefit from our core patents and cutting-edge research, ensuring you receive a product at the pinnacle of energy storage technology.
Join the sustainable energy movement with a product designed to minimize environmental impact.
Enjoy lifetime online support via WhatsApp, WeChat, and email, with video call assistance available whenever you need it.
