150ah
Terli

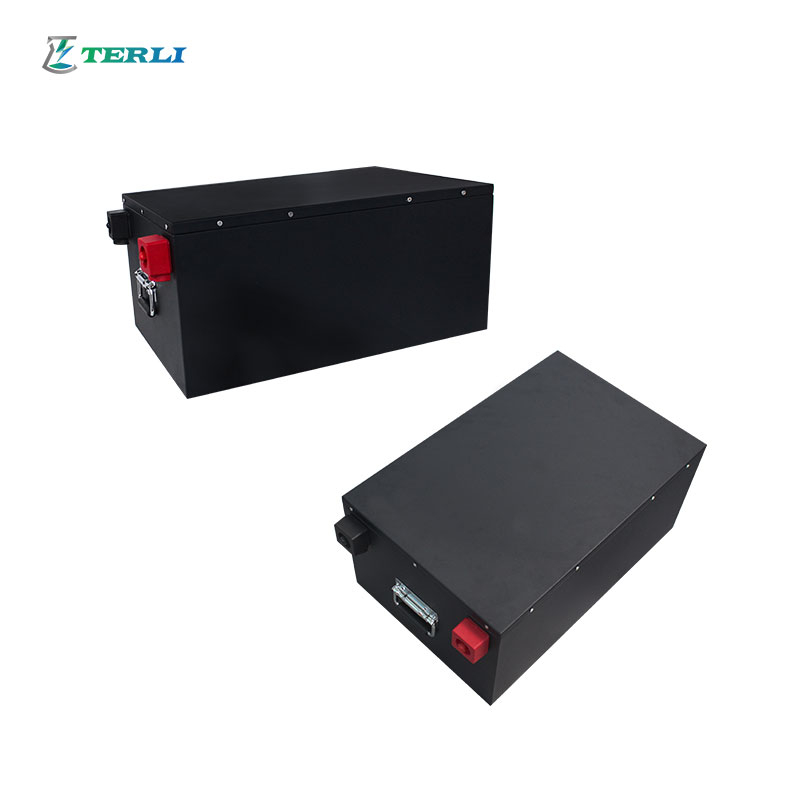

Terli’s Pack Iron High Capacity 48V lithium battery delivers 200Ah capacity (9.6kWh) at 51.2V nominal in an IP54-rated SPCC steel enclosure. The LiFePO4 battery pack supports 100A continuous discharge and up to 350A pulse discharge for under 5 seconds.
This 48V LiFePO4 integrates RS485/RS232 communication, an SOC LED indicator, and an optional LCD display for real-time monitoring. Charge efficiency reaches ≥98%, with self-discharge below 3% per month.
Model |
48V |
Battery Type |
LiFe PO4 |
Battery Module |
TY-48-200 |
Battery Capacity (Ah) |
200AH |
Nominal Battery Energy (kWh) |
9.6 |
Nominal Voltage (V) |
51.2V |
Nominal Output Current (A) |
100 |
Weight (Kg) |
72 |
Dimension (L*W*H mm) |
580*370*230 |
Package Dimension (L*W*H mm) |
620*410*270 |
Working Voltage (V) |
44.8~58.4 |
Operating Temp.Range (°C) |
-20~50 |
Calendar Life (Cycles) |
6000@25°C,80%DOD |
Protection Level |
IP54 |
Terminal |
Anderson Or Other |
Certification & Safety Standard |
TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited |
Monitoring & Protection |
BMS |
| Display | LCD |
Terli’s Pack Iron High Capacity 48V lithium battery runs 6000 cycles at 80% DOD — 20 times longer than a comparable lead acid unit. That cycle depth translates to a design life of ≥10 years, cutting replacement frequency and total cost of ownership for distributors and OEM buyers.
The lithium iron phosphate battery delivers twice the power output of lead acid. At 40% the weight of lead acid, it fits as a direct drop-in replacement with no system redesign. Consistent power delivery holds across the full discharge curve, even at high discharge rates.
LiFePO4 chemistry carries no explosion or combustion risk under overcharge, short circuit, or high-impact conditions. The unit eliminates memory effect and supports unstable partial state of charge (UPSOC) operation. Field recharging at any depth does not degrade long-term capacity.
Terli’s Pack Iron High Capacity 48V lithium battery holds six internationally recognized certifications. These cover regulated entry into EU, US, Australian, and most major export markets.
TUV — Product safety certification for EU and global markets
CE — EU market access for electrical and electronic equipment
EN62619 — Safety requirements for secondary lithium cells in industrial applications, including mobility and telecom
IEC62040 — Compliance standard for UPS and backup power systems
UN38.3 — International transport safety standard for lithium battery shipment by air, sea, and rail
CEC — California Energy Commission compliance for the US market
UN38.3 certification clears the 48V LiFePO4 battery pack for cross-border shipment by any freight mode. This reduces import clearance risk before the product reaches end markets. Both standard and OEM variants carry the same certification scope — see the OEM/ODM section for customization details.
Terli’s Pack Iron High Capacity 48V lithium battery serves six distinct B2B end markets. Each imposes different power, weight, or cycle demands that the 200Ah platform addresses directly.
Wheelchairs and mobility scooters require deep-cycle reliability and weight efficiency. At 40% the weight of lead acid, this unit replaces legacy packs without chassis modification.
Telecom base station backup demands stable standby power across wide temperature swings. The -20°C to 50°C operating range and low self-discharge rate keep standby readiness intact between discharge events.
Solar and wind energy storage relies on sustained deep cycling. The no-memory-effect design supports partial charge cycles from variable renewable sources without capacity loss.
Small UPS systems need fast discharge response and standards compliance. The IEC62040-certified configuration suits both commercial and industrial backup installations.
Golf trolleys and buggies run repeated daily cycles on weight-sensitive frames. The lightweight, high-cycle 48V LiFePO4 design matches daily-use demand without accelerated degradation.
Electric bikes and light EVs require high discharge rate capability and 48V system compatibility. This battery drops into existing 48V drivetrains with no voltage conversion needed.
Terli offers full OEM and ODM services for the Pack Iron High Capacity 48V lithium battery. Customizable options include terminal type, enclosure finish, brand labeling, and packaging — adjustable to fit any product identity or target market.
A 20+ member R&D team works directly with brand partners to configure voltage, capacity, and BMS parameters for the target application. Sample units ship within 7 days of payment confirmation, accelerating validation before mass production commitment.
The factory operates 10 dedicated production lines across a 20,000 sqm facility, with output capacity reaching 500 MWh. This infrastructure supports product line growth from initial OEM batches through large-scale distribution volumes. OEM variants carry the same certification scope as standard units — see the Certifications section for market compliance details.
Terli backs every Pack Iron High Capacity 48V lithium battery order with documented delivery timelines and a structured post-sale response framework. Sample orders ship within 7 days of payment. Bulk orders dispatch within 30 days of deposit. Shipping options include DHL, FedEx, UPS, air freight, sea freight, and railway — matched to the buyer’s logistics requirements.
After-sales support follows a three-stage SLA. Terli acknowledges and diagnoses each issue within 12 hours of notification. Engineers deliver a root-cause solution within 24 hours. Full resolution completes within 1 week. The team proactively contacts customers at month 1 and month 3 post-delivery to confirm field performance.
Warranty coverage includes free repair parts or a replacement unit for quality issues within the warranty period. After the warranty period, Terli still provides solutions and parts at the customer’s cost. Lifelong after-sales consultation applies to all 48V lithium battery units — no expiry on technical support access. A Monday quality meeting incorporates customer-reported issues into engineering review cycles every week.
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
Q5:Can you give me a discount?
Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.
Q6. What are the advantages that distinguish from others?
1. Official cooperative supplier of China State Grid Official
2. With professional product development team
3. Rich experience in wireless computer room
4. With superior energy storage solution
Q7. How to do if I can’t reach your minimum order quantity?
Do not worry about that. If you can’t reach MOQ for each item, we suggest you refer to our goods in stock and group sourcing items. We also can send you the latest list of the prompt goods for your reference.
Q8: How to make order?
Send us your purchase order by email , or ask us to send you a proforma invoice for your order, or start an order on Alibaba Trade Assurance
