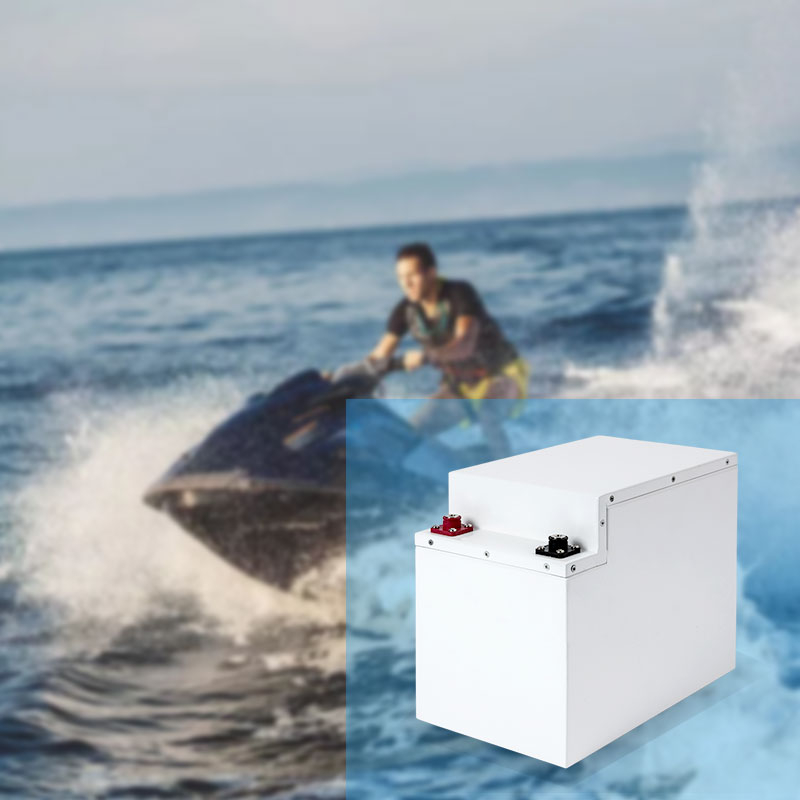

Rechargeable Custom 12V Lithium Battery EV/ Agv

Model	12V
Battery Type	LiFe PO4
Battery Module	TY-12-100	TY-12-150	TY-12-200
Battery Capacity (Ah)	100 AH	150AH	200AH
Nominal Battery Energy (kWh)	1.2	1.8	2.4
Nominal Voltage (V)		12.8V
Nominal Output Current (A)	50	75	100
Weight (Kg)	12.16	15.5	18.9
Dimension (L*W*H mm)	270*170*230	240*205*190	270*180*230
Package Dimension (L*W*H mm)	310*210*270	280*245*230	310*220*280
Working Voltage (V)	11.2-14.6
Operating Temp.Range (°C)	-20~50
Calendar Life (Cycles)	6000@25°C,80%DOD
Protection Level	IP54
Terminal	Anderson Or Other
Certification & Safety Standard	TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited
Monitoring & Protection	BMS

Environmental & Mechanical Specifications

Parameter	Specification
Operating Temp. Range	-20°C to 80°C
Discharge Temperature	-20°C to 60°C (-4°F to 140°F)
Charge Temperature	0°C to 45°C (32°F to 113°F)
Ingress Protection	IP54 / IP65 Options Available
Case Material Options	PVC, Plastic, Metal (e.g., SPCC Steel, Aluminium, Stainless Steel)
Dimensions (approx.)	Highly customizable, examples: 265160H180mm (12kg), 425240322mm (31kg)
Terminals	M8, Anderson, or Custom Request
Certifications	CE, UN38.3, IEC, TUV, MSDS, KC, UL 1642, EN62619, IEC62040, CEC Accredited

Key Features of Terli's Custom 12V Lithium Battery

Terli's custom 12V LiFePO4 batteries are designed with advanced features to deliver superior performance and reliability for your EV and AGV applications. Our focus is on providing high-quality, cost-effective, and environmentally safe power solutions that exceed your expectations.

• Engineered-to-Order Solutions: We offer comprehensive custom design services for your 12V LiFePO4 battery pack, ensuring perfect integration with your device. This includes tailoring dimensions, capacity (from 3Ah to 300Ah+), casing materials (PVC, plastic, or metal), and terminal types to your precise specifications.

• Superior Cycle Life & Performance: Built with Grade-A prismatic LiFePO4 cells, our batteries offer an extended lifespan of 2000 to over 6,000 cycles – up to 10 times longer than traditional lead-acid batteries. Enjoy 100% depth of discharge (DOD) for more usable capacity, a low self-discharge rate (<3% monthly), and efficient 95-100% charge/discharge rates.

• Integrated Smart BMS for Advanced Protection: Each battery features a sophisticated Battery Management System (BMS) that monitors operation and provides multiple layers of protection. This includes safeguards against overcharge, over-discharge, overcurrent, overvoltage, extreme temperatures, and short circuits, ensuring maximum safety and reliability. Cell balancing further extends battery life and consistency.

• Robust & Scalable Design for Demanding Environments: Our batteries are built to withstand challenging conditions, operating effectively in a wide temperature range (-20°C to 80°C). Features like an openable cover for easy maintenance, a fire-resistant cap made of ABS+PBT material for terminal protection, enhanced waterproof IP54/IP65 casing, and a portable handle ensure durability and ease of use. Easily scale your system by connecting batteries in series (up to 4S) or parallel (up to 4P) for increased power or energy.

• Eco-Friendly and Lightweight: LiFePO4 technology provides a clean and green energy solution with no toxic materials, gassing, fumes, or pollution. Our batteries are significantly lighter (up to 70% lighter) and more compact than equivalent lead-acid batteries, facilitating easier integration and improved vehicle efficiency.

Versatile Power for Demanding Applications

Terli's custom 12V rechargeable lithium batteries are engineered for seamless integration into a diverse range of commercial and industrial products. Discover how our reliable LiFePO4 power solutions can enhance your equipment's performance and efficiency. We provide tailored battery packs to meet your specific OEM requirements across multiple sectors.

Our 12V lithium batteries are ideal for:

• Industrial Automation & Robotics: Ensure consistent, reliable operation for your Automated Guided Vehicles (AGVs), forklifts, floor machines, and other robotic systems.

• Light Electric Vehicles (LEVs): Power your next generation of golf carts, electric sport bikes, e-scooters, electric wheelchairs, ATVs, and AGVs with our high-performance battery packs.

• Renewable Energy Storage: Integrate our efficient batteries into your solar power systems, photovoltaic (PV) arrays, wind energy systems, and emergency power systems for dependable energy storage.

• Marine & Recreational Vehicles: Equip your RVs, motorhomes, campers, trailers, sightseeing cars, marine vessels, boats, kayaks, catamarans, and trolling motors with our durable and waterproof batteries.

• Specialized Systems: Power a wide array of equipment, including wireless transmitters, CCTV security systems, LED lights, mobile phone spammers, cell towers, amplifiers, flashlights, drones, medical devices (e.g., ECG monitoring), electric garden sprayers, electric lawn sprayers, handheld electric airless sprayers, electric garden tiller cultivators, and mechanical cotton pickers.

Key Benefits of Terli's Custom 12V Lithium Battery

Elevate your EV and AGV products with a power solution designed for superior performance, reliability, and long-term value. Terli's rechargeable 12V lithium batteries provide the competitive edge your equipment needs, offering a significant upgrade over traditional battery technologies.

• Exceptional Longevity & Cost Savings: Our LiFePO4 batteries offer a long cycle life of 2,000 to over 6,000 cycles, outlasting lead-acid batteries by 6-8 times. This extended lifespan, combined with high efficiency (95-100% charge rate) and 100% Depth of Discharge, significantly reduces replacement and maintenance costs, providing excellent long-term return on investment.

• Lightweight, Compact, and Maintenance-Free: Experience significant design flexibility with batteries that are half the size and weight of lead-acid counterparts. Our compact designs offer higher energy density, and being maintenance-free, they ensure hassle-free operation for the entire product lifespan.

• Uncompromising Safety & Reliability: Built with Grade-A cells and a smart, robust Battery Management System (BMS), our batteries deliver stable performance with multiple protections against overcharging, over-discharging, overcurrent, overvoltage, temperature extremes, and short circuits. The impact-proof design and optional fire-resistant features ensure maximum safety in challenging environments.

• Fully Customizable for Your Needs: As an OEM partner, we provide comprehensive custom-made battery services. This includes tailoring battery capacity, dimensions, casing type, terminals, and integrating advanced functions like LCD displays or communication ports (RS232, RS485, CanBus) to precisely match your application's requirements.

• Built for Demanding Environments: Our batteries are engineered to perform reliably across a wide operating temperature range (-20°C to 80°C) and boast excellent shock resistance. With IP54/IP65 ratings and anti-rust/anti-corrosion properties, they are ideally suited for rugged industrial, outdoor, and marine applications.

Quality Assurance & Global Certifications

At Terli, we engineer every custom 12V lithium battery to the highest quality standards, ensuring your EV and AGV products deliver reliable, safe performance. Our commitment to excellence is verified through rigorous testing and comprehensive certifications, providing you with peace of mind.

• Globally Certified for Market Access: Accelerate your product's entry into international markets with our extensively certified batteries. Our products hold a wide range of global certifications including CE, UN38.3, IEC (like IEC 62133, IEC 62040), TUV, KC, UL 1642, MSDS, EN62619, and CEC Accredited status. These certifications ensure compliance and simplify global transportation logistics by air, sea, or train.

• Superior Component Quality: We build each battery pack using top-tier components, including Grade-A prismatic LiFePO4 cells from reputable manufacturers like CATL. Our advanced Li-ion formulation ensures exceptional thermal stability, heat resistance, and consistent performance, resulting in an impact-proof and highly reliable power solution capable of withstanding heavy external shocks.

• Rigorous Quality Control: Our manufacturing process operates under strict ISO 9001 certification, guaranteeing consistent quality and performance. We enforce a robust quality protocol that includes mandatory pre-production sample approval for every custom design and a final, thorough inspection before shipment, ensuring every battery meets our exacting standards and client expectations.

• Integrated Safety Systems: Every Terli battery features a smart, multi-functional Battery Management System (BMS) and robust casing with IP54 or IP65-rated protection. This integrated system provides crucial, multi-level safeguards against over-voltage, over-current, short circuits, over/under-temperature, and ensures cell balancing, thereby maximizing operational safety, durability, and product longevity.

Your Bespoke 12V Lithium Battery Solution

At Terli, we understand that standard batteries don't meet every OEM requirement. That's why we offer complimentary custom design services for our Rechargeable Custom 12V Lithium Battery EV/ Agv. Our expert engineering team works closely with you to develop a power solution perfectly integrated into your specific application, ensuring optimal performance and efficiency.

1. Collaborative Design Process: Partner with our experienced engineers from the initial stages of your project. We'll work closely to understand your application's specific needs, including device voltage and current (and peak current), desired runtime before recharging, and the intended operating conditions such as temperature range, humidity, and whether it's for indoor or outdoor use.

2. Customized Form & Fit: Your product's design dictates the battery's form factor. We can precisely tailor the battery's size, dimensions, and shape—including ultra-thin, arc, curved, or specific cuboid/round profiles—to fit perfectly within your available space and aesthetic requirements. We also offer customization for casing materials (PVC, plastic, metal) and terminal types.

3. Advanced Functional Integration: Go beyond basic power delivery. We can integrate advanced features directly into your custom battery pack, such as communication ports (RS232, RS485, CanBus) for seamless system integration, and clear LCD displays for real-time State of Charge (SOC) monitoring or other vital battery parameters.

4. OEM & ODM Ready: We welcome your Original Equipment Manufacturer (OEM) and Original Design Manufacturer (ODM) projects. Provide us with your application's detailed specifications, and we will diligently design and build a custom sample for your rigorous testing and validation, ensuring the final product meets and exceeds your exact performance and safety requirements.
