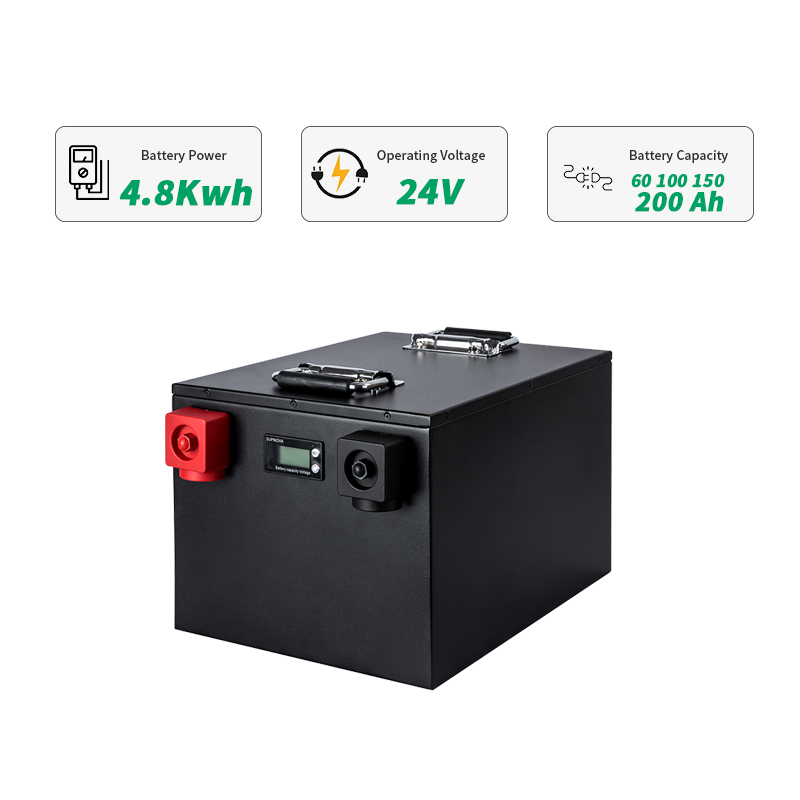

150ah
Key Features：
Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
Wider Temperature Range : -20℃~60℃
Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Applications：
Wheelchairs and scooters
Solar/wind energy storage
Back-up power for small UPS
Golf trolleys & buggies
Electric bikes
Model | 24V | |
Battery Type | LiFe PO4 | |
Battery Module | TY-24-150 | TY-24-200 |
Battery Capacity (Ah) | 150AH | 200AH |
Nominal Battery Energy (kWh) | 3.6 | 4.8 |
Nominal Voltage (V) | 25.6V | 25.6V |
Nominal Output Current (A) | 75 | 100 |
Weight (Kg) | 29.8 | 36 |
Dimension (L*W*H mm) | 430*210*210 | 430*290*210 |
Package Dimension (L*W*H mm) | 470*250*250 | 470*330*330 |
Working Voltage (V) | 22.4~2.9.2 | 44.8~58.4 |
Operating Temp.Range (°C) | -20~50 | |
Calendar Life (Cycles) | 6000@25°C,80%DOD | |
Protection Level | IP54 | |
Terminal | Anderson Or Other | |
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |
Monitoring & Protection | BMS | |
| Display | LCD | |
