CIGS solar panels use a thin-film photovoltaic material. This material mixes copper, indium, gallium, and selenium. CIGS technology is advanced and has high efficiency. It is also flexible and lightweight. Flexible solar panels made with CIGS can fit many surfaces. They are good for lightweight installations. CIGS panels give steady power output. They work well in high temperatures. Silicon panels often change more in tropical places. Many uses benefit from CIGS. This is true where lightweight and flexible solar energy is needed.
CIGS solar panels have a thin, bendy layer made of copper, indium, gallium, and selenium. This makes them light and easy to bend for many surfaces.
These panels work well in hot and changing weather. They keep steady power better than silicon panels in many cases.
CIGS panels can fit on curved roofs, cars, and portable devices. They can be used in places where stiff silicon panels cannot fit.
Right now, CIGS panels cost more and are not as common as silicon panels. But CIGS technology is getting better fast and is becoming more popular.
In the future, better materials, smart ways to make them, and flexible designs will help CIGS panels work better, cost less, and be used more often.
CIGS solar panels use copper indium gallium selenide as their main material. This material is at the center of CIGS technology. These panels are part of the thin-film solar group. CIGS thin-film solar panels are light and can bend. They fit on curved surfaces easily. This makes them different from silicon panels. CIGS solar panels take in sunlight with a very thin layer. This layer is often less than 2 micrometers thick. The thin layer helps turn sunlight into energy using less material. CIGS solar cell efficiency in products is usually between 13% and 18%. In labs, CIGS solar cell efficiency has reached up to 23.35%. These panels work well for both regular and flexible uses.
Note: CIGS thin-film solar panels are picked for projects where weight and flexibility are important, like on vehicles, portable devices, or building walls.
CIGS technology started in the 1970s. Researchers first got 12% efficiency in monocrystalline CIGS solar cells. Over time, scientists made thin-film absorbers and methods better. They found new ways to put down the CIGS layer, like co-evaporation and sputtering. Some big steps include:
Gallium alloying to make efficiency better
Adding sodium to help performance
Using flexible metal and polymer instead of glass
Getting record module efficiencies of 17.6% on glass and 18.6% on flexible steel
CIGS technology is now part of the second generation of thin-film solar cells. It gives a cheaper and more flexible choice than crystalline silicon panels.
CIGS solar panels have many important features:
| Metric | Value/Range | Notes/Context |
|---|---|---|
| Lab Efficiency | Up to 23.35% | Highest efficiencies achieved in controlled lab settings |
| Commercial Efficiency | 13% - 18% | Typical efficiency range for market-available CIGS panels |
| Manufacturing Advantages | Lower energy use, flexible substrates, better heat resistance | Contributes to cost and performance benefits |
| Potential Cost Reduction | Roll-to-roll manufacturing | Expected to lower costs significantly |
CIGS panels are light and can bend, so they are good for special installations.
They work well in hot weather and when some shade is present.
CIGS thin-film solar panels can be used in building walls, electric cars, and portable electronics.
The market for CIGS solar panels is growing. It may reach $31.1 billion by 2033 and grow 10% each year.
CIGS technology keeps getting better. Scientists are working to make it even more efficient and eco-friendly.

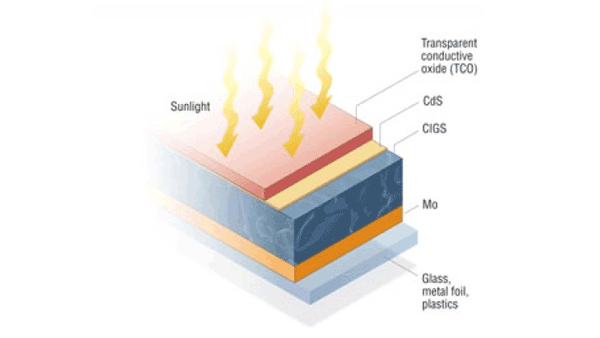

CIGS solar panels have several thin layers. The main layer is copper indium gallium selenide. This layer soaks up sunlight very well. It works even when it is only 1 micrometer thick. There are six layers in a typical panel:
Substrate (glass, plastic, steel, or aluminum)
Molybdenum (Mo) back electrode
Copper indium gallium selenide (CIGS) absorber
Cadmium sulfide (CdS) buffer
Transparent conducting oxide (TCO), often zinc oxide (ZnO)
Encapsulant for protection
Each layer does something special. The substrate holds the panel together. The Mo layer helps collect electrons. The CIGS layer takes in light and makes electricity. The CdS buffer helps the layers work well together. The TCO lets light pass through and moves electricity. Makers use tools like X-ray fluorescence to check each layer’s thickness. This helps make the panels work better and last longer.
Note: The type of substrate changes how heavy or bendy the panel is. Polyimide foil is light and lets the panel bend.
Making CIGS solar cells uses special steps. Two main ways are used: co-evaporation and selenization. In co-evaporation, the metals are heated in a vacuum. They land on the substrate and make a smooth layer. Selenization starts with a metal layer. Then, the panel meets selenium vapor, which forms the CIGS layer.
Both ways can make great panels. Co-evaporation has made some of the most efficient panels. Selenization has also reached high efficiency, like Solar Frontier’s 20.9%. Selenization is good for making big panels quickly. The process must keep the right mix of copper, indium, and gallium. Small changes can change how much power the panel makes. Keeping the mix even helps the panel work well everywhere.
New ideas help CIGS panels work better and bend more. Scientists change the gallium amount to tune the band gap. This helps the panel catch more sunlight and lose less energy. Adding sodium from the substrate or by special steps helps more charges move and fixes tiny problems.
Flexible CIGS panels use polyimide foil as the base. These panels are light and can bend. They are good for gadgets and curved places. Some flexible panels have reached over 22% efficiency. Scientists use special tools to check each layer’s quality. These checks help make more panels that still work well.
| Parameter | Value / Range | Notes |
|---|---|---|
| Maximum simulated efficiency | 31.15% | With special back surface field layer at 1.0 μm absorber thickness. |
| Efficiency (flexible CIGS) | 22.2% | Achieved on polyimide foil substrates. |
| Absorber thickness | Optimal at ~1.0 μm | Balances absorption and recombination for best efficiency. |
| Weight advantage | Lightweight substrates | Enables flexible and portable solar panels. |

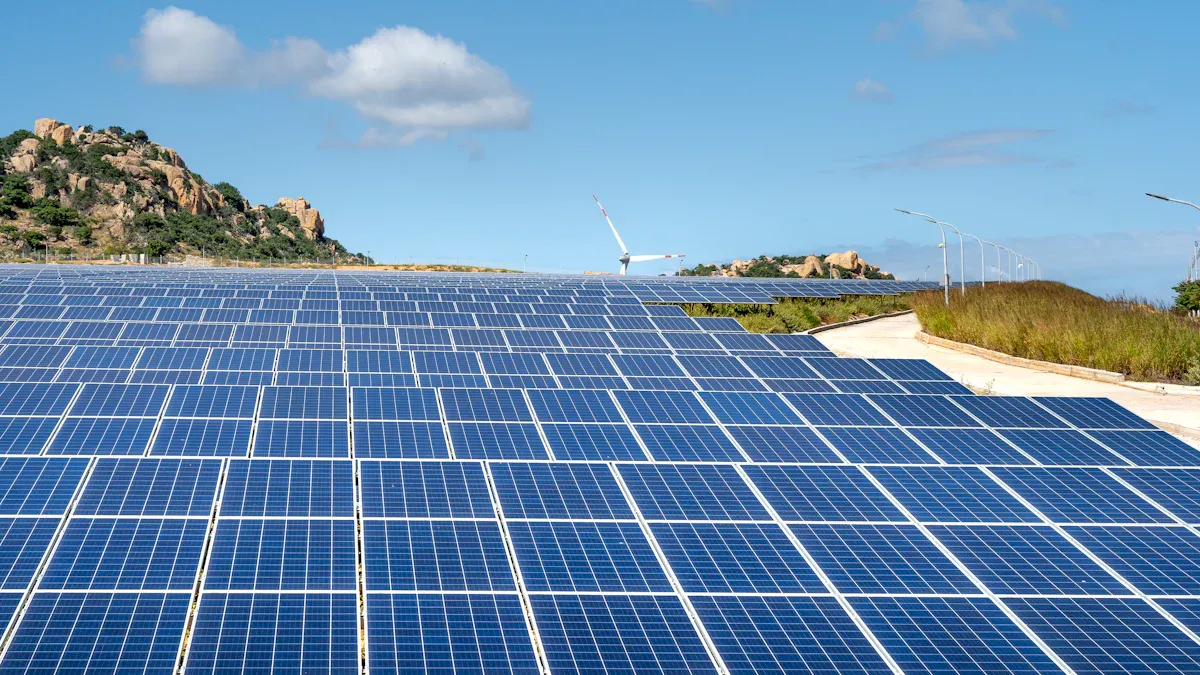

Image Source: pexels
CIGS thin-film solar panels work well in many places. Their best efficiency is 23.4%. Monocrystalline silicon panels can reach 26.7%. Polycrystalline silicon panels can go up to 24.4%. Most CIGS panels you can buy are between 13% and 18% efficient. In labs, CIGS panels can do even better.
CIGS panels work in both sunny and cloudy weather. They keep making power when sunlight changes. CIGS cells have high short-circuit current density. This helps them work in different light levels. Their fill factor and open-circuit voltage stay steady, even in low light. So, CIGS panels lose less power on cloudy days than other thin-film panels.
CIGS panels also lose less power in hot weather. When it gets 10 K hotter, CIGS panels make about 1% more energy than silicon panels. In hot, sunny places like Kuwait, CIGS panels can do 1.8% better than silicon panels. This makes CIGS a good pick for hot rooftops.
| Metric | CIGS Thin-Film Solar Panels | Monocrystalline Silicon Panels | Polycrystalline Silicon Panels |
|---|---|---|---|
| Highest Recorded Efficiency | 23.4% | 26.7% | 24.4% |
| Temperature Coefficient | -0.36%/ºC | -0.446%/ºC | -0.387%/ºC |
| Cost per Watt | $0.60/W | $0.16 - $0.46/W | $0.24/W |
CIGS thin-film solar panels keep working well in changing weather and heat. This makes them a good choice for many solar projects.
CIGS thin-film solar panels cost about $0.60 for each watt. This is more than most silicon panels, which cost $0.16 to $0.46 per watt. Silicon panels are the most common in the solar market. CIGS panels only have about 2% of the world market. Even though CIGS is not as popular, it keeps getting better.

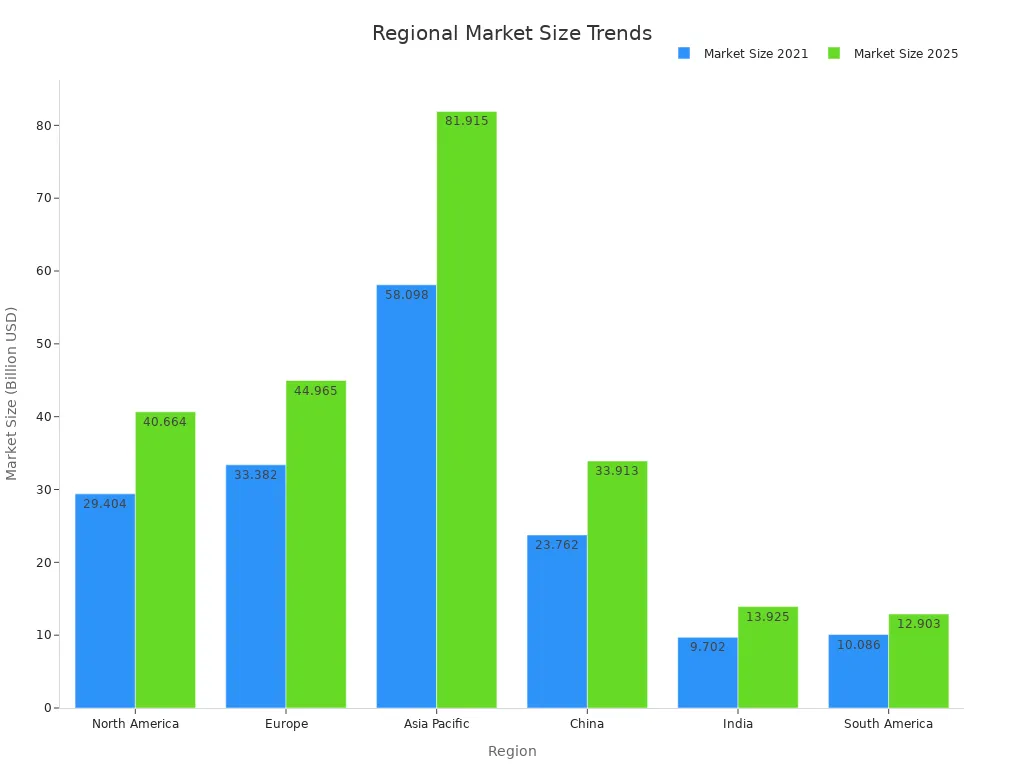

The CIGS solar panel market is growing. Asia-Pacific is the biggest market. North America and Europe are also growing fast. More people want light and bendy solar panels. CIGS panels may become more popular because of this.
New ways to make CIGS panels have made them over 20% more efficient.
The world market for CIGS panels is worth about $3.89 billion in 2024.
Asia-Pacific has the biggest share because of lower costs and more solar use.
CIGS panels are known for being light and bendy. Makers can put CIGS thin-film solar panels on plastic, glass, or metal. This lets the panels bend and fit on curved things. Flexible CIGS panels can wrap around cars, roofs, or small devices.
| Technology | Durability Characteristics | Flexibility Characteristics |
|---|---|---|
| CIGS | Needs special films to keep out water; can get damaged by humidity if not protected. | Can be made on flexible plastic; can be as bendy as amorphous silicon, depending on how they are made. |
| Amorphous Silicon | Very tough; if damaged, only the broken part stops working. | Super flexible; can roll up or bend around small things. |
| Crystalline Silicon | Breaks more easily; new designs help, but it can still crack. | Can bend a little around big curves, but not as much as CIGS or amorphous silicon. |
CIGS panels do not crack as easily as crystalline silicon panels. This means they do not lose as much power from small hits or bending. Amorphous silicon panels bend the most, but CIGS panels are a good mix of bendy and strong.
Tip: Flexible CIGS thin-film solar panels are great for places where stiff panels will not fit.
CIGS thin-film solar panels give steady power in many real-life places. They work well in both bright and dim sunlight. Their power stays strong in hot weather because of a better temperature coefficient. CIGS panels lose less power as it gets hotter. This makes them smart for rooftops and hot places.
CIGS panels make 1% more energy than silicon panels for every 10 K rise in temperature.
In strong sun and heat, CIGS panels can make up to 1.8% more energy than silicon panels.
CIGS panels keep their fill factor and voltage steady, even when clouds pass or light drops.
In low light, CIGS panels might lose more voltage than silicon, but new materials help fix this.
New ideas, like bandgap tuning and adding sodium, make CIGS panels better and more stable. Changing the bandgap between 1.00 and 1.11 eV helps CIGS panels catch more sunlight. Adding sodium to the back contact makes the absorber layer better and stronger. These changes help CIGS panels keep high power and last longer.
| Innovation Aspect | Quantitative Evidence / Results |
|---|---|
| Bandgap tuning | Bandgap can be set between 1.00 and 1.11 eV by changing how the panel is made. |
| Sodium incorporation | Sodium in the back contact makes the absorber better and the device more stable. |
| Surface morphology | Smooth surfaces after making the panel show the absorber layer is high quality. |
| Buffer layer comparison | CdS buffer panels make more power, but In2S3 buffers are safer and make almost no waste. |
| Photovoltaic performance | CdS-based panels work better than In2S3-based ones, but both do better than other CIGS panels in studies. |
| Process scalability | Making panels on flexible glass is easy to scale and saves money, so bandgap tuning can be used in real products. |
CIGS thin-film solar panels are light, bendy, and make good power. They work in many places, like rooftops and portable gadgets. Their steady power and new material ideas make them a strong choice for solar energy in the future.
Flexible solar panels have changed how buildings use solar energy. These panels are part of building-integrated photovoltaics, like solar shingles and facades. Builders can put flexible PV modules on curved roofs or walls. This makes them great for new building designs. The panels are light, so they are easy to put up. They do not need heavy frames. Many city buildings use flexible solar panels to make power and look modern. These panels help lower energy bills and use less grid electricity.
Flexible solar panels work well on surfaces that are not flat. People use them on RVs, boats, and tents. The panels can bend up to 30 degrees to fit curved roofs. Flexible PV modules are light, so they are easy to carry and set up. Many campers and hikers use these panels outdoors. Some models weigh only 4 to 10 pounds, much less than regular panels. Users can stick them on with glue, Velcro, or magnets. This makes setup fast and easy. The panels have coatings that protect them from weather, so they last longer outside. These features make flexible solar panels a top choice for portable gear and off-grid trips.
Flexible PV modules are used in utility and special projects too. Some solar farms use these panels for quick setup on bumpy land. Electric vehicles and boats use flexible solar panels to charge batteries while moving. Wearable devices and portable electronics also use these panels. Their light and bendy shape lets people make cool things, like solar backpacks or curved chargers. CIGS panels are used in solar-powered vehicles and building walls. Flexible solar panels help give power where stiff panels cannot go. Their flexibility helps many new uses in solar technology.
Note: Real-world tests show flexible solar panels work well in all kinds of weather. They lose less power in high humidity and can handle dust and rain. This makes them a good pick for many uses.
| Application Type | Key Benefit | Example Use Case |
|---|---|---|
| Building-Integrated | Seamless design, lightweight | Solar shingles, facades |
| Portable/Curved Surfaces | Easy install, flexible | RVs, boats, tents |
| Utility/Specialized | Adaptable, creative uses | Vehicles, wearables |
Scientists are working to make CIGS solar panels better. New materials and designs help the panels work more efficiently. For example, using silver alloying and special gallium grading has reached 23.6% efficiency. Some labs have even measured up to 23.75% efficiency. These new treatments help the absorber layer work better and lose less energy. This means CIGS technology can keep improving.
Engineers want the panels to last longer and be easier to make. They use special tools to check each layer and lower resistance losses. Monolithic series interconnections help the panels make higher voltage and lose less heat. These changes help solar panels work better in real life.
Robots and smart technology are changing how CIGS panels are made. Many factories use robots and AI to make panels faster and with fewer mistakes. Smart solar systems use sensors and the Internet of Things (IoT) to watch the panels in real time. These systems help find problems early and keep solar energy working well.
Thin-film and flexible CIGS panels are light and fit many places.
AI and IoT let smart solar systems use real-time data.
Smart panels will likely work with home automation by 2025.
The future for CIGS solar panels looks good. Better efficiency, lower costs, and new uses help the market grow. Building-integrated photovoltaics, like solar shingles and facades, use CIGS to collect solar energy in new ways. More people want clean energy, and governments support solar projects with helpful rules.
The market grows as CIGS technology gets better.
Flexible CIGS panels bring new uses in buildings and portable devices.
Automation and AI make solar energy cheaper and more reliable.
Connecting with smart grids and storage makes CIGS panels more valuable.
These trends show CIGS solar panels will be more important in the future. As technology gets better, CIGS panels will be more efficient, flexible, and affordable.
CIGS solar panels are thin and can bend. Silicon panels are stiff and heavier. CIGS panels work well on curved things or small gadgets. They are efficient and good for special uses. Silicon panels cost less for each watt. They are the most used type in the world. The CIGS market is growing fast. It could be worth $7.93 billion by 2033.
| Aspect | CIGS Market Outlook |
|---|---|
| 2024 Market Value | $3.21 billion |
| 2033 Projection | $7.93 billion |
| Key Growth Drivers | Efficiency, flexibility, new applications |
People should pick the right panel for their needs. Scientists keep working to make CIGS panels better for the future.
CIGS panels have a thin layer made of copper, indium, gallium, and selenium. Silicon panels use thick pieces of silicon. CIGS panels are much lighter than silicon panels. They can bend and fit on many shapes. Silicon panels are heavier and do not bend.
Yes, CIGS panels can bend to fit curved roofs or vehicles. They also work on portable devices. This makes them great for special projects that need flexible panels.
Most CIGS solar panels work for 20 to 25 years. If you take good care of them, they can last even longer. Many companies give warranties to help you feel safe.
CIGS panels use less material than silicon panels. They also need less energy to make. Many companies recycle old panels to cut down on waste. This helps protect the environment.
Yes! CIGS panels keep making power when it is hot. They lose less energy as it gets warmer. This makes them a smart pick for sunny places.
Tip: Always read the panel’s warranty and care guide for best results.
