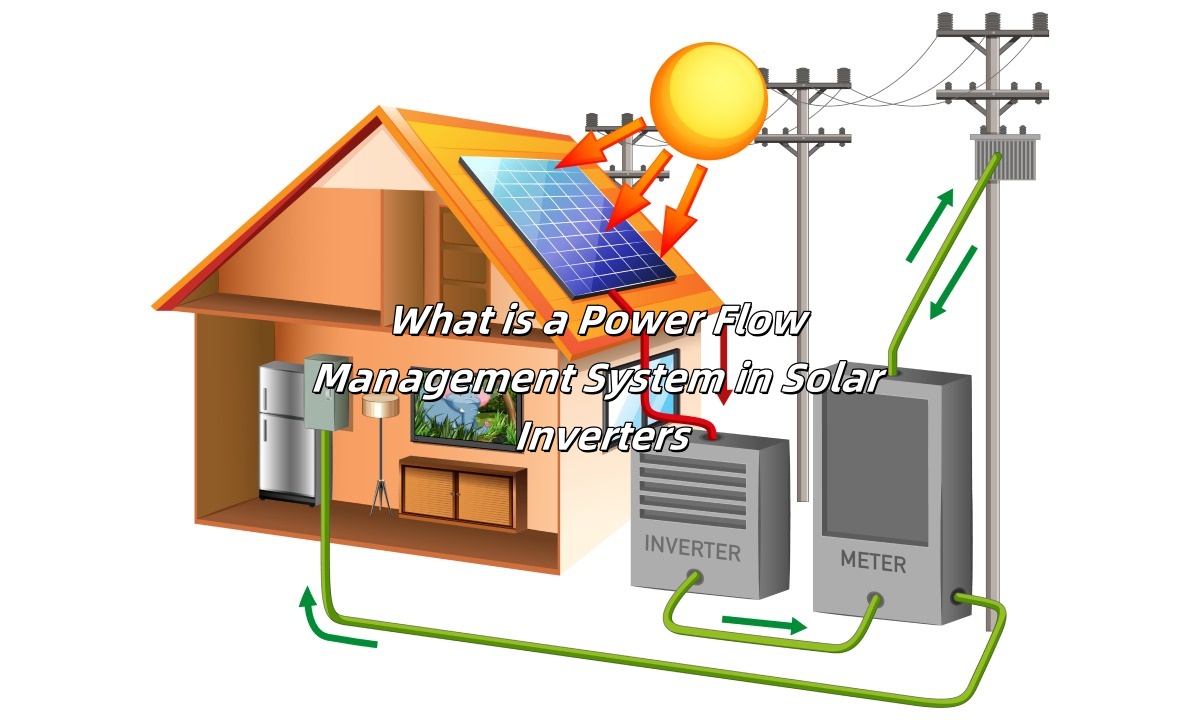

A power flow management system in solar inverters controls how electricity moves. It manages energy between solar panels, batteries, the grid, and home devices. The main goal is to use energy well and keep the system steady. When used in a solar power system, it makes energy use better. It helps support grid voltage and frequency. It also lets people watch the system in real time. This system helps lower carbon emissions. It also makes smart home use easier.
A power flow management system controls how electricity moves. It works between solar panels, batteries, the grid, and home devices. This helps use energy well and keeps the system steady.
It manages when batteries charge or give out power. It sends extra energy to the grid. It gives power to important devices first when energy is low.
The system helps save money by storing extra solar energy. It uses this energy when you need it. It also helps the grid stay steady and cuts down carbon emissions.
Setting up and taking care of these systems can be hard and expensive. Talking to experts makes sure it is safe, the right size, and works well.
Picking a system with real-time monitoring and load management is smart. Safety compliance is important too. These features make solar power strong, efficient, and ready for the future.
A power flow management system in solar inverters acts like a control center for electricity. It tells energy from solar panels where to go. This energy can move to batteries, home devices, or the grid. The main job is to keep energy use steady and not wasteful.
The power flow management system in solar inverters has some main jobs:
It shares energy between solar panels, batteries, home loads, and the grid to meet what is needed.
It controls battery charging and discharging. It stores extra energy and gives power when solar panels make less.
It lets energy move both ways with the grid. Extra energy can go back to the grid for net metering.
It makes sure important devices get power first. This helps during outages or when many things need power.
It checks energy sources all the time to work better and waste less.
It watches the system for problems and stops electrical issues.
By doing these things, the power flow management system in solar inverters helps the solar power system work well and stay safe.
Note: The main goal is to use all the energy made in the best way. This helps stop waste and keeps things running smoothly.
The power flow management system in solar inverters uses steps to control energy.
It always checks how much energy solar panels make and how much the home needs.
The system picks where to send the energy. It can power home devices, charge batteries, or send extra energy to the grid.
If there is more energy than needed, it charges the batteries. If the home needs more than the solar panels give, it uses the batteries to help.
The system lets energy move both ways with the grid. Extra energy can go to the grid and help lower bills with net metering.
It always puts important devices first. These get power even if there is an outage.
The system keeps checking for problems and protects against too much power or voltage changes.
The power flow management system in solar inverters uses these steps to keep energy use smart and steady. It helps the solar power inverter work well and makes sure energy is not wasted.
Image Source: unsplash
A power flow management system moves energy between solar panels, batteries, the grid, and home devices. The system checks how much power each part needs. It then decides where to send the electricity. In a solar inverter setup, the system acts as the main manager. It watches how much power is needed and checks battery charge levels. When solar panels make extra energy, the system charges the batteries or sends power to the grid. If there is not enough solar power, the system uses both storage and the grid to help. This keeps the lights on and stops energy from being wasted. The system uses special parts to handle fast changes in power and keep voltage steady.
Battery management is an important job for the power flow management system. The system uses smart tools to control battery charging and discharging. It charges batteries when there is extra solar power. It gives power from batteries when the sun is not shining. The system matches battery voltage with solar panel voltage. This helps move energy better and keeps batteries safe. The system checks battery health and temperature. It sends alerts if there are problems and cools batteries when needed. By learning how much energy a home uses and watching the weather, the system plans when to charge or use the battery. This saves money and keeps the system working well.
Smart battery management systems help charge batteries the best way.
Predictive maintenance alerts help stop problems before they happen.
Temperature control keeps batteries from getting too hot.
Load prioritization gives power to the most important devices first.
Weather and usage patterns help plan for backup power.
Smart energy management lets charging happen when power is cheap and use power when it costs more.
Remote monitoring gives updates and helps with fixing problems.
Grid interaction lets the solar inverter work with the main power grid. The system changes solar electricity to match the grid. It allows power to move both ways. Extra solar energy can go to the grid, and power can come in when solar is low. The system checks voltage, frequency, and phase to stay in sync with the grid. It disconnects during outages to keep things safe. The system helps the grid by managing real and reactive power. It can talk to the grid in real time and follow commands from utility companies. This keeps power quality high and helps the whole energy network.
| Feature/Capability | Description |
|---|---|
| Bidirectional Power Flow | Handles sending and getting power between solar panels and the grid. |
| Grid Synchronization | Keeps voltage and frequency the same as the grid. |
| Anti-Islanding Protection | Disconnects during outages to keep everyone safe. |
| Power Quality Monitoring | Filters out bad signals and keeps power clean. |
| Reactive Power Compensation | Helps keep the grid steady. |
| Smart Grid Communication | Shares data and follows grid commands. |
| Advanced Algorithms | Changes output based on what the grid needs. |
| Remote Monitoring & Control | Lets people track and change things from far away. |
| AI and Machine Learning | Makes the system smarter and finds problems early. |
| Compliance & Safety Standards | Follows rules to keep the grid safe and working well. |
The power flow management system picks which devices get power first. It checks how much energy is there and how full the batteries are. When there is not much solar power or the battery is low, only the most important devices get power. As more energy comes in, the system turns on more devices. It uses rules to connect loads one at a time. Critical loads, like lights or medical equipment, get power first. Less important devices wait until there is enough power. This keeps important things running and makes people happier at home.
| Load Category | Priority Level | Management Method | Outcome (Load Satisfaction %) |
|---|---|---|---|
| Critical Loads (CLs) | High | Run at set times | Up to 93.8% satisfaction |
| Uncritical Loads | Low | Used when there is lots of solar power | Up to 74.2% satisfaction |
Energy optimization means using every bit of energy from the solar system. The power flow management system uses smart controls like Maximum Power Point Tracking (MPPT) to get the most from solar power. It uses special inverter designs to lose less energy when changing DC to AC power. The system also uses cooling to keep parts working well. Some systems use new materials to work better and handle heat. By working with the grid and storage, the system keeps everything running smoothly. Companies use new ideas like AI-powered controls and module-level optimizers to get more energy. The system balances high efficiency, reliability, and cost to make sure the solar inverter works its best and wastes less energy.
System monitoring and protection keep the solar inverter safe and working well. The power flow management system checks for problems all the time. It uses anti-islanding protection to shut down safely during grid outages. The system can talk to other parts of the solar setup and the grid, sharing data in real time. Remote monitoring lets users and service teams check the system from anywhere. The system sends alarms and warnings if something goes wrong. It also controls voltage and frequency to help the grid stay steady. MPPT algorithms help get the most power from the solar panels, even when the weather changes. These features protect the system and help it last longer.
48V 100Ah Solar Power Storage System Pylontech Battery
Power flow management systems can be hard to set up. Installers must have special training to do the job right. When solar panels work with batteries, electric vehicles, and smart grids, things get even harder. Companies need strong teams for sales, design, and setup. New cooling systems, like hybrid air-liquid cooling, help the system work better. But these cooling systems need special care and skills to fix. All these things make it harder to install and take care of the system.
Note: If a system is more complex, it can take longer to install. There is also a bigger chance for mistakes to happen.
Making a power flow management system bigger is not easy. Adding more solar panels, batteries, or loads may need new parts or software. Each new part means more planning is needed. Big systems need better teamwork and stronger ways for devices to talk to each other. If the system is not planned well, it may not work as well when it gets bigger.
A power flow management system must act fast when energy changes. If it is slow, power can stop or energy can be wasted. Fast sensors and smart controls help the system react quickly. But if a relay or sensor breaks, the system can slow down. Quick action is important to keep the system steady and working well.
Sometimes, different brands of solar inverters and power flow management systems do not work well together. There are not enough standard rules to help devices connect. It is also hard to manage different battery types and power levels. New battery types and changing rules mean systems must change fast. Some companies use smart designs and AI to help things work together. But not all systems can connect easily.
Power flow management systems can cost a lot of money. Special features, cooling systems, and skilled workers make the price go up. Fixing and upgrading the system also costs more. Problems like EEPROM or relay failures may seem cheap to fix. But losing power or having downtime can cost much more. Big systems with many parts need more money for setup and care.
Modern systems need monitoring tools to work well. These tools watch how the system works and help fix problems. They also let people control the system from far away. Real-time data helps fix things fast and use energy better. But if the monitoring system stops working, users may not see problems or lose control. Good communication tools, like Modbus and SunSpec, are needed for smooth work. If the monitoring fails, the whole system can have trouble.
Tip: Checking and updating monitoring systems often helps keep the power flow management system working well.
Picking the right power flow management system starts with checking your solar inverter setup. Designers use different ways to find out what the system needs. They do load flow analysis to look at voltage, current, and power factor in many places. This shows how energy moves and where things can get better. Voltage stability studies help see how the system deals with changes in solar power. These studies also help plan for devices that keep voltage steady. Reactive power injection algorithms help control voltage and keep power quality good. Protection functions, like overcurrent and frequency checks, keep the system safe. Many experts use real-time data from sensors to watch how sunlight and energy use change during the day. These steps help decide if a power flow management system is needed and what features it should have.
Tip: Using detailed models and real-time data helps designers make smart choices for energy management and safety.
Talking to a professional gives many benefits when picking and setting up a power flow management system. Professionals know the newest codes and standards, like NEC 2023 Article 705, UL 1747, and IEEE 1547. They make sure the system follows all safety and grid rules. Experts also protect against cyber threats by picking safe ways to talk and keeping equipment safe. They help choose the right size for solar and battery systems to fit energy needs and money plans. Professionals can connect solar panels, batteries, and generators so everything works together. They use microgrid controllers for real-time control, which makes things safer and more reliable. Their skills help fix technical problems and make sure the system works well and follows all rules.
Professionals make sure the system follows codes and is safe.
They protect the system from cyber attacks.
Experts size and connect all parts for the best results.
They make the system more reliable and help meet money goals.
Many power flow management systems have advanced features for solar inverters. Hybrid inverter software can manage and pick which loads get power, even smart EV chargers, to save energy during busy times. Some systems use time-of-use optimization, storing energy when prices are low and using it when prices are high. Top models, like the RAGGIE All-in-One Solar System, have real-time monitoring, remote control, and automatic fault detection. These systems often work with Lithium Ferro Phosphate (LFP) batteries and are very efficient, usually between 90% and 98%. Most top systems follow global safety rules and can be made bigger in the future. The table below shows some key features:
| Feature | Benefit |
|---|---|
| Load Management | Gives power to important devices first |
| TOU Optimization | Helps lower energy costs |
| Real-Time Monitoring | Watches system health and performance |
| Battery Integration | Makes storage and backup better |
| High Efficiency | Saves more energy |
| Safety Compliance | Follows global safety rules |
Note: Picking a system with these features helps make sure your solar power is reliable, efficient, and ready for the future.
A power flow management system helps move energy between solar panels, batteries, and the grid. The table below lists what it does and some problems it can have:
| Consideration | Description |
|---|---|
| Core Functions | Makes energy use better, manages batteries, helps the grid, keeps things safe. |
| Limitations | Hard to set up, costs more, may not work with all brands, needs to be watched. |
PFMS helps use energy better and keeps the grid steady, but it can be expensive and tricky to install. To get the best system, people should talk to a professional for advice and setup.
A power flow management system helps control how electricity moves. It manages energy between solar panels, batteries, the grid, and home devices. This helps use energy better and keeps the system safe.
Not every system works with all inverters. Some brands or models may not connect well together. People should check if things match before buying or installing a new system.
The system sends power to where it is needed most. It stores extra energy in batteries for later use. When solar power is low, it uses the stored energy. This helps lower energy bills and stops waste.
If the monitoring system stops working, people may not see problems. They also might not be able to control the system. Checking and updating the system often helps keep things running well.
Most systems need regular checks and updates to work well. Some parts, like sensors or cooling systems, might need fixing. A professional can help keep the system in good shape.
