Maximum power point tracking (mppt) in solar systems is a technology. It helps photovoltaic systems work at their best power output. This process makes sure solar panels give the most energy. It works even when sunlight and temperature change. About 62% of solar systems use maximum power point tracking. In developed places, more than 87% use it. Systems without maximum power point tracking can lose up to 25% of power. Advanced mppt methods can reach almost 99% efficiency. These facts show how important maximum power point tracking (mppt) is in solar systems. This review looks at what maximum power point tracking is. It also explains how it works, why it matters, and its benefits for solar energy systems.
MPPT technology helps solar panels make the most energy. It always finds the best power point. This works even when sunlight or temperature changes.
Using MPPT can boost solar energy by 20% to 45% in winter. It can also boost energy by 10% to 15% in summer. This makes solar systems work better and more reliably.
MPPT controllers change voltage and current fast and on their own. They keep solar panels working their best. You do not need to help them by hand.
Advanced MPPT methods, like AI-based ones, track energy better. They work well during shade or changing weather. This helps solar systems last longer and save more money.
Picking the right MPPT controller and setting it up right is important. It helps the solar system work well. It also helps it handle different conditions and give steady power.
Maximum power point tracking (mppt) is a smart technology. It helps photovoltaic systems get the most energy from sunlight. Each solar panel has a special spot for the most power. This spot is called the maximum power point. The tracker finds this spot by checking current and voltage. It changes the system to stay at the best setting.
The main ideas behind maximum power point tracking are:
Photovoltaic systems have a special point for the most power. This is where current times voltage is highest. This is called the maximum power point.
The maximum power point moves with sunlight and temperature. The system must keep changing to follow it.
At the maximum power point, current and voltage change in a certain way. This spot is called the "knee" of the current-voltage curve.
MPPT controllers use DC-DC converters to change the load. They do this by changing the duty cycle. This helps keep the system at the maximum power point.
Common algorithms like Perturb and Observe or Incremental Conductance help the controller. They help it find and stay at the best point.
The controller checks voltage and current many times each second. It uses this data to make fast changes and keep the system working well.
Note: The power from a photovoltaic system depends on the voltage. MPPT tracks this point in real time. It works even when sunlight and temperature change. This can give 20-30% more energy than old methods.
| Aspect | MPPT (e.g., Perturb and Observe, Incremental Conductance) | Traditional PWM Regulation |
|---|---|---|
| Control Method | Changes voltage and current to track the best power point using algorithms and DC-DC converters | Uses set voltages and duty cycles to control power without always tracking the best point |
| Efficiency | High (usually 93-97%), changes with the weather for the best power | Lower efficiency because it does not always work at the best point |
| Adaptability | Always adjusts output using real-time voltage and current, and changes for temperature, sunlight, and battery | Not very adaptable, does not change much with the weather |
| Power Gain | Can give 20-45% more power in winter and 10-15% more in summer | No big power gain, may lose power when conditions change |
| Complexity | Needs a microprocessor and DC-DC converters, so it is more complex | Easier and cheaper to build but not as good |
| Oscillations Around MPP | Less bouncing around with smart algorithms like Incremental Conductance | May bounce more from the best point because it uses set values |
This table shows how maximum power point tracking is better than old methods. MPPT gives higher efficiency and helps solar panels work better.
Maximum power point tracking is very important for photovoltaic systems. Solar panels do not always work their best in real life. Weather, shade, and temperature can change fast. MPPT helps the system adjust and keeps energy output high.
MPPT makes sure solar panels always work at their best spot, even when sunlight or temperature changes.
This is important because real conditions are never perfect. Solar panels almost never reach their rated power without a tracker.
MPPT helps get more energy on cold days, cloudy days, or when the battery is low.
The technology cuts power loss in long wires. It lets the system use higher voltages and then change them for storage or use.
MPPT controllers can give 20-45% more power in winter and 10-15% more in summer. This means more energy for homes, businesses, or the grid.
A study of solar systems shows that those with maximum power point tracking make more energy and work better. For example, in a home with shade, yearly energy went up by over 5% with global MPPT. This means more savings and better use of solar power.
MPPT also has other good points:
It makes the power supply more steady and reliable.
The technology saves money by using more sunlight.
MPPT helps system parts last longer by keeping them in good shape.
New AI-based MPPT methods may track even better, especially when the weather changes.
Tip: Think of a power point tracker like an automatic car transmission. It always finds the best gear for the road. Old systems are stuck in one gear. This smart change gives better performance and more energy from sunlight.
New research shows that maximum power point tracking (mppt) in solar systems is not just a feature. It is needed for modern photovoltaic systems. It helps save energy, gives higher efficiency, and brings better returns for anyone using solar panels.
Image Source: unsplash

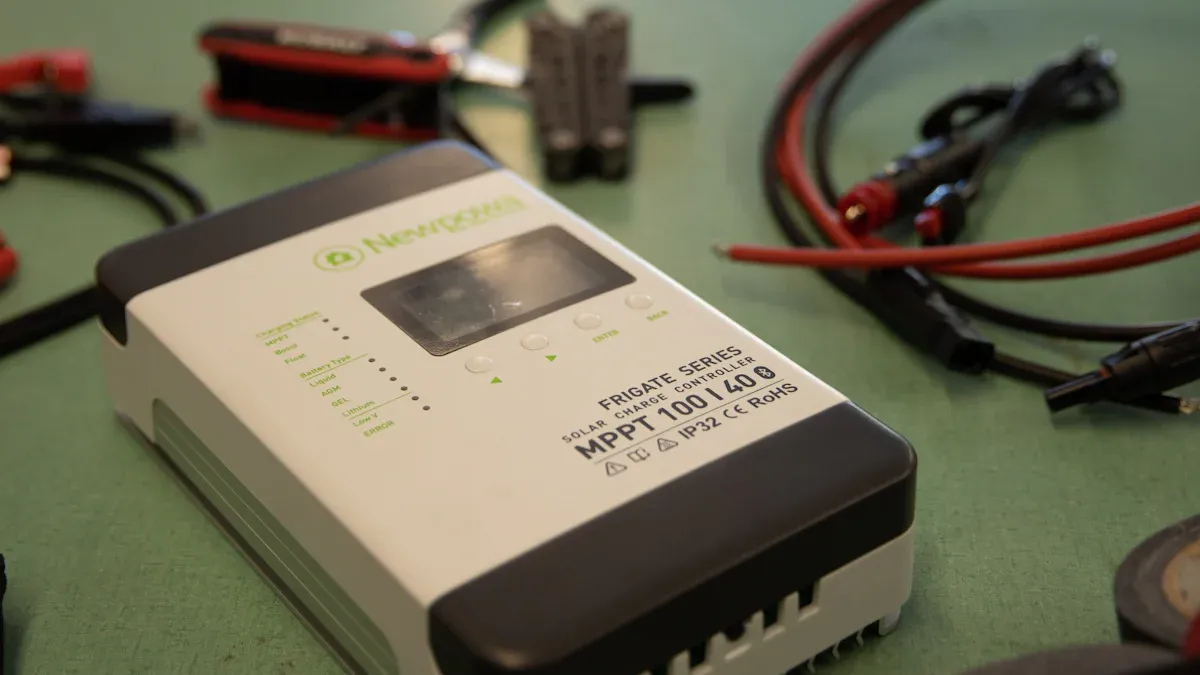

Maximum power point tracking uses smart technology to help photovoltaic systems get the most energy. MPPT controllers are like the brains of the system. They watch the solar panels all the time. The controllers change the voltage to match the maximum power point. This point moves when sunlight or temperature changes during the day. The controller uses a DC-DC converter to change voltage and current. This keeps the solar array working its best. The process happens by itself and does not need people to help. MPPT makes sure photovoltaic systems get the most energy, even when the weather is not perfect.
MPPT controllers follow the current-voltage curve of solar panels.
They change the voltage to stay at the maximum power point.
The system makes these changes fast and on its own.
This keeps energy output high, even if sunlight or temperature changes.
The current-voltage (I-V) and power-voltage (P-V) curves help us understand how maximum power point tracking works. The I-V curve shows how current changes when voltage changes in solar panels. The maximum power point is at the "knee" of this curve. This is where voltage times current is the highest. The P-V curve shows power against voltage and has a clear peak at the maximum power point. MPPT uses these curves to find and keep the best spot for working. By changing the load, the tracker keeps the system at the spot with the most energy. Technicians use I-V curve tracers to check if photovoltaic systems are healthy and working near the maximum power point.
Things like sunlight and temperature can change the maximum power point in photovoltaic systems. When temperature goes up, the maximum power point and efficiency go down. For every degree Celsius higher, efficiency drops about 0.5%. More sunlight, or irradiance, gives more energy and moves the maximum power point. MPPT controllers react to these changes by quickly changing voltage and current. Some advanced MPPT methods use artificial intelligence to track the maximum power point. They work even when clouds or shade cover part of the solar array. This quick action helps keep energy production high in any weather.
Note: MPPT controllers are smart DC-DC converters. They use microprocessors to change with the weather and get the most energy from solar panels.
Maximum power point tracking helps solar panels make more energy. It keeps each panel working at its best spot. Studies show MPPT can give 2% to 8% more energy. Tracking efficiency can be as high as 99.86%. In real life, MPPT gives 20% to 45% more power in winter. It gives 10% to 15% more in summer. These numbers change with weather and temperature. Most MPPT controllers work between 93% and 97% efficiency. MPPT helps homes and businesses by changing each panel’s setting when needed. This means more energy, better system work, and steady electricity.
MPPT controllers use smart algorithms to get the most power. They work well when there is shade or big temperature changes. The system keeps adjusting, so it lasts longer and makes more energy.
Voltage mismatch happens when some panels get less sun or are dirty. It can also happen if panels are not all the same. This problem can lower energy and waste power. MPPT fixes this by checking voltage and current for each panel. The controller changes settings right away, even if some panels are weak. This stops one bad panel from hurting the whole system. MPPT also helps when there are many peaks in the power-voltage curve. This can happen when panels do not match. The system stays efficient and works well.
Some things that cause voltage mismatch:
Shade from trees or buildings
Dust or dirt on the panels
Small differences from how panels are made
MPPT makes solar systems easier to design and use. You can have more than one MPPT, so different groups of panels work alone. This helps if panels face different ways or have different sizes. It lets people use special layouts on tricky roofs. It is also easy to add more panels later. Dual MPPT inverters let you mix panel types or directions without losing energy. They help you watch the system and fix problems fast. These things make MPPT a good choice for homes and businesses that want flexible and strong solar power.

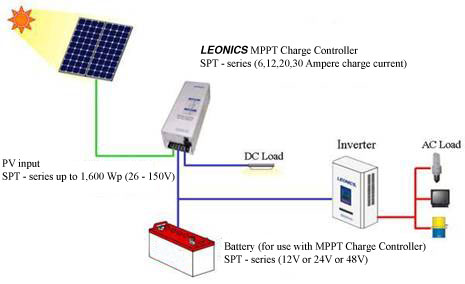

A good mppt charge controller has many helpful features. It should work with many battery voltages and take high input from the solar array. Many controllers have digital screens to show real-time output and system status. Some advanced models let you check data from far away and keep records. Some mppt charge controllers use smart algorithms to track the maximum power point with very small errors, often less than 5%. Safety features like overcurrent, overvoltage, and temperature protection keep the controller and battery safe. Flexible controllers can work with different battery types and support many setups.
Picking the right charge controller for a solar system has a few steps:
Find out the battery voltage for your system.
Look at the watt-peak (Wp) rating of your solar panel or array.
Figure out the charge current by dividing the total watts by the battery voltage (Charge Current = Wp / Battery Voltage).
Multiply the charge current by a safety factor, like 1.2, to get the needed controller current rating.
Pick an mppt charge controller that can handle this current.
Make sure the system voltage is in the controller’s input range.
If panels are in series, multiply the panel voltage by the number of panels to get the system voltage.
If panels are in parallel, make sure the panel voltage matches the system voltage.
Check that the open-circuit voltage (Voc) of the array does not go over the controller’s max rating.
Example: If you have a 300 Wp solar panel and a 12V battery, the charge current is 25A (300/12). With a safety factor, pick a controller rated for at least 30A.
Setting up the mppt charge controller the right way helps it work best. Pick controllers with small error margins for better tracking. Always match the controller’s voltage and current ratings to the solar array. Use controllers that can handle different battery setups for more options. Watch the system output often and keep solar panels clean for the most energy. Adjust the controller to fit changes in sunlight and temperature. Advanced controllers use special algorithms to get more energy, even when there is shade or changing weather. These steps help solar charge controllers stay steady and work well.
Classic MPPT strategies are the base for solar energy optimization. The most used ones are Perturb and Observe (P&O), Incremental Conductance (INC), and Hill Climbing (HC). These methods use easy rules to change voltage and current. This helps the system find the maximum power point. P&O is the most popular in commercial systems. When set up well, it can be over 97% efficient. These methods work best when sunlight is steady. They may not work as well if sunlight changes fast or if there is shade.
Common classic methods:
Perturb and Observe (P&O)
Incremental Conductance (INC)
Hill Climbing (HC)
Classic methods are simple and dependable. But they can bounce around the best point. They may miss the best spot when sunlight changes quickly.
Modern MPPT strategies use smart techniques to track better and faster. Artificial intelligence (AI) and metaheuristic algorithms are used. Some examples are Artificial Neural Networks (ANN), Fuzzy Logic Controllers (FLC), and Hybrid Particle Swarm Optimization (PSO). These methods react quickly to changes in sunlight and temperature. For example, Hybrid PSO with Quasi-Newton can reach 98.6% efficiency and reacts in 0.2 seconds. AI-based methods are more accurate and steady, even when the weather changes a lot. But they need more computer power.
| Aspect | Modern AI & Metaheuristic Methods | Classic Methods |
|---|---|---|
| Efficiency | Up to 98.6% | Up to 97% |
| Response Time | Faster (0.2s) | Slower (1s) |
| Accuracy | High, even in shading | Lower in shading |
| Complexity | High | Low |
Modern strategies work better than classic ones in tough situations. But they are harder to set up and use.
Partial shading makes many peaks in the power curve. This makes it hard for classic methods to find the real maximum. Advanced MPPT strategies fix this with hardware and software. Hardware options are micro-inverters and adaptive arrays. These let each solar module work on its own. Software methods use bio-inspired algorithms like Grasshopper Optimization Algorithm (GOA) and Grey Wolf Optimization (GWO). Hybrid MPPT strategies mix these ideas to avoid getting stuck at a wrong peak and to be more accurate. These solutions help keep energy high even when some panels are shaded.
Tip: Using smart software and special hardware together works best for partial shading in solar systems.
The future of MPPT will use mixed methods. Researchers are joining classic, metaheuristic, and AI-based ways for faster and better results. AI methods like ANN and FLC work well when things change a lot. New studies look at picking the best MPPT by cost and how well it works. Fixing shading problems and making things simpler are still important. Connecting with smart grids and other green energy will also change how MPPT works in the future.
A review shows that maximum power point tracking is very important for solar systems. MPPT helps solar panels work better, raising efficiency from 15.7% to over 24% when the sun is strong. Recent research says MPPT lets panels follow sunlight changes and make more energy. The review also says picking the right controller affects how well the system works. MPPT methods have changed a lot, going from simple analog to smart AI-based algorithms. Newer controllers can handle tough situations and adjust to different problems. Fuzzy logic, PSO, and genetic algorithms help track the best power point better. The review says new controllers can deal with shade and quick weather changes. These advances show that using MPPT helps people get more energy from solar panels. The review ends by saying that picking the right controller and method gives long-lasting benefits. Industry data proves that MPPT is needed for today’s solar systems.
A review of MPPT technology shows it is great for anyone who wants steady and strong solar power.
An MPPT controller finds the best voltage and current for solar panels. It changes the system to get the most power. This device helps solar panels work better when the weather changes.
Most MPPT controllers work with many kinds of panels. People should check the voltage and current before hooking them up. This makes sure the system is safe and works well.
| Controller Type | Extra Energy Gain |
|---|---|
| MPPT | 10–45% |
| PWM | 0% |
MPPT controllers can give 10–45% more energy than PWM ones. This is true when it is cold or cloudy outside.
Yes. MPPT controllers change fast when sunlight changes. They help solar panels make more energy, even if clouds or shade cover some panels.
