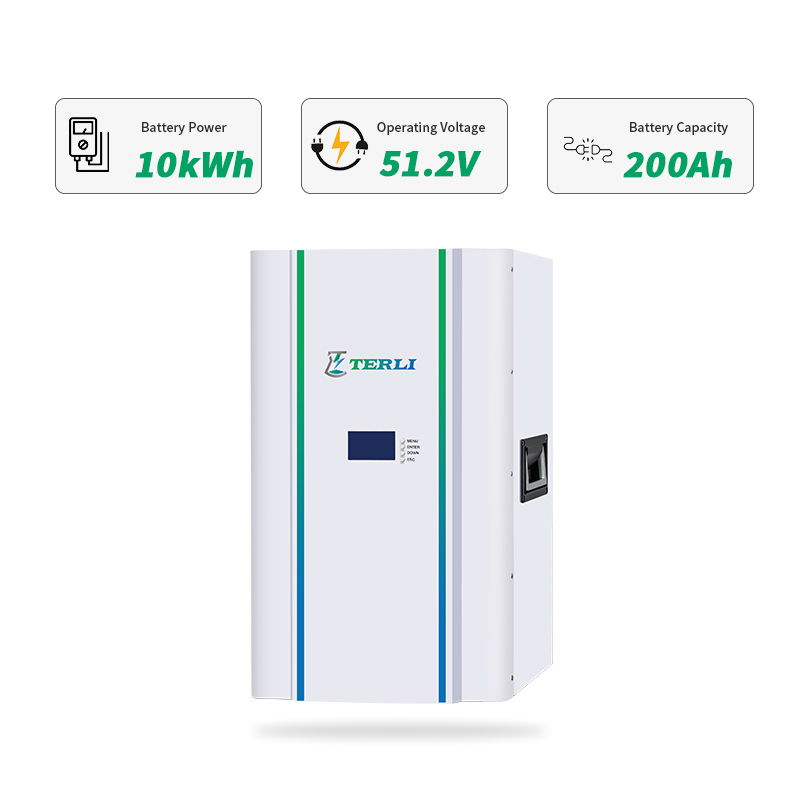

• 51.2V/200Ah/10kwh high-quality powerwall battery
• New size: 623x400x263mm
• Optimized size: 30% smaller with the same storage capacity
• Longer cycle life > 6000 cycles
• Smart Elite BMS ensures safe and stable
• LED Intelligent Monitoring
• Bluetooth App or WIFI App is optional
| Quantity: | |
|---|---|
200ah
Terli
Model |
Gaia-S 10 |
Battery Type |
LiFePO4 |
Battery Capacity (Ah) |
202 |
Nominal Battery Energy (kWh) |
10.3 |
Max Output Power（kW） |
10.3 |
Net Weight（Kg） |
81.5 |
Dimension (L*W*H mm) |
623*400*263 |
Working Voltage (V) |
47~55 |
Operating Temp.Range (°C) |
-20~50 |
Calendar Life (Cycles) |
6000@25°C, 90% DOD |
Nominal Voltage(V) |
51.2 |
Protection Level |
IP54 |
| Communication | CAN/RS485 |
Certification & Safety Standard |
TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited |
Monitoring & Protection |
BMS |
| HMI | LCD |
The Terli 51.2V 10kW Powerwall measures 623×400×263mm and 81.5kg — a 30% smaller footprint than standard powerwalls in the same capacity class. Comparable units weigh 90–105kg, adding crew and freight costs this compact 10kWh powerwall eliminates.
This powerwall size comparison translates to lower freight cost per pallet and faster installation in EU apartments or tight utility rooms. Both wall-mounted and floor-standing configurations ship in one SKU — no variant splits for installers handling mixed site types.
The LED+LCD panel displays real-time SoC, voltage, and alarm status on the unit face. Optional WiFi and Bluetooth extend monitoring to a smartphone app — cutting post-install service calls for distributors carrying this wall-mounted home battery.
Hidden side handles allow ergonomic single-person carry without protrusions that increase wall clearance requirements. The compact metal enclosure fits residential and light commercial sites without modification.
This powerwall inverter compatibility list covers 20+ brands across EU, Australian, and North American installer portfolios. The list matches 99% of inverters on the global market.
Compatible brands:Deye, Growatt, SMA, Victron Energy, Sungrow, GoodWe, SolaX Power, Sofar Solar, MUST, Solis, LuxPowerTek, Schneider Electric, Voltronic Power, MPP Solar, SRNE, SYNK, Enphase, KSTAR, Studer
Communication:CAN2.0, RS485, and RS232 standard on every unit; WiFi and Bluetooth optional. The CAN RS485 battery protocol selection runs directly from the LCD screen — no laptop required on-site.
Parallel scaling:Up to 15 units connect on the same bus with auto-addressing — no manual dial code required. Scaling from 10kWh to 150kWh+ adds zero configuration steps per unit added.
Installation kit:Every unit ships with bracket, network cable, tool cable, and terminal — plug-and-play from unboxing. Both off-grid and hybrid grid modes operate natively with any Deye Growatt SMA Victron battery-compatible inverter on the list above.
The Smart Elite BMS delivers LiFePO4 powerwall BMS protection across eight independently triggered failure modes. Each mode targets a documented fault type that drives field returns in the 51.2V storage category.
Electrical Fault ProtectionAutonomous cutoff activates on overcharge, over-discharge, over-current, over-temperature, and short circuit — no user intervention required.
Reverse Charge Prevention & Cell BalancingBlocks wiring-error damage at source; voltage balancing across all 16 cells prevents differential aging over the 15-year design life.
LiFePO4 Safety: NO FIRE, NO EXPLOSIONNon-toxic, flame-retardant LiFePO4 chemistry eliminates the thermal runaway risk present in NMC alternatives. Seven abuse tests — overcharge, drop, short circuit, crush, high-temperature, and needle puncture — confirm NO FIRE, NO EXPLOSION outcomes. This lithium battery safety certification record directly lowers distributor warranty exposure.
Factory QC & Reliability100% of cells pass an aging test before dispatch. ISO 9001:2015 governs production; electrical design redundancy exceeds 20%. The >6,000-cycle life at 90% DoD supports a credible 10-year end-customer warranty offer. IP54/IP65 enclosure seals against dust and moisture ingress.
