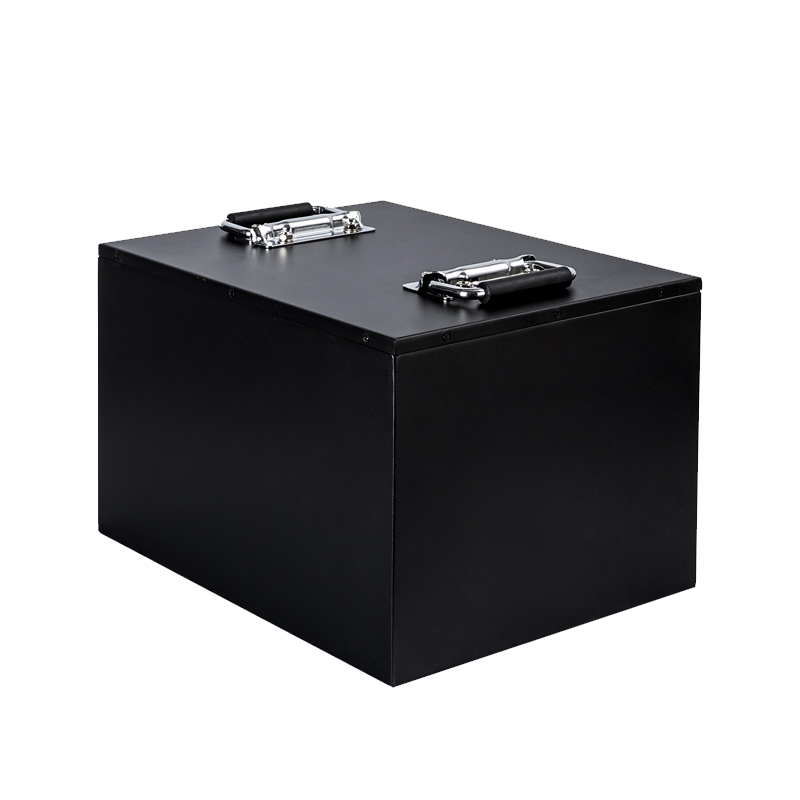

Deep Cycle Electric Boat Ev Solar Energy Battery Pack 24v 25.6v 60ah 200ah Lifepo4 Bms Inside 100a Max Charging Current

A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
B. Long life-cycle: Can be circularly used, best can up to 3000 times recycles 80%, 8 times of Lead acid battery.
C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
D. Good performance at high temperature and high temperature resistance
Availability:
Quantity:


Applications:

  • Wheelchairs and scooters

  • Solar/wind energy storage

  • Back-up power for small UPS

  • Golf trolleys & buggies

  • Electric bikes


Model

24V

Battery Type

LiFe PO4

Battery Module

TY-24-150

TY-24-200

Battery Capacity (Ah)

150AH

200AH

Nominal Battery Energy (kWh)

3.6

4.8

Nominal Voltage (V)

25.6V

25.6V

Nominal Output Current (A)

75

100

Weight (Kg)

29.8

36

Dimension (L*W*H mm)

430*210*210

430*290*210

Package Dimension (L*W*H mm)

470*250*250

470*330*330

Working Voltage (V)

22.4~2.9.2 44.8~58.4

Operating Temp.Range (°C)

-20~50

Calendar Life (Cycles)

6000@25°C,80%DOD

Protection Level

IP54

Terminal

Anderson Or Other

Certification & Safety Standard

TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited

Monitoring & Protection

BMS

Display LCD


5

6
