You might wonder how a solar cell module is made. The cell to module process starts with very pure materials. These materials affect how well each solar panel works. They also affect how long the panels last. The materials used, like for the backsheet, are very important. They can decide how long your solar cell modules will work. For example, some backsheets had no problems in tests. But others cracked up to 9.4% of the time. You can see how fast solar cell module production has grown in the chart below:
Every step, from putting cells together to testing, is important. These steps help decide how much energy your solar cell modules can make over time.
Pick good materials for solar panels. Pure silicon and strong backsheets help them work better and last longer.
Know why each step in making panels matters. Steps like doping and encapsulation change how well solar modules work.
Choose solar modules with certifications. Certifications show they are safe, reliable, and meet world standards.
Keep learning about new materials and technology. Things like perovskite cells and bifacial panels can make more energy and cost less.
Test and take care of your solar panels often. Checking quality during making and doing regular checks helps them last longer.
When you see photovoltaic modules, they are made from special materials. The most important one is silicon. Silicon is used in about 95% of solar cells. There are different types of silicon, but crystalline silicon is the most common. It makes up 75% of the market. Thin-film technologies come next with 15%. Building-integrated photovoltaics make up the last 10%.
Crystalline silicon panels last a long time and work well.
Thin-film panels, like cadmium telluride (CdTe), use less material and handle heat better.
CdTe panels can take in more light with thinner layers. This helps them work in dim light.
You can look at this table to compare silicon and CdTe:
| Property | Silicon | Cadmium Telluride (CdTe) |
|---|---|---|
| Efficiency | 15-20% | Higher absorption efficiency |
| Thickness | ~180 μm | 1-2 μm |
| Lifespan | >25 years | Similar lifespan |
| Temperature Coefficient | -0.3% to -0.5%/°C | -0.20% to -0.30%/°C |
| Environmental Impact | Non-toxic, abundant | Toxic heavy metal, stable |
| Manufacturing | Complex, more steps | Simpler, fewer steps |
Note: Thin-film is the fastest-growing solar technology. Companies are making it cheaper and better.
Solar cells need very pure materials to work well. Silicon must be almost perfect, at 99.9999% purity. The process starts with raw silica. Factories turn it into metallurgical-grade silicon. Then, it goes through the Siemens process to become trichlorosilane. After cleaning, it becomes electronic-grade polysilicon. The Czochralski method makes single-crystal ingots. Workers cut these ingots into thin wafers for solar cells.
Crystalline silicon modules are very efficient, often over 20%. Thin-film modules are less efficient at 10-12%. But they cost less and are lighter, so they are easier to install. The materials you pick change how well your solar panels work, how long they last, and how they affect the environment.
Making a solar cell from a silicon wafer takes many steps. Each step helps the cell work better and last longer. The process changes a plain wafer into something that makes energy.
First, you start with a clean wafer. You must fix any damage from cutting. This makes the wafer smooth for the next steps. Then, you add texture to the surface. The texture forms tiny pyramids on the wafer. These pyramids help catch more sunlight inside the cell.
| Benefit | Description |
|---|---|
| Enhanced Light Transmittance | Textured glass lets in more light, so the current gets higher. |
| Cooling Effect | The texture helps cool the module, so it stays at lower temperatures. |
| Self-Cleaning Properties | The texture keeps water and dust off, so the surface stays cleaner. |
| Energy Yield | All these things help the cell make more energy and work better. |
Next, you dope the wafer. Doping gives the cell its special electrical features. You add elements like boron and phosphorus to the silicon. These elements make parts of the cell that help move electricity. There are different ways to do doping:
Laser doping uses energy to add elements without hurting the wafer.
Selective emitter doping puts dopants only in certain spots to make the cell work better.
Controlled laser doping lets you change how much boron you add for better results.
You must control doping very carefully. If you add too much or too little, the cell will not work as well. After doping, you clean off extra layers, like phosphorus silicate glass, to get the cell ready for the next step.
Tip: Good texturing and doping help your solar cells work better and last longer.
After doping, you put on an anti-reflective coating (ARC). This coating helps the cell take in more sunlight. Without it, a lot of sunlight bounces away and is lost. The ARC uses materials like silicon dioxide, titanium dioxide, silicon nitride, or magnesium fluoride. These materials make a thin layer that stops light from bouncing off and lets more light in.
Anti-reflective coatings cut down on light bouncing away and help the cell take in more light.
ARCs use special tricks with light to trap more sunlight.
Common ARC materials are SiO2, TiO2, Si3N4, and MgF2.
Now, you add metal contacts. These contacts collect the electricity and send it out of the cell. You print thin lines of metal, like silver or aluminum, on both sides of the cell. The kind of metal and where you put it is important.
The metal’s work function changes how well it collects electricity.
Good metal contacts help the cell make more voltage and current.
If you use the wrong metal or design, the cell will lose power.
You also need to make sure the metal lines do not block too much sunlight. Thin lines are best. The last step here is edge isolation. This step keeps electricity from leaking out the sides of the cell.
Note: If you design the anti-reflective coating and metal contacts well, your cells will work much better.
These steps turn plain wafers into strong, high-efficiency solar cells. Every part, from texturing to metal contacts, helps your solar panels work their best.
Image Source: unsplash

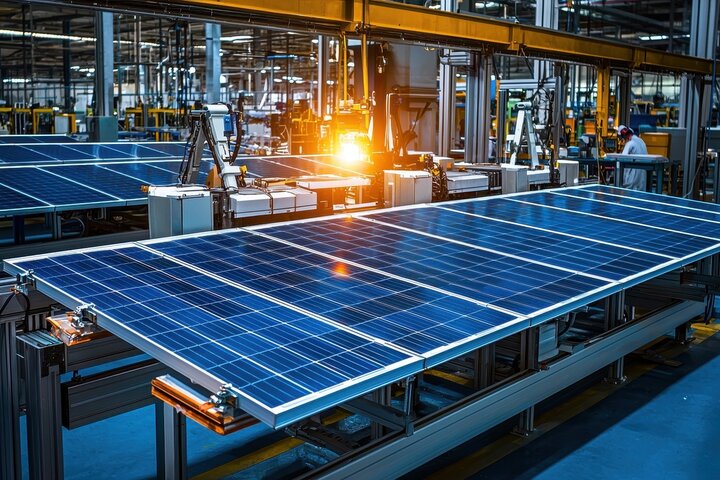

Solar panels look finished on the outside. Inside, many steps help each module work well and last long. First, you connect the solar cells. This is called cell interconnection. You use solder tape to join the cells. This makes a circuit for electricity to flow. How you connect the cells can change how strong and efficient the modules are.
| Interconnect Technology | Impact on Reliability | Impact on Efficiency |
|---|---|---|
| Wire Interconnects | Can cause delamination and loss of contact from thermal expansion | Power loss up to 9% at high temperatures |
| Electrically Conductive Adhesive | Tested for long-term performance | Not specified |
| Monolithic Conductive Backsheet | Tested for long-term performance | Not specified |
| Low-Temperature Soldered Wire | Used in silicon heterojunction technology | Not specified |
A laser cuts the cells in half. This is called half cutting. It helps lower current losses and makes panels work better. Laser scribing removes a thin layer of material. This lowers stress and keeps things even. The laser does not touch the surface, so there is no tool wear or dirt. The lines are very thin, less than 30 microns. This gives tight control over the cell layout.
Laser scribing separates cells quickly and with high accuracy.
You see less debris and almost no heat damage.
You can connect cells over big areas, which helps build bigger modules.
After cutting and connecting, you put the cells into strings. You place these strings on PV glass. You solder them to make the cell module. This careful layout helps get the most power from each panel.
Here are the usual steps in the cell module assembly process:
Cut cells with a laser for better performance.
Solder cells together with tape to make strings.
Put strings on PV glass and solder them.
Scan the module with electroluminescence (EL) to find defects.
Laminate the module at high temperature to bond layers.
Trim extra material and add an aluminum frame.
Mount and seal the junction box.
Let the module cool and clean it.
Test the module for quality and performance.
Pack the finished modules for shipping.
Tip: Careful cell interconnection and laser scribing help you build panels that last longer and work better.
After you connect and arrange the cells, you need to protect them. Encapsulation is the next big step. You use special films to cover the cells. These films keep out water, dust, and stress. EVA is the most common encapsulation material. EVA is clear, stable in heat, and strong in sunlight. It bonds the cells to the glass and backsheet.
Encapsulation films do more than stick things together. They cushion the cells and protect against electrical problems. They stop water from getting in. Water can cause corrosion and shorten panel life. Other materials like polyolefins, PVB, silicones, and thermoplastic elastomers are also used. Each one has its own strengths for protection and durability.
| Encapsulation Material | Durability Characteristics |
|---|---|
| EVA | Stable at high temperatures, resists UV, keeps structure under stress |
| Polyolefins | Newer option, gaining popularity for future modules |
| PVB | Good adhesion and durability in some applications |
| Silicones | Flexible and durable, but less common than EVA |
| Thermoplastic Elastomers | Add cushioning and mechanical protection, boost module durability |
After you encapsulate the cells, you laminate the stack. Heat and pressure seal the layers together. This keeps out air and water. The module becomes strong and weatherproof. You add a frame, usually made of aluminum. The frame gives shape and helps the module handle wind and snow. Aluminum does not rust, so panels last longer outside.
Frames help with thermal expansion, so modules do not crack.
Frames spread out stress, so panels do not bend in strong winds.
Using strong, rust-resistant materials like aluminum or stainless steel makes modules last longer.
You finish by attaching a junction box. The junction box connects the module to your solar system. You seal it tightly to keep out water and dust. After everything is done, you let the module cool and solidify. You clean the surface and run final tests to check quality.
Note: Good encapsulation and framing protect your panels from the environment and help them last for decades.
Every step in the cell module assembly process matters. How you connect, encapsulate, and frame the cells decides how well your modules work and how long they last. If you pick the right materials and follow the best steps, you get solar panels that give reliable power for many years.
You want your solar modules to work well and last long. That is why factories check quality at every step. Many tests happen during production. These tests help find problems early. This keeps the final product strong.
Factory audits make sure workers follow the rules.
Inline checks watch each step for mistakes.
Pre-shipment checks make sure only good modules leave.
Electroluminescence testing (EL) finds hidden problems in cells.
Mechanical load tests see if modules can handle wind and snow.
Wet leakage current tests check if water causes electrical trouble.
EL testing uses a special current to make cells glow. Cracks or broken parts do not shine as much. This test finds tiny problems that other tests miss. EL imaging works better than infrared scans. It helps find microcracks and small defects. Automated systems now scan EL images fast and accurately. This means less need for experts.
You also need to check how well the modules work. Module testing looks at real-life performance. You measure things like:
Damp heat resistance
Hail durability
Potential induced degradation (PID)
Mechanical load strength
Thermal cycling
Ultraviolet induced degradation (UVID)
Module efficiency
Incidence angle modifier (IAM)
Light- and elevated temperature-induced degradation (LeTID)
Light-induced degradation (LID)
PAN file accuracy
PTC-to-STC ratio
Temperature coefficient
These checks make sure your modules keep working well over time. Final quality checks catch any last problems before shipping.
You want your solar modules to meet world standards. Certification shows your modules are safe and reliable. During production, you follow strict rules from international groups. These rules cover both safety and performance.
| Certification Standard | Description |
|---|---|
| IEC 61215 | Tests performance in real-life conditions. |
| IEC 61730 | Focuses on safety and risk prevention. |
| UL 1703 | Checks electrical and fire safety. |
| CE Marking | Shows compliance with EU health, safety, and environmental rules. |
| CEC Certification | Ensures efficiency and safety for California. |
Other certifications are important too. For example, CSI Certification checks fire resistance. SGS Certification tests for quality and reliability. ISO Certification shows you care about quality and the environment. MCS Certification is needed for the UK market. UL Certification checks electrical and safety performance.
Tip: Always choose certified modules. Certification means your solar panels passed tough tests for quality, safety, and performance.
Quality control in solar manufacturing protects your money. You get modules that work well and last for many years.
The materials you pick change how well solar modules work. Each part, like the backsheet or encapsulant, helps decide how much energy your panels make and how long they last. If you use stable backsheet materials, your panels have fewer problems and need fewer repairs. EVA and POE encapsulants help keep electricity safe and hold the parts together. Newer types use less material, so making panels is faster and costs less.
Here is a table that shows how different materials affect module efficiency:
| Evidence Description | Impact on Efficiency |
|---|---|
| Stable backsheet material | Makes panels last longer and cost less over time |
| EVA and POE encapsulants | Help make panels faster and cheaper |
| Edge sealing tapes | Make the whole panel work better |
| Consistent materials for automation | Help make more panels and improve quality |
| Every BOM component | Changes how well and how cheaply panels work |
You also need to think about how materials change how long your solar panels last. PV modules made from renewable materials do not always last as long. Biodegradable materials might break down faster and not handle weather as well as regular ones. Sunlight and mistakes in making the panels can make them wear out. This can hurt how well your solar system works and how much money you save.
New materials have made solar energy better and easier to use. Thin-film solar cells, like those made from cadmium telluride (CdTe) and copper indium gallium selenide (CIGS), are lighter and cost less than old silicon cells. Perovskite solar cells are simple to make and cheaper, so solar power can cost less. Bifacial solar panels catch light from both sides and can make up to 20% more power than normal panels.
Here are some new ideas that help panels work better and last longer:
Perovskite-silicon tandem solar cells now reach 33.9% efficiency, which is higher than single-junction cells and helps you get more energy.
LONGi has made changes to how the parts fit and move electricity, so panels work better.
New plastics and green materials lower starting costs, need less fixing, and do not rust. Lighter parts also make shipping cheaper.
These new materials help you because your solar panels become stronger, work better, and save you more money. As these ideas get better, you get more energy and your solar system lasts longer.
Every step and material you pick changes how good solar modules are. Using pure silicon and strong tempered glass helps panels work well and last longer. Experts say you should look for some key things:
Power electronics that help control how energy moves
New materials and smart features
When picking solar panels, think about these main points:
How long it lasts and its warranty
The price and if it matches the quality
If it is easy to install and works with your system
If it uses new ideas and is good for the planet
You make a smart choice when you learn about the process and pick panels that match what you need.
pv stands for photovoltaic. You see pv used to describe solar cells and modules that turn sunlight into electricity. pv technology helps you use clean energy at home or in business.
You check for certifications like IEC and UL. You look for strong frames and good encapsulation. pv modules with these features last longer and work better. You can ask for test results before you buy pv products.
Silicon helps pv cells capture sunlight and make electricity. You find silicon in most pv modules because it is stable and efficient. pv panels with silicon work well for many years and handle weather changes.
pv modules still make electricity when clouds cover the sun. You get less power, but pv technology works in low light. Some pv panels, like thin-film types, do better in dim conditions.
You can expect pv modules to last over 25 years. Good materials and strong frames help pv panels stay reliable. You should check your pv system every year to keep it working well.
