You can make your solar system work better by using smbb and half-cut cell technology together. These designs help you get more power from the same panel size. Shorter paths for electricity mean less energy is wasted. This gives you higher efficiency. The table below shows how these features help your solar panels:
| Mechanism | Effect on Performance |
|---|---|
| Reduced current conduction distance | Makes panels work up to 37% better than regular cells. |
| More homogeneous current distribution | Helps electricity flow evenly and boosts cell efficiency. |
| Enhanced mechanical resistance | Makes panels tougher and less likely to break. |
| Prevention of microcrack expansion | Helps your solar panels last longer. |
| Better heat management | Stops hot spots and keeps panels working well over time. |
SMBB technology helps electricity move faster. It gives electricity shorter paths to travel. This means less energy is lost. Solar cells work up to 37% better than older ones.
Half-cut solar cell design lowers resistance. This lets electricity flow more easily. It causes 75% less electrical loss. Efficiency goes up by 2.1% to 2.6%.
Picking solar panels with SMBB and half-cut technology is smart. These panels last longer. They do not break easily from cracks. They also work well when there is shade.
SMBB half-cut solar panels cost more at first. But they save money over time. They make more power. Electricity bills get lower.
SMBB and half-cut technology work together. They make solar panels more efficient. This helps you get the most energy possible.
Image Source: unsplash

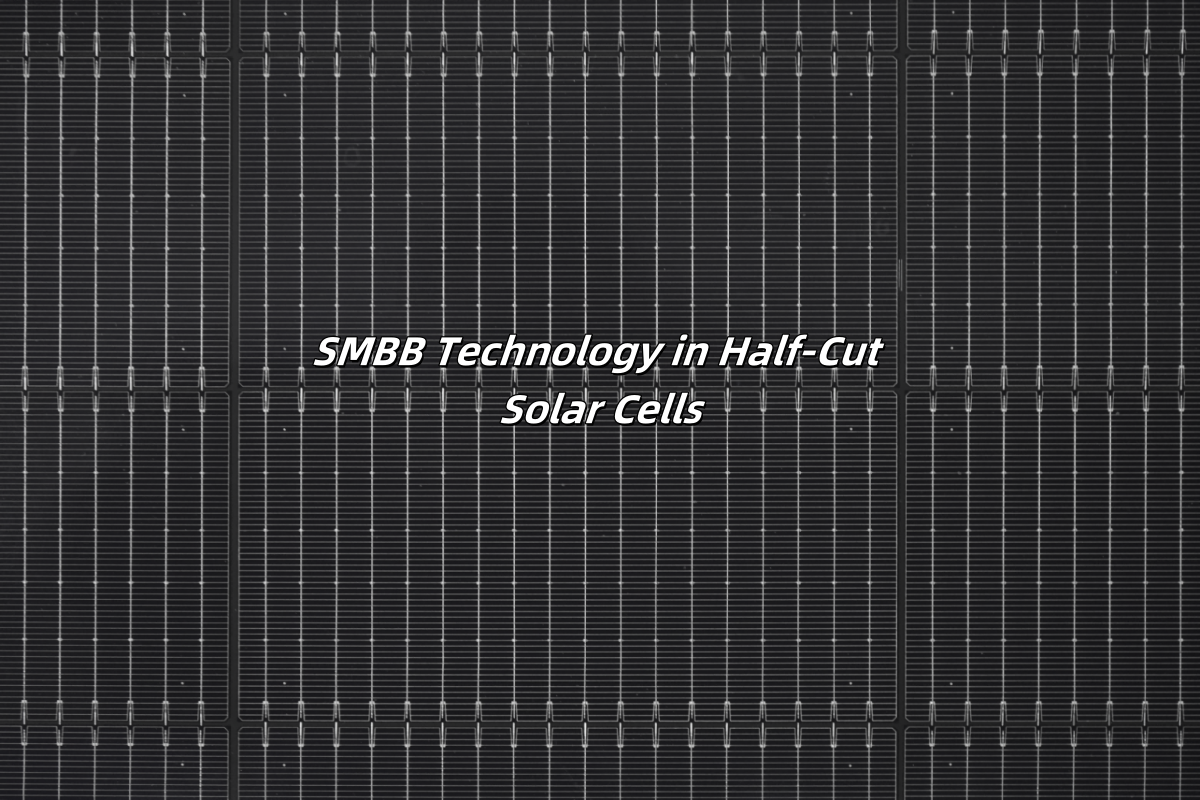

You want your solar panels to work well. SMBB technology helps make this happen. It gives electricity a shorter path inside the cells. More busbars mean electricity does not travel as far. This helps stop energy from turning into heat. You get more power from the same sunlight.
Here is how SMBB changes solar panels:
| Mechanism | Description |
|---|---|
| Busbar Design | SMBB uses many thin busbars. This means less silver is needed. It also makes the cells stronger. |
| Resistance Reduction | Thin busbars lower resistance. More electricity can move through the cells. |
| Micro-crack Tolerance | SMBB helps cells deal with small cracks. Your panels last longer. |
| Energy Efficiency | Less resistance means your panels work better. |
| Shading Reduction | Thin busbars cover less of the cell. More sunlight hits the photovoltaic surface. |
SMBB technology makes your solar panels more reliable. It also helps them work better. The design lets your panels handle cracks and shade better than old designs.
SMBB helps electrons move faster in your solar panels. This means your panels collect more electricity from sunlight. The electrons do not have to travel as far. This helps your panels work well, even if some parts are shaded or damaged.
Studies show stacked grid technology works with SMBB. It can give your panels 25 to 30 more watts than old designs. This is because the current paths are better. Thin wires let in more light. Your panels turn more sunlight into energy and work better.
There is another good thing about circular ribbon soldering in SMBB:
Circular ribbons bounce more light back into the cells. This helps make more power.
These ribbons also make smaller shadows. Your panels get more sunlight.
Tip: If you want your solar panels to last longer and work better, choose panels with SMBB and circular ribbon technology. These features help your panels deal with cracks, shade, and heat better than old designs.
With SMBB and multi-busbar technology, your solar panels will be more efficient, more reliable, and give you more power for your home or business.

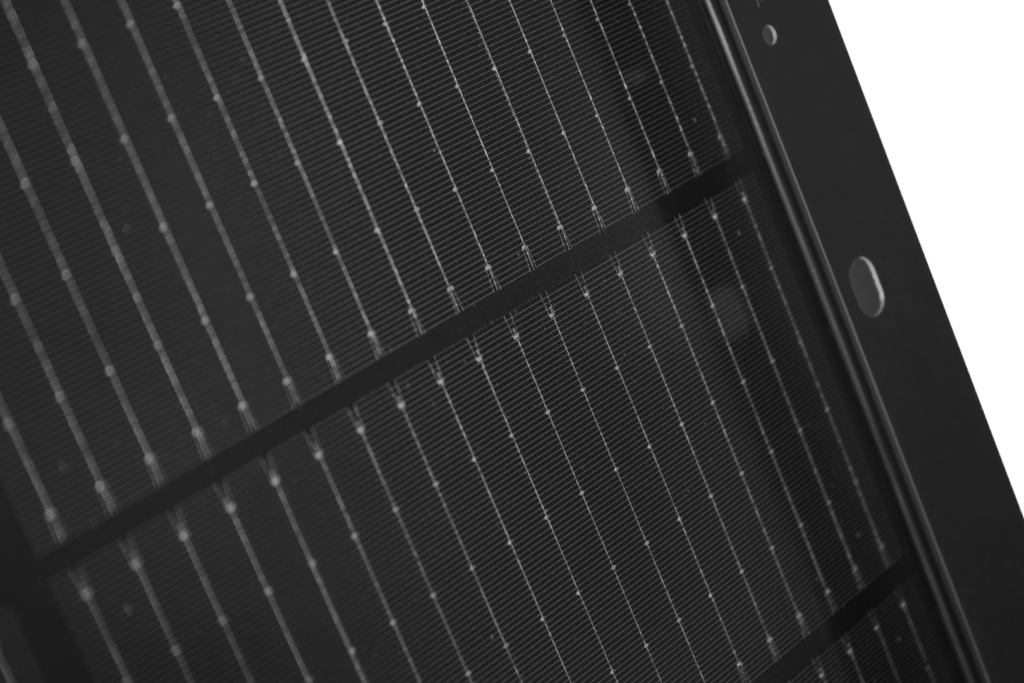

Half-cut solar cell technology can help your solar panels make more power. This design splits each photovoltaic cell into two smaller pieces. Smaller cells mean electricity does not have to travel as far. Shorter paths lower resistance inside the cells. This helps your solar panels work better.
Many experts have tested half-cut solar cell technology. They found that it makes solar panels work much better. You lose less power, especially in the ribbons that connect the cells. Here are some key results:
Halved cells lower electrical losses by 75%.
Efficiency goes up by 2.1% to 2.6% for different modules.
A regular 240 W module can get up to 6.3 W more power.
Lower resistance lets your solar panels use more sunlight. This means more energy and higher power for your home or business.
Half-cut solar cell technology helps your solar panels make more energy. You get more power from the same size panel. This design keeps your panels cooler and helps them last longer. Hot spots are less likely, so your photovoltaic cell stays safe and your panels keep working well.
Look at the table below to see how half-cut solar cell technology helps your solar panels:
| Technology Type | Output Gain (%) |
|---|---|
| Half-Cut Solar Cells | 3-4% more energy than full-cell modules |
You also get these good things:
| Metric | Value |
|---|---|
| Reduction in electrical losses | 75% |
| Increase in Cell-to-Module power | 3.6% |
| Reduction in hot spot temperature | Up to 20ºC |
Your solar panels will work better and be more efficient. Many people pick half-cut solar cell technology for more power and longer panel life. This design helps you get the most from your solar energy.
Note: If you want your solar panels to last longer and work better, half-cut solar cell technology is a smart choice. You get more energy, less heat, and stronger panels.
SMBB technology helps your solar panels work better. It uses more thin busbars on each cell. These busbars help electricity move easily across the cell. With SMBB, electricity spreads out better and faces less resistance. This means your panels turn more sunlight into energy you can use.
SMBB also helps save materials. Makers use less silver paste because the busbars are thinner and there are more of them. Silver-coated copper pastes help electrons move even faster. This process covers copper with silver, so electricity moves quickly and well. Your solar panel works harder and lasts longer.
Here are some ways SMBB makes panels more efficient:
More busbars collect electricity better and lower losses.
Thinner busbars let in more light, so panels take in more energy.
SMBB increases bifaciality, so panels can catch light from both sides.
There is less shading, so more sunlight hits the cell.
The design uses less silver paste, which lowers costs.
Note: SMBB technology really boosts efficiency. You get more power from your panels without making them bigger.
You want your solar panels to last a long time. SMBB technology helps with this. Many busbars make your panels stronger and more reliable. If a small crack forms, the extra busbars keep electricity moving. Your panels keep working, even if part of a cell is damaged.
SMBB also helps your panels deal with shade. More busbars give electricity new paths around shaded or broken spots. Your panels keep making power, even if a leaf or shadow covers them. This means your solar system works well most of the time.
Here is a quick look at how SMBB helps with reliability and shade:
| Feature | Benefit for You |
|---|---|
| Multiple busbars | Panels resist cracks and damage |
| Better current paths | Panels work under some shade |
| Stronger connections | Panels last longer and need less fixing |
| Less silver paste | Panels cost less and stay efficient |
Tip: If you want panels that work in real life, pick SMBB technology. You get better reliability, longer life, and steady power.
SMBB technology is a big step for solar panels. You get higher efficiency, better strength, and improved performance in every panel. This helps you get the most from your solar panels.
When you look at solar panels, you want to know which type gives you more power and lasts longer. Traditional solar panels use fewer busbars and full-size cells. SMBB half-cut solar cells use many thin busbars and split each cell in half. This new design helps your panels work better and stay strong.
Here is a table that shows how SMBB half-cut solar cells compare to conventional solar panels:
| Feature | SMBB Half-Cut Solar Cells | Conventional Solar Cells |
|---|---|---|
| Recovery from Laser Damage | Yes | No |
| Passivation at Cell Edges | Yes | N/A |
| Performance Increase | Up to 6 W | N/A |
You can see that SMBB half-cut solar cells recover from laser damage. This means your panels keep working even if they get small marks during production. Passivation at cell edges also helps stop power loss. You get up to 6 more watts of power from each panel. Traditional solar panels do not have these features.
In real-world use, SMBB half-cut solar panels show clear benefits. You get more energy from the same space on your roof. These panels handle shade and small cracks better. If a branch or leaf covers part of your panel, SMBB technology lets electricity find new paths. Your solar panels keep making power, even when conditions are not perfect.
Many people notice that their solar panels with SMBB half-cut cells last longer. The panels resist damage and keep their power output high for years. This development in solar technology means you spend less time worrying about repairs or replacements.
Tip: If you want solar panels that give you more power and last longer, choose SMBB half-cut solar panels. You will see better performance and more reliable energy for your home.
When you think about new solar technology, you should look at the cost. Making smbb half-cut solar panels is harder than making old ones. There are more steps to build these panels. You need to use laser cutting and do extra soldering. These steps make each panel take longer to finish and cost more money.
Half-cut solar cells need extra soldering during making.
Laser cutting is another step in building the panels.
These extra steps make the panels cost more to produce.
Some new ideas, like 0BB, try to make building easier by removing busbars. But smbb half-cut solar panels need more careful work to make.
You might see a higher price when you buy these panels. The extra steps and careful work make them cost more. Still, these panels work better and last longer. The goal is to give you more power and strong panels.
You want to know if paying more is a good idea. The kind of solar panels you pick can change how much energy you get and how much you save. High-efficiency panels, like smbb half-cut cells, cost more at first. But they can help you save money later.
| Evidence Description | Cost Implication |
|---|---|
| High efficiency and power output | Higher initial investment but more savings later |
| Shorter current paths | Lower operational costs over time |
| Bifaciality (light from both sides) | More power, lower electricity bills |
Higher efficiency means you save more money over time.
Shorter current paths lower energy loss in your panels.
More power from your panels helps you pay less for electricity.
If you want the best value, smbb half-cut solar panels are a smart pick. These panels are good for homes and businesses that want more from solar energy. The extra cost pays off with better power and lower bills. Think about what you need and how much you want to spend before you choose your panels.
You can make your solar system better by picking smbb and half-cut cell technology. These panels give you more power and work well, with efficiency from 18.4% to 20.1%. They also last longer in bad weather.
The smart busbar design helps stop energy loss and gives you more power.
These panels can handle snow and wind, so they last a long time.
| Recommendation | Description |
|---|---|
| SMBB Design with Half-Cut Technology | Shorter paths for electricity and less energy loss. |
| Component Enhancements | New designs help panels work better and cost less. |
Think about these choices if you want more energy and panels that last when you upgrade your solar system.
SMBB stands for Smart Multi-Busbar. You see more thin wires on each solar cell. These wires help electricity move faster and lower energy loss. Your panels work better and last longer.
Half-cut cells split each solar cell into two smaller pieces. You get less resistance and more power. Your panels also stay cooler and last longer.
You pay more at first for SMBB half-cut panels. Over time, you save money because your panels make more power and last longer. Many people find the extra cost pays off.
Yes! SMBB and half-cut panels handle shade well. More busbars and split cells give electricity new paths. Your panels keep making power, even if part of them is shaded.
