Heterojunction Technology (HJT) Solar Panels represent a significant advancement in solar energy. This innovative technology combines monocrystalline and amorphous silicon layers to enhance performance and longevity. HJT solar panels can achieve efficiencies of up to 25%, which is considerably higher than traditional solar panel types. For example, Tongwei's HJT panel delivers 715 W of power with an impressive 23.0% efficiency. These panels feature a double-sided design that allows them to generate power from both sides, maximizing sunlight capture and energy production. HJT solar panels are an excellent option for harnessing renewable energy while ensuring reliability over time.
HJT solar panels use two silicon layers to work better, reaching up to 25% efficiency.
These panels can collect sunlight from both sides to make more energy.
HJT technology keeps energy loss low, even on cloudy days or in dim light.
They last over 30 years with little drop in how well they work, making them a smart long-term choice.
HJT panels avoid common problems like PID and LID, so they work well in all kinds of weather.
Making HJT panels is easier and uses less energy, which lowers costs over time.
They handle extreme heat better than regular panels, losing less efficiency in hot weather.
As people want more clean energy, HJT panels are likely to become very popular in the solar industry.
Heterojunction technology uses two silicon types—monocrystalline and amorphous—to make efficient solar cells. This smart design improves energy conversion by combining the best features of both materials. Monocrystalline silicon is great for producing electricity, while amorphous silicon reduces energy waste and absorbs more light. Together, they create solar panels that work better and last longer.
This technology has been around for decades. It was first created in the 1970s and became popular after Sanyo patented it in 1997. When the patent ended in 2010, more companies started using it, leading to big improvements. Today, these solar panels are known for their high efficiency and are expected to lead the solar market.
Heterojunction technology uses layers to turn sunlight into electricity. Each layer has a job to do. First, sunlight hits the top amorphous silicon layer, which absorbs and reflects light to the crystalline silicon layer. The crystalline silicon layer changes most of the sunlight into electricity. Any leftover light goes to the bottom amorphous silicon layer, so very little energy is wasted.
Here’s what each layer does in HJT solar panels:
| Layer Type | Function |
|---|---|
| Amorphous Silicon (Top) | Absorbs sunlight and reflects it to the crystalline layer. |
| Monocrystalline Silicon | Turns most sunlight into electricity. |
| Amorphous Silicon (Bottom) | Captures leftover light that passes through the other layers. |
This design makes the panels efficient and reliable, even in different lighting conditions.
The crystalline silicon layer is the main part of HJT solar cells. It turns sunlight into electricity very efficiently. Tests show it can reach up to 26.5% efficiency when paired with advanced methods like interdigitated back contact (IBC). Using thin layers of silicon, about 10 μm thick, also helps lower costs while improving performance.
The amorphous silicon layers help make HJT solar panels more efficient. These layers work with the crystalline silicon to reduce energy loss and absorb more light. They catch photons that might escape, helping the panel work at its best. This design also helps the panels perform well in dim light.
The indium tin oxide layer is a clear, conductive layer in HJT panels. It lets sunlight pass through while carrying electricity. This layer reduces electrical resistance and increases light transmission, keeping the panels highly efficient.
Metal electrodes collect and move the electricity made by the solar cells. In HJT panels, these electrodes are designed to block less sunlight, so more light reaches the active layers. This careful design helps the panels stay efficient and perform well.
Did you know? HJT solar panels lose only about 0.56% efficiency per year. This makes them one of the longest-lasting solar options, with over 30 years of reliable use, even in tough weather.
HJT solar panels are very efficient at turning sunlight into power. They can convert up to 25% of sunlight into electricity. This makes them more efficient than regular solar panels. You can get more energy from the same space. These panels also work well in hot weather because they lose less efficiency, with a low temperature drop of -0.24%/°C.
HJT panels have a special design that uses sunlight from both sides. This increases the energy they produce. Their bifaciality rate can reach up to 95%. The back side of the panel can add 10% to 35% more power. This makes them great for places where getting the most energy is important.
HJT solar panels are built to last a long time. They lose only about 0.56% efficiency each year. This means they can work well for over 30 years. Their strong design ensures they keep performing well for decades.
HJT technology helps avoid problems like PID (Potential-Induced Degradation) and LID (Light-Induced Degradation). These issues can lower the performance of regular panels. HJT panels are made to resist these problems, so they stay efficient and reliable.
Making HJT panels is simpler than making PERC panels. They need fewer steps and use lower temperatures during production. This saves energy and reduces pollution during manufacturing.
The cost to make HJT panels is expected to go down. Right now, it costs about $0.20 per watt to make them, which is cheaper than $0.46 per watt for PERC panels. As production improves, HJT panels will become even more affordable, making them a smart choice for solar energy.
HJT solar panels work well even in hot weather. They lose only 0.24% efficiency for every degree Celsius rise. This is called a low temperature coefficient. It means they lose less energy compared to regular solar panels. In hot places, this is a big advantage.
For instance, other panels may lose a lot of power in heat. But HJT panels keep working steadily. This makes them great for homes and businesses. They produce reliable energy all year, even in high temperatures.
HJT panels are built to handle tough weather. They work well in extreme heat, cold, and strong sunlight. Their two-sided design helps capture more energy in bad weather. They perform best in bright, cool conditions. Heat can lower their power, but cooling methods can help.

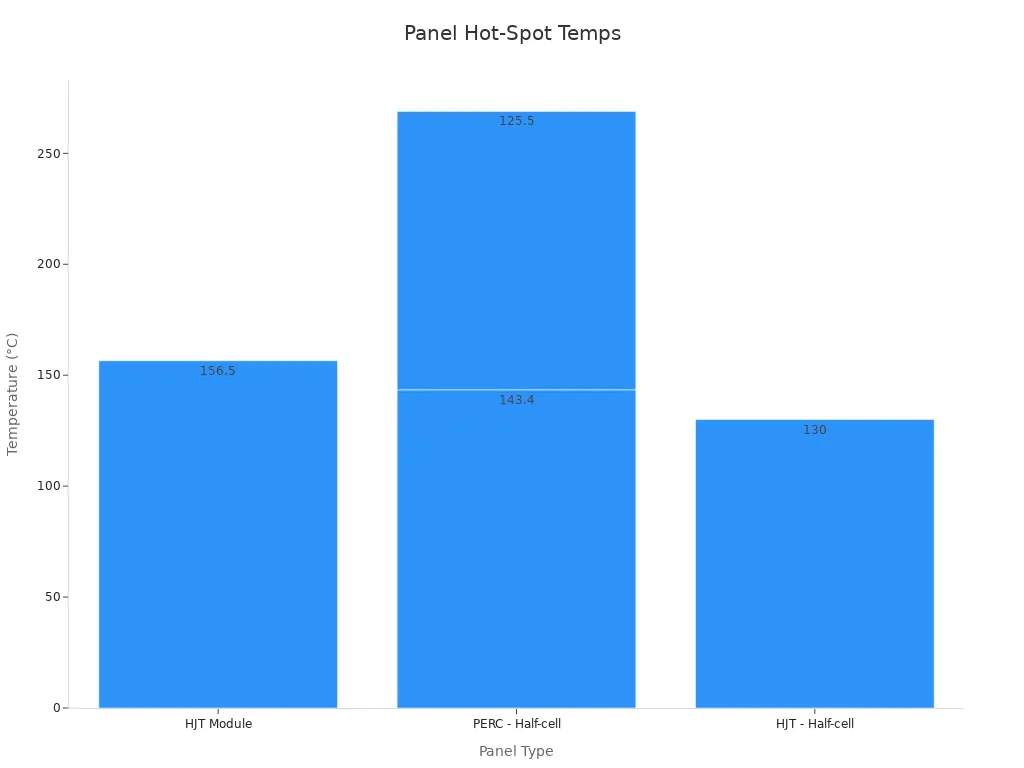

Studies show HJT panels manage heat better than others. For example, their hot-spot temperatures are lower than PERC panels. This helps them last longer and stay efficient.
| Panel Type | Hot-Spot Temperature (°C) |
|---|---|
| HJT Module | 156.5 |
| PERC - Half-cell | 143.4 |
| HJT - Half-cell | 130 |
| PERC - Half-cell | 125.5 |
This table shows HJT panels handle heat better than other types. They stay efficient in hot climates, producing steady energy.
HJT panels combine efficiency with toughness. They work well in extreme weather and are reliable for many uses. Their advanced design makes them a top choice for energy needs.
HJT panels work better than PERC panels in efficiency and bifaciality. HJT panels can reach 24% to 26% efficiency. PERC panels usually reach around 22%. This means HJT panels make more energy from the same sunlight.
HJT panels also collect sunlight from both sides. Their bifacial gain is over 90%, while PERC panels are lower. This makes HJT panels great for farms or big solar projects needing maximum energy.
Main benefits of HJT panels over PERC:
Better bifacial gain (>90%)
HJT panels last longer and lose less efficiency over time. PERC panels lose 2% efficiency in the first year. HJT panels lose only 0.56% each year. This helps HJT panels stay reliable for over 30 years.
HJT panels also handle heat better. They lose just 0.25% efficiency per degree Celsius rise. PERC panels don’t have clear data for this. HJT panels are better for hot places where heat affects solar power.
| Technology | Efficiency | Temperature Coefficient | Degradation Rate |
|---|---|---|---|
| PERC | >22% | N/A | Moderate |
| HJT | 24-26% | -0.25%/°C | Lower |
HJT panels work better than TOPCon panels in dim light. Their special design uses amorphous silicon layers to catch more light. This helps them make energy even on cloudy days or in shorter daylight hours.
TOPCon panels are good but don’t match HJT panels in dim light. If you need steady energy in changing weather, HJT panels are the better choice.
Making HJT panels is easier than making TOPCon panels. HJT panels need only four steps, while TOPCon panels need ten. This saves energy and lowers production costs over time.
HJT panels cost more to set up now, but they save money later. They are efficient, last longer, and work well in tough weather.
| Technology | Theoretical Efficiency | Mass Production Efficiency | Production Cost (Rs/watt) | Number of Processes |
|---|---|---|---|---|
| TOPCon | 28.7% | >24% | N/A | 10 |
| HJT | 27.5% | >24% | 10.73 | 4 |
HJT panels are strong, efficient, and cost-effective. They are great for places with dim light or extreme weather. HJT technology gives reliable energy and long-term value.

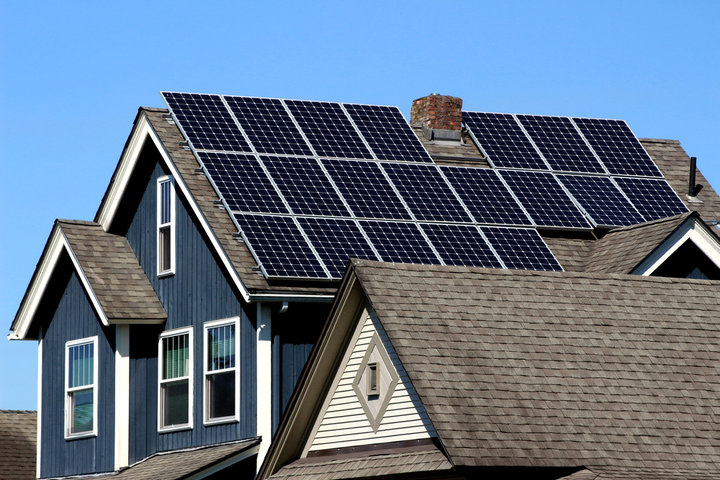

HJT solar panels work great for homes and businesses. They produce a lot of energy, even in small spaces. These panels give steady power all day, including mornings and evenings. Their smart design reduces energy loss and increases voltage.
They also perform well in tough conditions. For example, they work in hot areas or places with poor airflow. HJT panels lose less efficiency over time compared to regular PERC panels. This makes them a good choice for long-term use.
| Module Type | First-Year Degradation | Total Degradation at 25 Years | Cumulative Yield Difference (€ / 25 Years) | Typical Application Scenario |
|---|---|---|---|---|
| HJT | ≤0.8% | ≤13% | +15,000 | Projects with demanding environments and limited ventilation |
If you want to save more energy, choose HJT panels. They can capture sunlight from both sides, which is helpful in crowded cities with limited space.
HJT solar panels are great for farms. Their two-sided design collects sunlight from the front and back. This makes them very efficient in open fields. Farmers can use these panels to power sprinklers, greenhouses, and tools.
On farms, sunlight often bounces off the ground. HJT panels use their back side to absorb this light. This boosts energy production, even on cloudy days.
These panels are strong and handle bad weather well. Whether it’s hot or rainy, they keep working. Their durability makes them perfect for farms and rural areas with changing weather.
HJT solar panels are perfect for parking areas. Their two-sided design collects more sunlight, making more energy. This energy can power car chargers, lights, and other systems.
These panels also look modern and stylish. They fit well with new building designs and add value to parking lots. They provide shade while making clean energy, which is a win-win for owners.
HJT panels work well in shaded spots, like parking areas. Their advanced design ensures they make energy even with less sunlight. If you want to improve your parking spaces, HJT panels are a great option.
HJT solar panels work well in extreme weather areas. They perform reliably in both hot and cold climates. These panels keep making energy even in tough conditions. Their low temperature coefficient of -0.24%/°C means they lose less power in heat. This makes them better than regular panels in hot places.
In snowy areas, HJT panels stay efficient. They use their bifacial design to capture sunlight reflected by snow. This helps them make more energy during winter. Their strong build handles heavy snow and strong winds, making them durable.
If you live where weather is extreme, HJT panels are a good choice. They resist problems like PID and LID, ensuring long-term use. Whether it’s very hot or snowy, these panels keep producing clean energy for homes and businesses.
HJT solar panels are great for places with little sunlight. They work well in cloudy weather or short daylight hours. Their special design reduces energy loss and boosts voltage. This lets them start making power early and keep going late. You get more energy throughout the day.
These panels perform well in dim light situations:
Cloudy days: They keep making steady energy.
Morning and evening: High voltage helps them work during these times.
Snowy areas: They use reflected light from snow to make power.
| Condition | Performance Metric |
|---|---|
| Cloudy Days | Reliable energy production |
| Morning/Evening | High voltage for extended power |
| Snowy Areas | Dual-sided design captures reflected light |
If your area has cloudy or snowy weather, HJT panels are a smart pick. They use dim light efficiently to give steady energy. These panels are reliable and maximize power when you need it most.
The future of HJT solar panels looks bright. Growth is expected soon. This is due to better technology, government support, and rising clean energy demand. HJT panels are becoming a top choice for efficient solar power. Asia-Pacific, especially China, leads with big solar projects and strong manufacturing.
| Key Factors Driving Growth | Description |
|---|---|
| Technological Advancements | Better HJT production lowers costs and improves efficiency. |
| Government Incentives | Tax breaks and subsidies promote renewable energy use. |
| Increasing Demand | More people want clean energy solutions. |
| Regional Growth | Asia-Pacific leads with large solar installations. |
| Positive Market Outlook | The market may grow to billions of USD by 2033. |
This growth shows HJT technology’s role in meeting global energy needs.
HJT technology keeps improving. Researchers aim to make it more efficient and cheaper to produce. New designs, like bifacial panels, help capture more sunlight. The market value of HJT panels may grow from $1.99 billion in 2024 to $4.96 billion by 2030. This is a yearly growth rate of 16.25%.
Key reasons for these improvements include:
Higher demand for efficient solar panels.
Government rules supporting green energy.
New methods that improve production.
These changes keep HJT technology competitive and reliable.
HJT panels might replace PERC as the top solar choice. PERC panels are popular now but have nearly reached their efficiency limit of 24.5%. HJT panels offer better efficiency and work well in tough weather.
| Factor | HJT Technology | PERC Technology |
|---|---|---|
| Production Costs | 20-30% higher than PERC | Lower production costs |
| Efficiency | Higher potential than PERC | Limited to ~24.5% |
| Manufacturing Complexity | More advanced processes required | Simpler production methods |
| Market Competition | Competes with TOPCon and IBC | Established market presence |
HJT panels cost more to make, but new ideas are solving this. Experts think HJT will grow after 2024 and pass PERC as the top solar tech. Its high efficiency and durability make it a strong choice for clean energy.
Heterojunction technology (HJT) solar panels are a big step forward. They are very efficient and turn sunlight into energy better than older panels. These panels are strong and work well even when there isn’t much light. This makes them useful in many places. New ways of making them have also lowered costs, making them a smart choice for solar power.
| Feature | Proof |
|---|---|
| High Efficiency | HJT panels convert sunlight into energy better than older ones. |
| Strong and Reliable | They work well in dim light, so they can be used anywhere. |
| Lower Costs Over Time | New production methods and larger-scale manufacturing have made them cheaper to produce. |
As prices keep falling and efficiency gets better, HJT panels could change solar energy. Their special design makes them great for tough conditions. They offer clean, steady energy for the future.
HJT panels use two silicon types: monocrystalline and amorphous. This mix cuts energy loss and absorbs more sunlight. They also collect sunlight from both sides, making more power. These features help them reach up to 25% efficiency.
Yes, they work well in tough weather. They lose less power in heat due to a low temperature coefficient of -0.24%/°C. Their strong build resists heavy snow, strong winds, and harsh climates, making them dependable anywhere.
HJT panels last over 30 years. They lose only 0.56% efficiency each year, which is slower than regular panels. This means they keep producing energy for a long time, saving money over the years.
Yes, they are great in low light. Their special layers catch more sunlight, even on cloudy days or during mornings and evenings. This helps them make steady energy all day, no matter the weather.
Right now, they cost more to produce than regular panels. But their simpler production steps will lower costs soon. Their high efficiency and long life also save money over time, balancing the upfront cost.
Bifaciality means a panel can use sunlight from both sides. HJT panels have up to 95% bifaciality, letting them make extra power from reflected light. This is especially useful in open fields or snowy places.
HJT panels are better than PERC panels in many ways. They convert more sunlight into energy (up to 25%) and last longer. Their two-sided design also makes more power, making them a top choice for solar energy.
Yes, they are eco-friendly. Making them uses less energy and creates fewer emissions. Their long life and high efficiency reduce waste, making them a green choice for clean energy.
