How to Balance LiFePO4 Battery Cells for Maximum Performance

You can balance LiFePO4 battery cells for best performance by making sure the voltages match. Charge the cells all the way. Use a balancing method to help. Check that each cell has the same voltage. A Battery Management System stops overcharging or undercharging. This keeps your battery safe. Balancing LiFePO4 battery cells stops heat from building up. It also helps the battery last up to 20% longer. You lower the chance of early failure. You also make the battery work better.

Key Takeaways

• Balancing LiFePO4 battery cells makes sure all cells have the same voltage. This helps the battery work better and last longer.

• Use a Battery Management System (BMS) to watch and balance the cells. This keeps the battery safe and helps it last longer.

• Check and balance your cells often, especially if you use your battery every day. This stops the battery from getting too hot or breaking early.

• Always make sure cell voltages match before putting the battery together. This helps the battery work well and last a long time.

• Watch for signs of imbalance, like voltage drop or too much heat. Fix these problems quickly to keep your battery healthy.

Why Balance LiFePO4 Battery Cells

Performance and Lifespan

Balancing LiFePO4 cells helps them work well together. Each cell needs the same voltage. This lets the battery give all its power. If one cell has less charge, it holds back the pack. Every cell should help carry the load. This keeps the battery strong and healthy.

Tip: Check each cell’s voltage before using your battery pack.

Manufacturers say balancing gives many good results. Here is a table that shows why balancing is important:

Balanced LiFePO4 cells last longer. They do not get stressed as much when charging or discharging. This helps your battery work well for more years.

Risks of Imbalance

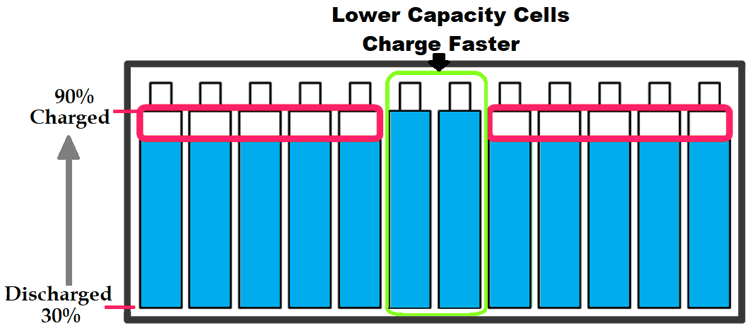

If you do not balance LiFePO4 cells, problems can happen. Imbalance means some cells have more charge than others. This can make the battery lose power faster. It can also make some cells get too hot. Over time, this can damage the cells and shorten the battery’s life.

• Imbalanced cells can cause:

  • Less efficiency, so you get less power.

  • Shorter lifespan, because some cells wear out faster.

  • Safety risks, like overheating or fire.

Cell imbalance can make your battery less reliable. If one cell gets too weak, it hurts the whole pack. Even a Battery Management System can have trouble if cells are too unbalanced. You should check and balance your cells often to avoid these risks.

Tools and Safety for Balancing LiFePO4 Batteries

Essential Tools

You need the right tools to balance your battery cells safely and correctly. Each tool has a special job. Here are the main tools you should have:

• Battery Management System (BMS): This device helps your battery last longer. It checks each cell and balances them for the best performance.

• Balancing Board: This board makes sure all cells reach the same voltage. It moves power between cells to keep them even.

• External Balancer: You can use this device to balance cells if your battery does not have a built-in system.

• Charger With Balancing Function: This charger can sense when cells are full. It changes the charging current to keep all cells balanced.

• Multimeter: You use this tool to measure the voltage of each cell. It helps you check if the cells are balanced.

Tip: Always check your tools before you start. Make sure they work well and are safe to use.

Safety Precautions

You must stay safe when working with lifepo4 batteries. Here are some important safety steps:

• Install a reliable Battery Management System. It protects your battery from overcharging, over-discharging, and getting too hot.

• Use high-quality parts when you build or fix your battery pack. Good parts lower the risk of problems.

• Wear safety glasses and gloves to protect yourself from sparks or leaks.

• Work in a clean, dry place. Keep water and metal objects away from your battery.

• Never leave your battery charging without watching it. Stay close so you can stop charging if something goes wrong.

Note: Safety comes first. If you are not sure about a step, ask an expert for help.

How to Balance LiFePO4 Battery

Voltage Matching Before Assembly

Start by making sure each cell has the same voltage. This is called voltage matching. Pick cells with similar voltage, capacity, and resistance. Doing this helps balance LiFePO4 battery packs from the beginning. If you skip this, some cells may charge or drain faster. This can cause problems and make your battery not last as long. When you match the cells, they work together better. Your battery will last longer and work well.

Tip: Use a multimeter to check each cell’s voltage. Pick cells with voltages that are very close.

Top Balancing Process

Top balancing is an important step for LiFePO4 battery cells. You want all cells to reach the same high voltage at once. This helps you get the most power and keeps your battery safe.

Follow these steps to top balance LiFePO4 battery cells:

1. Charge your battery pack with a charger until it is about 95% full. This brings most cells close to 3.6V.

2. Set your DC power supply to 3.6V and a low current, like 1A. Do not change the voltage after you connect it.

3. Connect the positive end of the power supply to the first cell’s positive end. Connect the negative end to the last cell’s negative end.

4. Watch the cell voltage with a multimeter. The power supply will slowly raise each cell’s voltage to 3.6V.

5. When all cells reach 3.6V, unplug the power supply.

6. Now your cells are top balanced.

Always charge to about 95% to 100% before top balancing. This makes the process work better and keeps your battery safe.

Note: Never leave the battery alone during this step. Always watch the cell voltage so you do not overcharge.

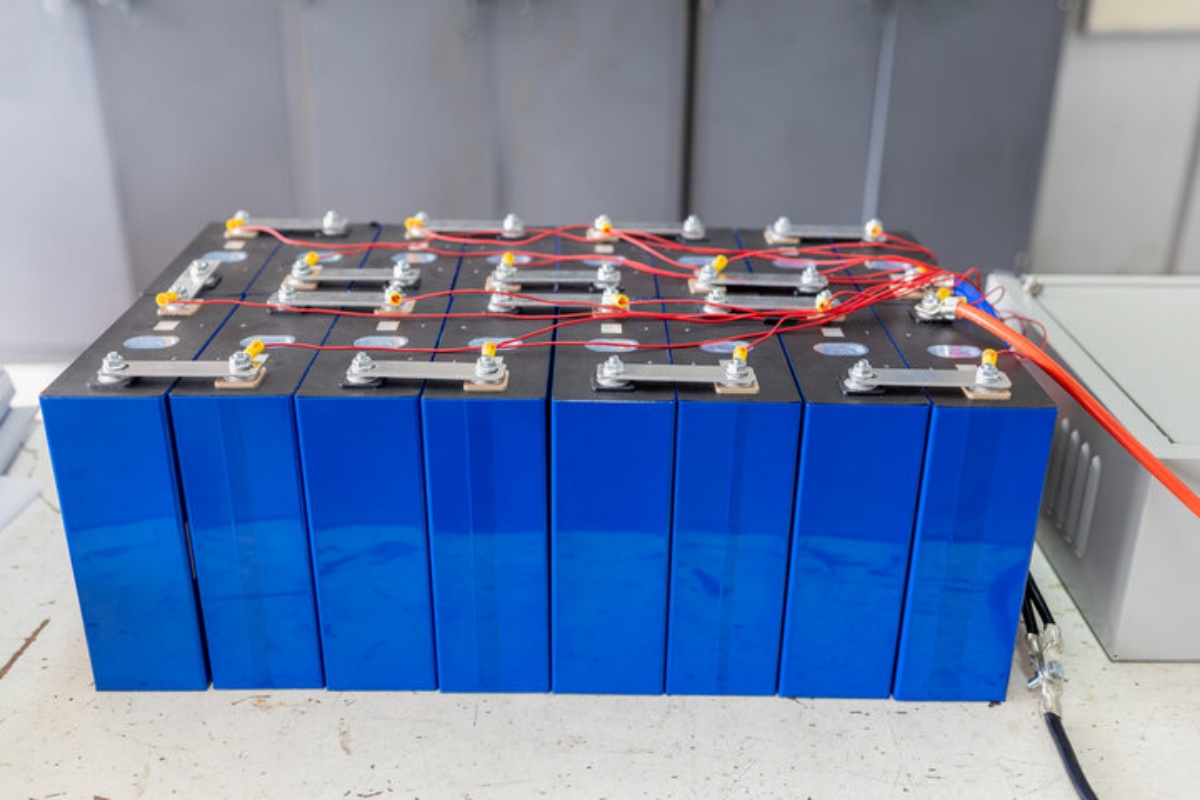

Using a BMS or Balancer

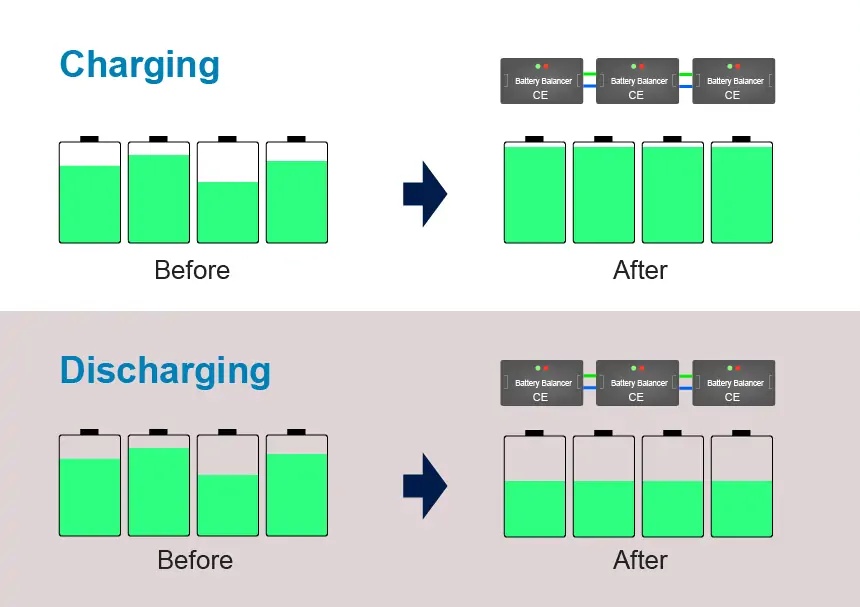

A Battery Management System or external balancer helps balance LiFePO4 battery cells while you use them. The BMS checks each cell’s voltage. It makes sure all cells charge and drain evenly. This stops problems like overcharging or draining too much, which can hurt your battery. You can set limits with a BMS. This lets you make a charging plan that fits your needs and helps your battery last longer.

There are different ways to balance LiFePO4 battery cells. Here is a table that shows the main types:

Active balancing is best if you want fast and efficient results. It can fix problems quickly and gives you more battery power. It costs more, but you get better performance and longer battery life.

Tip: For the best results, use an active balancer. It helps balance LiFePO4 battery packs faster and better.

Verifying Cell Balance

After you balance LiFePO4 battery cells, you need to check your work. You want every cell to have almost the same voltage. Here is how you can check cell balance:

1. Charge the battery all the way. Use a voltmeter to check each cell’s voltage. If you see a gap bigger than 0.03V, you may need to balance again.

2. Put a load on the battery. Watch how each cell’s voltage drops. If one cell drops much faster, it may still be unbalanced.

3. Check your BMS for alerts or logs. Some smart BMS units keep records of problems.

4. Use a smart charger with balance mode. See how long it takes to balance the cells. If it takes a long time, your cells may need more balancing.

The best balance is when the voltage difference is less than 15mV to 20mV. If you keep the difference small, your battery will work better and last longer.

Note: Always balance LiFePO4 battery cells while charging. This gives you the best results.

Tips for Effective Balancing and Common Mistakes

• Always use a good BMS or balancer to balance LiFePO4 battery packs.

• Never skip voltage matching before you build your battery.

• Do not leave your battery alone while charging or balancing.

• Do not mix old and new cells in one pack.

• Check the cell voltage often, especially after balancing.

If you follow these steps, you will balance LiFePO4 battery cells safely and get the best performance from your battery.

Balancing LiFePO4 Cells Maintenance

How Often to Balance

You should check and balance your LiFePO4 cells often. How often you do this depends on how you use your battery. If you use your battery every day, check and balance the cells more. Most people find that checking once a month is enough. Some battery packs have a BMS that balances LiFePO4 cells by itself. This system keeps the voltages even and stops damage.

• Checking and balancing often keeps your battery safe.

• The BMS helps balance LiFePO4 cells and stops overcharging or draining too much.

• How you use your battery changes how often you need to balance.

Tip: Set a reminder to check your battery pack’s balance every month. This helps your battery last longer.

Signs Balancing Is Needed

You can tell when your cells need balancing by looking for some signs. These signs can show up when you charge, use, or discharge your battery.

If you see any of these signs, check your cells and balance them soon. This will help your battery last longer.

Troubleshooting Issues

Sometimes, balancing LiFePO4 cells does not work right. One cell might lose voltage faster than the others. Very hot or cold weather can make balancing harder. Heat makes cells wear out faster. Cold makes resistance go up.

• Check cell voltages often with a BMS or multimeter.

• Use tools like battery analyzers to watch how your battery works.

• If you find a problem, check all wires and reset your BMS.

• Change any cell that keeps falling behind, even after balancing.

• Charge and use your battery all the way a few times to help balance the cells.

• Do not let your battery get too empty and keep it at a safe temperature for best life.

Note: Not all problems show up right away. Check your battery often so you can fix issues early.

If you balance your battery cells often, they will work better and last longer. This also makes your battery safer. Always use the right tools and follow safety rules. Make balancing your cells a regular habit. If you want to learn more, try these advanced ideas:

If you want to know more, read about active cell balancing, DC-DC converters, and charge shuttling.

FAQ

How do you know if your LiFePO4 cells are balanced?

You check each cell’s voltage with a multimeter. If all cells show nearly the same voltage (within 0.02V), your pack is balanced. Big differences mean you need to balance the cells.

Can you mix old and new LiFePO4 cells in one pack?

You should not mix old and new cells. Old cells have less capacity and may cause imbalance. Always use cells with similar age and health for best results.

What happens if you never balance your LiFePO4 battery?

If you skip balancing, some cells may overcharge or over-discharge. This can cause heat, swelling, or even failure. Your battery will not last as long or work as well.

Do you need a BMS for every LiFePO4 battery pack?

You need a BMS for safety and easy balancing. It protects your battery and makes maintenance simple.
