Imagine you want to put up solar panels. You see words like efficiency, wattage, and temperature coefficient on the box. You might feel confused. PV panel specifications give you facts to help you pick the right system. When you look at a solar panel specifications sheet, you find out how much power the panel can make. You also learn how it works in real life. The table below shows why knowing these specifications helps you make better choices and have good installations:
| Specification | Importance |
|---|---|
| Efficiency | Higher efficiency means the panel works better and makes more energy. |
| Wattage (Power Output) | Shows the most electricity the panel can make, which helps you guess how much energy you will get. |
| Temperature Coefficient | Changes how the panel works when it gets hotter or colder; knowing this helps you pick the best panels. |
Knowing solar panel specifications helps you pick the best system for your energy needs.
Panels with higher efficiency make more electricity from sunlight. These are good for homes with small roofs.
Check the temperature coefficient to see if your panels work well in hot weather. Lower numbers mean better performance.
Always look at power output and efficiency ratings on the specification sheets. This helps you make smart choices.
Find panels with strong warranties and certifications. This shows the panels are good quality and will last a long time.
A solar panel is more than just a shiny surface. It has numbers and words called pv panel specifications. These show how the panel works and what you can expect. You might see these numbers on a label or in the manual. This label is called a specification sheet.
You will often see these things listed:
Power Output (Wattage)
Efficiency
Voltage at Maximum Power (Vmp)
Current at Maximum Power (Imp)
Open Circuit Voltage (Voc)
Short Circuit Current (Isc)
Temperature Coefficients
STC vs. NOCT Ratings
Warranty and Lifespan
Dimensions and Weight
Certifications
Each thing helps you know how the panel will work at your home or business. The specification sheet is like a report card for the panel. It gives you facts to help you compare different panels.
You need to know what these numbers mean before picking a solar panel. The right photovoltaic panel specifications help you match your energy needs and roof space. If you want the best from your solar system, you must check the details.
Specification sheets help homeowners, designers, and installers make good choices. You can use them to compare panels and pick the best one for your project. Some tools, like the FEMP tool, let you change solar panel specifications for your needs. Here is how the FEMP tool works:
| Step | Description |
|---|---|
| 1 | Pick your array type(s) and any special topic(s) you want |
| 2 | Click the 'Create Template on Clipboard' button |
| 3 | Paste the copied specifications into a blank document |
| 4 | Read the disclaimer and instructions on page 1 of your copied specifications |
When you understand the specification sheet, you can feel sure about your solar choice.
When you look at pv panel specifications, you see lots of numbers and words. Each one tells you something about how your solar panels work. If you know what these solar panel specifications mean, you can compare products. This helps you pick the best system for your home.

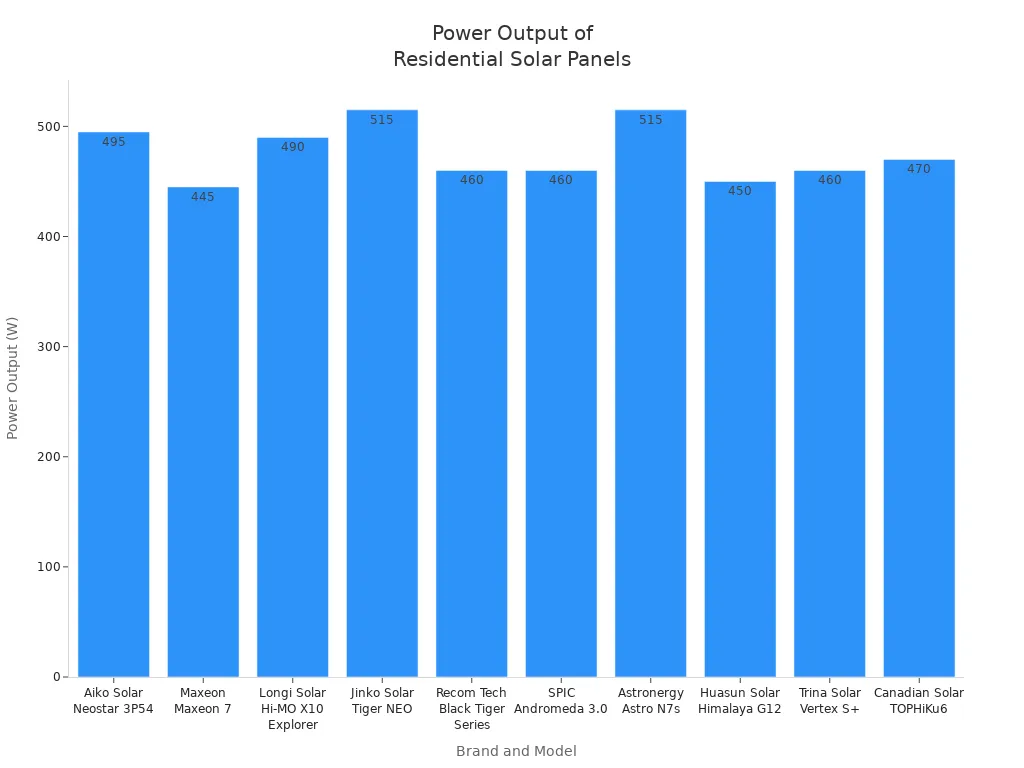

Power output, called Pmax, shows the most electricity a panel can make. This number is measured in watts (W). Most home solar panels today have a power output near 400 watts. Some panels can be as low as 370 watts. That is still enough for many homes. Some top models can go up to 515 watts.
| Brand | Model | Power Output | Efficiency |
|---|---|---|---|
| Aiko Solar | Neostar 3P54 | 495 W | 24.8 % |
| Maxeon | Maxeon 7 | 445 W | 24.1 % |
| Longi Solar | Hi-MO X10 Explorer | 490 W | 24.0 % |
| Jinko Solar | Tiger NEO | 515 W | 23.8 % |
| Recom Tech | Black Tiger Series | 460 W | 23.6 % |
| SPIC | Andromeda 3.0 | 460 W | 23.6 % |
| Astronergy | Astro N7s | 515 W | 23.2 % |
| Huasun Solar | Himalaya G12 | 450 W | 23.0 % |
| Trina Solar | Vertex S+ | 460 W | 23.0 % |
| Canadian Solar | TOPHiKu6 | 470 W | 23.0 % |
Tip: When you compare solar panel output, look at the Pmax value. More power output means you need fewer panels for your energy needs.
Voltage and current ratings help you match your solar panels with other system parts. These include inverters and wires. You will see four main numbers:
| Parameter | Unit | Typical Value | Significance |
|---|---|---|---|
| Open Circuit Voltage (Voc) | Volts | 30V-50V | Max voltage, affects inverter compatibility |
| Short Circuit Current (Isc) | Amps | 8A-10A | Max current, helps with wire and fuse size |
| Max Power Point Voltage (Vmp) | Volts | 70%-80% of Voc | Voltage at max power, affects system efficiency |
| Max Power Point Current (Imp) | Amps | 8A-10A | Current at max power, goes with Vmp |
You need to make sure your panels do not go over the max voltage or current your inverter can handle. For example, if your inverter has a max voltage of 480V and a max current of 17A, you must stay under these limits. This keeps your system safe and working well.
| Specification | Value |
|---|---|
| Max PV Input | 8000W |
| Max Voltage | 480V |
| Max Usable Current | 17A |
| Max Short Circuit Current | 25A |
| Over Paneling Consideration | Too much current may not help if system is stable. |
| Safety Margin Recommendation | Stay under max voltage at coldest temperature. |
Note: Always check these ratings on the solar panel specifications sheet. This helps you avoid problems and keeps your system safe.
Efficiency shows how well a panel turns sunlight into electricity. Higher efficiency means the panel makes more power from the same sunlight. This matters a lot if your roof space is small.
| Type of Solar Panel | Efficiency Range |
|---|---|
| Monocrystalline | 15% - 22% (up to 24% for advanced) |
| Polycrystalline | 14% - 17% (some newer over 20%) |
| Thin-Film | 7% - 15% (some lab results higher) |
If you pick a panel with higher efficiency, you need less space for your energy needs. For example, a 400-watt panel with 22% efficiency uses about 20% less roof space than a panel with 17% efficiency. So, solar panel size and efficiency are important for homes with small roofs.
Higher efficiency panels make more electricity from sunlight, so you need less space.
A 400-watt panel with 22% efficiency uses about 20% less roof space than a similar panel with 17% efficiency.
Buying higher-efficiency panels is smart for homes with small roofs to get more energy.
Tip: If your roof is small, choose panels with high efficiency to get the most energy.
The temperature coefficient shows how much a panel’s power drops when it gets hot. Most commercial panels have a temperature coefficient between -0.30% and -0.36% per degree Celsius. A lower number means the panel works better in hot weather.
Most commercial solar panels have a temperature coefficient from -0.30% to -0.36% per °C.
A lower temperature coefficient means better performance in hot weather.
In hot places, high temperatures can lower power output because of more resistance and less voltage.
Note: If you live in a hot place, pick panels with a lower temperature coefficient for better performance all year.
Manufacturers test solar panels in two main ways: Standard Test Conditions (STC) and Nominal Operating Cell Temperature (NOCT). STC uses perfect lab settings: sunlight at 1000 W/m², cell temperature at 25°C (77°F), and air mass of 1.5. This gives the highest power rating you see on the specification sheet.
NOCT gives you a better idea of how your panels work outside. It uses an air temperature of 20°C (68°F), sunlight at 800 W/m², and a light breeze. This helps you know what to expect from your solar panel output in real life.
Tip: Always check both STC and NOCT ratings on the photovoltaic panel specifications. STC shows the best-case, while NOCT tells you what to expect on your roof.
By learning about these key solar panel specifications, you can compare panels, guess how they will work, and make smart choices for your solar setup.

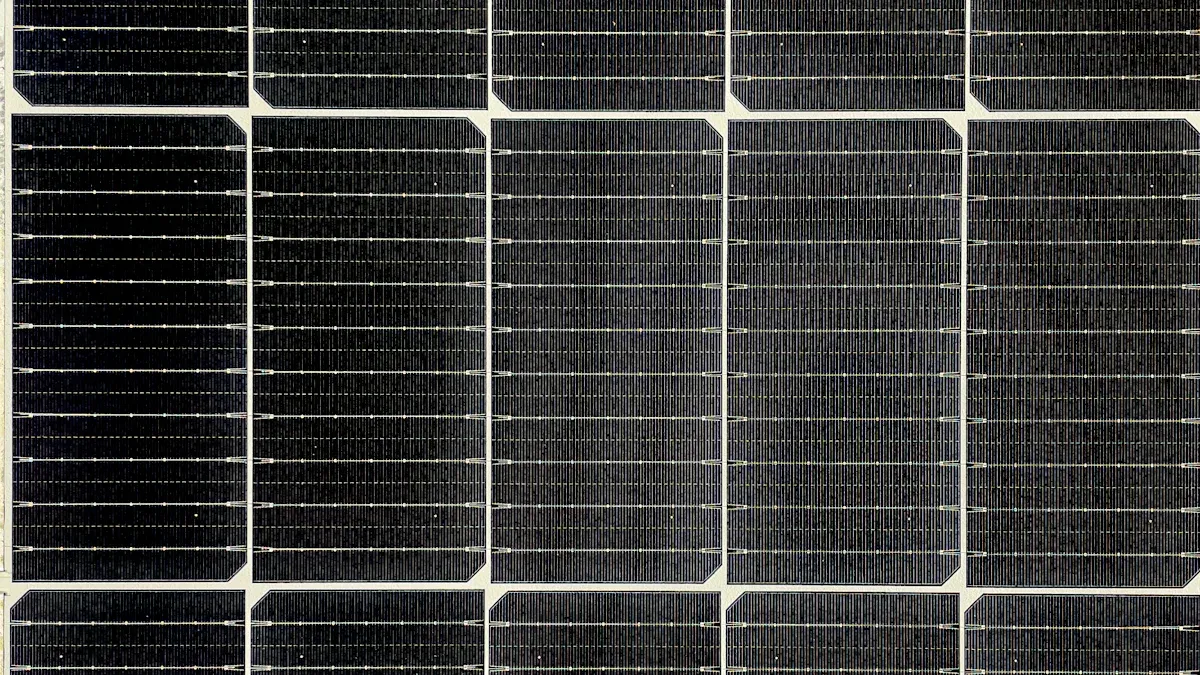

Solar panels can look different and work in different ways. The cell type is very important. It changes how much energy you get. It also affects how long your panels last. The cell type helps decide if the panels fit on your roof. There are three main types. These are monocrystalline, polycrystalline, and thin-film.
Monocrystalline panels use cells from one silicon crystal. This design helps electrons move fast. These panels have higher efficiency. They look dark black and have smooth edges. They are good for small spaces if you want more power.
Structure: Single crystal, smooth surface
Appearance: Dark black, rounded corners
Monocrystalline panels last longer than other types. They lose less power each year.
Polycrystalline panels use cells from many silicon crystals. The crystals are melted together. These panels look blue and speckled. Mixed crystals slow down electrons. This means lower efficiency than monocrystalline.
Efficiency range: 15% - 17%
Structure: Multiple crystals, grainy surface
Appearance: Blue, square edges
Polycrystalline panels cost less than monocrystalline. You may need more panels to get enough energy.
Thin-film panels use a special method. Makers put a thin layer of material on glass or metal. These panels are light and flexible. You can use them where other panels do not fit.
Efficiency range: 10% - 13%
Structure: Thin layer on a backing material
Appearance: Uniform, sometimes black or dark blue
Thin-film panels lose power faster over time. They may not last as long as other types.
Here is a table to help you compare the three cell types:
| Type of Solar Panel | Efficiency Range | Structure Description |
|---|---|---|
| Monocrystalline | 17% - 22% | Made from one silicon crystal. Electrons move easily. This gives higher efficiency. |
| Polycrystalline | 15% - 17% | Made from many silicon crystals. Electrons move slower. This lowers efficiency. |
| Thin-film | 10% - 13% | Made by putting a thin layer on a surface. This gives lower efficiency. |
Think about your roof space and budget before you choose. Also, think about how long you want your solar panels to last. The cell type you pick will change your solar experience.
When you look at solar panel dimensions, you notice most residential panels share similar measurements. The average solar panel size is about 65 inches long and 39 inches wide. This covers roughly 17.5 to 18.3 square feet. You usually see two main types: 60-cell panels and 72-cell panels. The 60-cell panels fit well on homes with limited roof space or tricky angles. These panels produce between 350 and 450 watts. The 72-cell panels are larger, arranged in a 6x12 grid, and can make 400 to 600 watts. If you want more power and have enough space, you might choose the bigger panels.
Most residential panels measure 65-66 inches by 39-40 inches.
60-cell panels work best for small or complex roofs.
72-cell panels suit homes with more space and higher energy needs.
Installers recommend leaving 2-3 inches between panels for airflow and easy maintenance.
You need to think about the weight of each panel before installation. Most panels weigh between 40 and 50 pounds. This weight is manageable for most roofs, but you should check your roof’s strength. Older buildings or homes in areas with heavy snow or strong winds may need extra support. Different roofing materials hold weight differently. You must match the mounting system to your roof’s structure to keep everything safe.
Tip: Always ask your installer to check your roof’s load capacity before adding panels.
Solar panel size and weight affect how you install your system. Larger and heavier panels can give you more power, but they may cost more to transport and install. Smaller and lighter panels are easier to handle and may lower labor costs. You need more panels to reach your energy goals if you choose smaller ones. A typical 5kW system uses 12-13 panels and covers 210-235 square feet, but you need 400-500 square feet when you include space for setbacks and hardware.
| Aspect | Impact on Costs |
|---|---|
| Component Dimensions | Bigger panels increase transportation costs. |
| Mass of Components | Heavier panels need special transport and may cost more to move. |
| Quantity of Components | More panels mean more trips and higher labor costs. |
| Design Considerations | Choosing the right size and weight can save money and make installation easier. |
You should balance your energy needs, roof space, and budget when picking panels. Understanding specifications like solar panel dimensions and weight helps you make smart choices for your solar system.
When you put up solar panels, you must think about shade and direction. Shade can come from trees, chimneys, or buildings nearby. Even a little shadow on one panel can lower energy for your whole system. Solar cells are linked together in a line. If one cell gets shade, it blocks the flow like a clogged pipe. The current drops for the whole panel. This is called the "Christmas light effect." You can lose a lot of energy if shade happens often.
Shade makes voltage drop in the shaded cell, which lowers current for all the cells in the line.
A shaded cell can turn reverse-biased and make hot spots. Hot spots can hurt the panel.
Bypass diodes help by letting current go around shaded cells, but you still lose some power.
The whole panel’s performance depends on just a few cells.
You should also think about which way the panels face. In North America, panels work best when they face true south. South-facing panels get the most sunlight during the day. This helps you get the most energy from your system.
Tip: Put panels where they get sun all day and keep them away from shade. Face them south for the best results.
Solar panel specifications show the best possible results, but real life is different. Makers test panels in labs using Standard Test Conditions (STC). These tests use perfect sunlight, a cell temperature of 25°C, and air mass of 1.5. In your yard, panels deal with clouds, changing temperatures, and uneven sunlight. These things lower the real output.
In real life, panels usually make 70-80% of their top power.
Nominal Operating Cell Temperature (NOCT) gives a better idea of real-world results.
Weather, dust, and shade can all lower the energy your panels make.
You should expect less power than the nameplate says. Always check both STC and NOCT numbers in the specifications. This helps you know what your solar system will give you at home.
Note: Real-world results depend on your location, weather, and how you set up your panels. Plan for these things to get the most from your solar panels.
When you pick solar panels, check the warranty first. The warranty tells you how long the panel should last. It also shows how much power it will make as time goes on. Most companies give two types of warranties: product and performance.
Product warranties last 10 to 15 years for most panels. Some top panels have warranties for 20 to 25 years.
Most solar panels have a manufacturer’s warranty. This covers problems and defects for 10 to 25 years.
Performance warranties promise your panel’s power will not drop more than 2% in the first year. After that, the drop stays under 0.5% each year.
Strong warranties mean the company trusts their panels. Good warranties protect your money and help you feel safe about your solar system.
Tip: Always read the warranty before you buy. Longer warranties mean your panels last longer and you worry less about fixing them.
Safety and certification ratings show if your panels meet important rules. In the U.S., panels need NRTL certification. This means your panel follows safety, health, and environment rules. Without NRTL certification, you cannot connect your panels to the public grid. You also lose government rebates and insurance.
Here is a table with the main certification standards:
| Region | Certification Standards | Organizations Involved |
|---|---|---|
| United States | UL 1703, NRTL certification | Underwriters Laboratories, NEC, OSHA |
| Europe | IEC, CE, MCS, ISO | TÜV SÜD, TÜV NORD, TÜV Rheinland, SGS, ECM, Intertek |
If your panels do not have NRTL certification in the U.S.:
You cannot connect to the public grid.
You do not get government rebates or tax credits.
OSHA does not approve your solar setup.
Insurance will not pay for damages.
Always check for these certifications before you buy panels. Certified panels are safer and last longer. They also help you get rebates and insurance.
Note: Solar panel durability and warranty depend on strong certification and good warranty terms. Always pick panels that meet these standards.
When you look at a solar panel specification sheet, you see lots of numbers and facts. These sheets help you learn how panels work and what makes each one special. You need to know how to read these sheets to make good choices.
A specification sheet gives you important details about each panel. You will find electrical data, mechanical data, size, I-V curve, tested conditions, warranties, and certifications. These details show how the panel will work and how long it should last.
Here are some steps to help you read and compare solar panel specification sheets:
Learn how to read the sheet for each solar panel.
Compare different brands using their sheets.
Figure out power and efficiency from the numbers.
Look for special features that might help your project.
Pick the panels that fit your needs best.
Tip: Always check the tested conditions and warranty information. These numbers help you guess how long the panels will last and how well they will work.
You want to pick the best solar panels for your home. Use the specification sheets to compare important things. Look for power output, efficiency, strength, size, temperature coefficients, and warranties. These features help you choose panels that work well.
Here is a table with helpful tips for picking solar panels:
| Factor | Description |
|---|---|
| Efficiency | Higher efficiency panels make more electricity from the same sunlight, so you need fewer panels. |
| Durability | Choose panels that can handle bad weather and have a strong warranty. |
| Cost vs Quality | Balance the price you pay now with how much you save later. Cheaper panels may not last as long. |
| Compatibility | Make sure panels fit your roof and work with your setup for the best results. |
| Technological Advancements | Look for new features that help make more solar energy. |
Studies show that specification ratings match how panels work over time. As years go by, panels can lose some power and voltage. You should use these ratings to guess how your solar panels will work in the future.
Note: Always compare specification sheets before you buy. This helps you find solar panels that fit your energy needs and last a long time.
You have learned how solar panel specifications help you choose well. When you look at different panels, use what you know. Check the power, efficiency, and warranties for each one. If you talk to a solar expert, you can get even better advice. They will check your roof size, how much weight it can hold, and the weather where you live. Here is what a professional can do for you:
| Specification | Why It Matters |
|---|---|
| Roof Space | Finds the right number of panels |
| Load-Bearing Capacity | Checks if your roof can hold panels |
| Temperature Coefficient | Picks panels for your climate |
| Warranties | Protects your investment |
| Certifications | Ensures safety and quality |
Look at your specification sheets and ask lots of questions. This helps you pick the best solar system for your house.
Solar panel efficiency tells you how much sunlight turns into electricity. Higher efficiency means you get more power from the same amount of sunlight. You need fewer panels for the same energy.
Check the panel’s size and weight on the specification sheet. Measure your roof space. Use a simple table to compare:
| Panel Size | Roof Space Needed |
|---|---|
| Small | Less |
| Large | More |
Panels lose power when they get hot. The temperature coefficient shows how much power drops for each degree Celsius. Pick panels with a lower number for better performance in hot weather.
Look for UL, IEC, or NRTL certifications. These show your panels meet safety and quality standards. Certified panels help you get rebates and connect to the grid.
