Choosing between single glass vs double glass solar panels depends on your location, budget, and project goals. Single glass solar panels are ideal in areas prone to heavy hail because they offer greater impact resistance and tend to break more safely. On the other hand, double glass solar panels perform better in harsh environments with high humidity or salty conditions, though they are more susceptible to cracking from large hail impacts. The table below highlights the key differences between single glass vs double glass solar panels:
| Feature | Single Glass | Double Glass |
|---|---|---|
| Impact Resistance | Higher | Lower |
| Environmental Durability | Good in hail | Good in humidity |
| Breakage Safety | Safer | Less safe |
Consider the pros and cons of single glass vs double glass solar panels to choose the option that best suits your current and future needs.
Single glass solar panels are light and easy to put in. They cost less at first. This makes them good for small jobs or if you have less money.
Double glass solar panels have glass on both sides. This makes them stronger and better in bad weather. They can make up to 30% more energy.
Double glass panels last longer. They do not get hurt by water or heat as much. They are best for places that are wet, salty, or stormy.
Single glass panels are tough against things like hail. But their plastic back can break down faster in hard weather.
The best panel for you depends on your money, where you live, how big your project is, and how long you want it to last. Talking to a solar expert can help you choose.
Single glass and double glass solar panels are two main types. Each type has its own features and benefits. Single glass panels have one sheet of tempered glass. This glass protects the solar cells inside. These panels are lighter than double glass panels. They are also easier to put on your roof. Many people pick single glass panels because they cost less. Their simple design makes them a popular choice. Double glass solar panels are also called bifacial panels. They use two sheets of glass instead of one. These sheets cover both sides of the solar cells. This gives the panels more protection. It also lets them catch sunlight from both sides.
Single glass panels usually have thicker glass, about 3.2 mm. This helps them stand up to things like hail. Double glass panels use two thinner glass layers. Each layer is about 2.0 to 2.5 mm thick. This keeps the panels from getting too heavy. But it can make them less strong against impacts. Double glass panels are better at handling bad weather. They also stay stable when it gets hot or cold. These panels work well in places with lots of humidity or salty air. They also give better insulation and block more noise.
Tip: Double glass solar panels can make up to 25-30% more energy. This is because they take in light from both sides.
| Characteristic | Single Glass Solar Panels | Double Glass Solar Panels |
|---|---|---|
| Construction | One sheet of tempered glass, simple and light | Two sheets of glass, front and back, for stronger protection |
| Durability | Less durable over time | Highly durable, resists weather, hail, snow, wind, and impacts |
| Efficiency | Standard, light from one side | Higher, collects light from both sides (bifacial) |
| Thermal Stability | Lower, may lose performance in heat | Improved, resists temperature changes |
| Weather Resistance | Moderate, less protection in extreme weather | Strong, withstands harsh conditions |
| Cost | More affordable | More expensive |
| Weight | Lighter, easy to install | Heavier, needs stronger mounting |
| Insulation & Soundproofing | Some insulation and soundproofing | Better insulation and noise reduction |
| Long-Term Performance | May show more wear and tear | Superior, consistent energy generation and durability |
Single glass solar panels have a simple design. They protect the solar cells and help make electricity. These panels have several main parts that work together:
The anti-corrosion aluminum frame is light. It keeps the edges safe and stops rust.
The protective tempered glass is one layer, about 3-4mm thick. It covers the front. Sunlight goes through it, but it also blocks hail and debris.
The EVA film is a clear plastic layer. It wraps around the photovoltaic cells. This keeps out heat and water.
The photovoltaic (PV) cells are made of silicon. They turn sunlight into electricity.
The backsheet is a strong plastic layer on the back. It keeps water out and makes the panel stronger.
This setup makes single-glass solar panels lighter than double glass ones. Installers like to use them on roofs where weight is important.
Note: The single-glass solar module is strong and easy to put in. That is why many people use it for homes and businesses.
Single glass solar panels are special because they are light, cheap, and work well. The table below shows some features that make them different from other panels:
| Feature | Single Glass Solar Panels (AE ME-120) | Comparison to Other Panel Types |
|---|---|---|
| Glass Layers | Single tempered glass with anti-reflective coating | Double glass panels have glass on both sides |
| Weight | 30.9 kg | Generally heavier than single glass panels |
| Panel Thickness | 35 mm | Thicker in double glass modules |
| Operating Temperature Range | -40 to 85 °C | Similar or slightly different in other panel types |
| Junction Box Protection | IP68 | Varies, but robust protection noted |
| Power Output Range | 580W to 600W | Comparable or higher in some double glass panels |
| Warranty | 15-year product, 30-year power warranty | Comparable warranties in other panel types |
| Technology | PERC | Also used in other panel types |
| System Voltage | Up to 1500 V | Similar in other panel types |
| Design Benefits | Lighter weight, simpler construction, cost-effective, durable | Double glass offers enhanced durability and bifaciality |
Most single glass solar panels use one tempered glass layer. This layer has a special coating that cuts down glare. The design makes the panels light and easy to move. Some models, like the AE ME-120, give a lot of power and have long warranties. The simple build helps save money and makes putting them in faster. These panels work in many places and give steady energy for a long time.

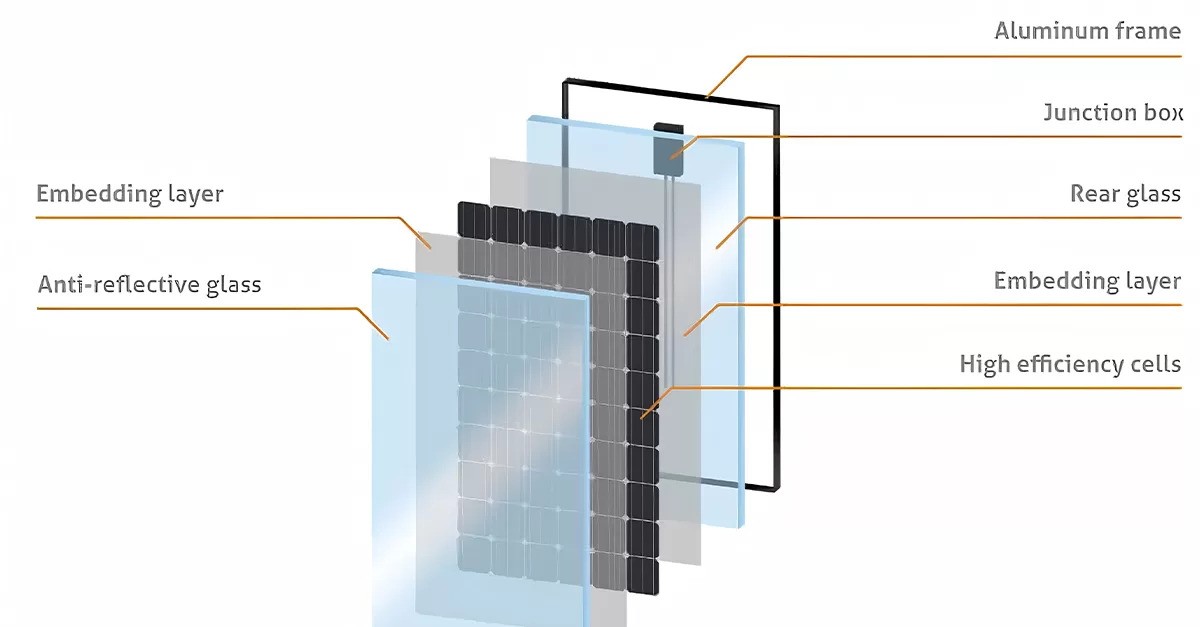

Double glass solar panels have a special design. They use two sheets of tempered glass. The solar cells sit between these glass layers. Each glass sheet is about 2mm thick. Both glass sides protect the cells from weather and damage. A special resin holds the cells in place. This resin also makes the panel stronger.
These panels use several important materials. The front and back glass have low iron and a coating. This coating lets in more sunlight and makes the glass last longer. The EVA film is a plastic that wraps around the solar cells. It keeps water out and helps the panel last. An aluminum frame goes around the edges. This frame makes it easier to install the panel. Some panels use extra resin for more strength.
| Material | Description & Role |
|---|---|
| Front and Rear Glass | High transmissive, low iron tempered glass with anti-reflective coating; boosts durability and light transmission. |
| EVA Film | Encapsulates solar cells, blocks moisture, and keeps the panel strong. |
| Aluminium Frame | Provides support, protects edges, and allows for mounting. |
| Special Resin | Fixes solar cells between glass panes in advanced designs. |
Double glass solar panels have a sandwich-like build. This gives them better protection and helps them last longer.
Double glass solar panels have many good features. The two glass layers protect the panels from hail and wind. They also keep out water. This strong build stops small cracks from forming. It helps the panels work well for a long time. The glass does not react with the cells or EVA film. This keeps the panels stable and lasting longer.
These panels can handle heat and cold better than single glass panels. The design helps get rid of heat, so they make more energy. Double glass solar panels lose less power as they age. Many companies give up to 30-year warranties. This shows they trust the panels to last a long time.
Double glass solar panels are also better at stopping fires. Installers can put them closer together to save space. Their strong build and water resistance make them reliable. They work well in tough places or where it is very humid. People who want panels that last and work well often pick these.
Image Source: pexels
Single glass and double glass solar panels are built differently. These differences change how they work and how long they last. The table below shows the main points:
| Aspect | Single Glass Solar Panels | Double Glass Solar Panels |
|---|---|---|
| Structure | Single glass layer on front + EVA + backsheet | Glass layer on front and back (no backsheet) |
| Front Material | Glass | Glass |
| Back Material | Synthetic backing material (backsheet) | Glass |
| Weight | Lighter | Heavier, may require stronger roof support |
| Light Absorption | Front side only | Both front and back sides (bifacial) |
Single glass panels have one glass sheet on the front and a plastic back. This makes them lighter and easier to move. Double glass panels have glass on both the front and back. This protects the solar cells better and can make them work better. Double glass panels can take in sunlight from both sides. This can help them make more energy.
How long a panel lasts is very important. Double glass panels protect better against water, heat, and damage. Their glass on both sides keeps out water and dirt. This helps them last longer and not break as easily.
Single glass panels protect less. The plastic back can wear out faster in bad weather. This can make them not last as long. Double glass panels last longer because glass does not break down as fast. They often need less fixing and work for more years.
Double glass panels are good for places with lots of rain, salty air, or storms. They keep working well for a long time.
Efficiency means how well a panel turns sunlight into power. Single glass panels only take in light from the front. This means they make less energy. Double glass panels, like bifacial ones, take in light from both sides. This helps them make more power, especially if there is snow or a light roof.
Double glass panels also handle heat better. They get rid of heat faster and do not get hot spots as much. This helps them keep working well over time. Single glass panels can lose power when it is very hot because they do not cool as well.
Double glass panels can make up to 25-30% more energy if the conditions are right. This is good for people who want the most power.
Cost is important for many people. Single glass panels cost less at first. They are simple and light, so they are cheaper to make and put in. This makes them a good pick for homes or small businesses with less money.
Double glass panels cost more at the start. The extra glass and strong build make them pricier. But they last longer and need less fixing, which can save money later. In big projects or tough weather, the higher price can be worth it because they last longer and need fewer repairs.
People who want to save money now may pick single glass panels. Businesses or people in rough weather may find double glass panels are a better deal over time.
Putting in these panels is different. Single glass panels are lighter and easier to lift. Installers can move and put them up faster. This means they are less likely to break and the job goes quicker.
Double glass panels are heavier and can break more easily. Installers must use special clamps and be careful not to crack the glass. Frameless double glass panels need three clamps, not two, and the clamps need rubber to stop damage. The extra weight and steps make the job harder and can cost more.
Glass-glass panels need more skill and care to install.
Special clamps and careful work are needed to stop breaks.
Many installers like single glass panels because they are easier and safer to put in.
Double glass panels work better and last longer but need skilled workers and more time to install.
Single glass solar modules have many good points. They are a popular choice for lots of solar projects. These modules can make more power each year than some other types. They also lose less power as they get older. One special thing is their breathability. This lets water and acetic acid molecules leave the module. It helps stop rust and slows down damage to metal parts inside. Because of this, single glass solar modules work well for a long time. They are less likely to break down. Tests like cobalt chloride color change and water checks show these results.
Many people and experts like single glass solar modules. They work well and last long, which is important in many places.
Some main good points are:
They are light, so putting them in is easier and safer.
They cost less at first than other panels.
They are strong against hits, like from hail.
They work well and keep making power for many years.
They are easy to move and carry because they are not heavy.
Single glass solar modules also have some bad points. People should think about these before picking them.
The plastic backsheet can react with chemicals and rust faster than glass backsheets.
They are not as strong, so they can bend if there is heavy snow or if someone steps on them.
Bending can make tiny cracks in the solar cells. This makes them work less well and not last as long.
The plastic backsheet can break down from chemicals more easily.
They do not last as long in tough places as double glass modules.
These things show that single glass solar modules have many good sides. But they are not always the best pick. People should think about the good and bad points, especially if they need something strong and long-lasting.
440W-460W Double-Glass Photovoltaic Solar Panel
Double glass solar modules have many good points for solar projects. They work well in tough places and last a long time. The table below shows how they compare to other types:
| Benefit Aspect | Double Glass Solar Modules | Glass-Backsheet Modules | Impact on Durability/Performance |
|---|---|---|---|
| Moisture Resistance | Superior hermetic seal, less moisture inside; power loss ~1.0% after long damp heat | More moisture gets in; power loss ~1.9% | Better protection against humidity, longer life |
| Mechanical Stress | Cells sit between two glass layers, less cracking | Cells face more stress, higher crack risk | Stronger under heavy loads |
| Bifaciality (Energy Yield) | 10-11% more energy from rear side | No extra energy from back | Higher total energy production |
| PID Resistance | Good resistance, stable power over time | Similar resistance | Keeps performance steady |
| Hail Resistance | Slightly lower, but meets safety standards | Slightly higher | Still safe for most locations |
| Weight | Heavier, about 25.1 kg per module | Lighter, about 20.0 kg | More robust, but heavier to handle |
Double glass solar panels keep water and stress away from the cells. They last longer in wet or humid places. These panels can make more energy because they use light from both sides. Their strong build helps them work well for many years. Many people pick double glass solar modules because they are reliable and last a long time.
Note: Double glass solar panels are best in places with lots of humidity or where you need them to last for many years.
Double glass solar modules also have some downsides. These problems can make them harder to use for some projects:
Double glass solar panels cost more to put in because of their special design.
It is harder to install them. Workers must be careful with the back side.
The site and DC design need more planning than other panels.
It is hard to guess how much extra power the back side will make. Many things can change how much energy comes from the rear side.
Planning money is tougher. The extra costs and unsure gains make it harder for investors.
The panels are heavier. This can slow down installation and may need stronger mounts.
Even though double glass solar modules can make 10-20% more energy, the extra gear and tracking systems cost more.
These things mean double glass solar panels are strong and work well, but they are not right for every project. Good planning and expert help are needed to make the best choice.
How much money you have is important when picking solar panels. Single glass panels cost less at first. They are light and simple to put up, so workers do not need as much time. This can make the job cheaper. Double glass panels cost more because they use more glass and are built stronger. But they can save you money later. They last longer and do not need as many repairs.
Tip: If you do not want to spend a lot, single glass panels are a good choice. If you want panels that last longer and need fewer fixes, double glass panels are better for big projects or businesses.
Where you live changes how well solar panels work. Weather and climate can make a big difference. Hot days can make panels work less well. For every degree hotter, they lose about 0.4 to 0.5% power. Humidity, dust, and dirty air can cut how much power you get, sometimes by a lot. In deserts, this can be up to 60%. Snow can cover panels and block sunlight, but it can also bounce light back and help make more power. Wind cools the panels and helps them work better. Sunlight and UV rays change how much energy the panels make.
If you live near the ocean with strong winds, you need panels that are shaped to handle wind and have strong mounts. In snowy places, panels should tilt more and be higher up so snow slides off. Tough weather needs panels that do not rust and have special coatings. Double glass panels are good for wet or stormy places because they keep out water and last longer.
The best solar panel depends on where you use it. The table below shows which panels work best for different jobs:
| Application Type | Recommended Solar Panel Types | Key Features and Benefits |
|---|---|---|
| Residential and Architecturally Sensitive Roofs | IBC panels | High efficiency, low degradation, lightweight, safe for roofs, and look good |
| Small to Medium Commercial Rooftops (<500 kWp) | TOPCon, Lightweight IBC modules | High efficiency, easy to install, good balance of cost and performance |
| Large-Scale Commercial Projects (≥500 kWp) | TOPCon, HJT bifacial modules | Stable over time, extra energy from both sides, strong and reliable |
| Special Applications (BIPV, Agrivoltaics, Carports) | IBC, HJT panels | Flexible designs, transparency, and lightweight for special needs |
Many top brands make panels for homes, businesses, and big solar farms. These panels use new technology to make lots of power. You should pick the panel that fits your project size and what you want to do.
Longevity means how long your solar panels will keep working well. Double glass panels usually last longer. They stop water from getting inside and protect against bad weather. Single glass panels use thicker glass, which is strong, but their plastic back can wear out faster in rough places.
Most good panels lose about 0.4% of their power each year after the first year. Double glass panels may lose power even slower because they keep out water better. If you want panels that last a long time and keep working well, double glass panels are a smart pick.
Note: If you want panels that last many years and work well in tough weather, double glass panels are a great choice.
New research shows double glass solar panels can make up to 17% more energy. They also last longer in places with tough weather. Single glass panels are easier to put in and cost less at first. Experts say you should pick the right panel for your project size, weather, and how much money you have. Solar technology changes fast, so learning new things helps you get the most out of your panels. To get the best results, ask a certified solar expert for help. They can help you choose, make sure the panels are put in right, and keep them working well for a long time.
A solar expert gives advice just for you, helps you not make expensive mistakes, and keeps your solar system working well.
Single glass panels have glass on the front and plastic on the back. Double glass panels have glass on both sides. This helps double glass panels last longer and stay safer.
Double glass panels can take in sunlight from both sides. This can help them make up to 30% more energy if the setup is right. But how well they work depends on where and how you use them.
Single glass panels are lighter and easier to move. Installers like them because they need less support. Double glass panels are heavier and need more care when putting them in.
Double glass panels cost more at first because of extra glass. Their strong build also adds to the price. But they can save money later since they last longer and need fewer repairs.
Single glass panels use thicker glass, so they are tougher against hail. Double glass panels can crack more easily if big hail hits them.
