What is solar module IBC technology?

Solar module ibc technology has a special back contact design. All electrical connections are behind the cell. The front side stays clear. More sunlight can reach the active surface. This means you get higher efficiency. This technology looks sleek. It works well in many conditions.

• IBC modules are getting more popular. Their market share was 2% in 2022. It may grow to over 50% by 2030.

Key Takeaways

• IBC solar modules have all electrical contacts on the back. This lets more sunlight hit the working surface. It helps the panels work better.

• These modules can reach up to 26.7% efficiency. This is much better than regular solar panels.

• IBC panels have a smooth, all-black look. This makes them look nice. Many people like them for homes and businesses.

• IBC technology cuts shading losses by up to 70%. This means they work well even if some shade covers them.

• These solar modules are strong and last over 25 years. They give steady energy in many types of weather.

• IBC panels are great for small spaces. They make more power with fewer panels. This saves money over time.

• Making IBC modules is hard and costs a lot. This is why they cost more than regular panels.

• New ideas in IBC technology will make them better. They will also help lower the cost, so more people can buy them.

What is IBC solar cell technology?

IBC cell definition

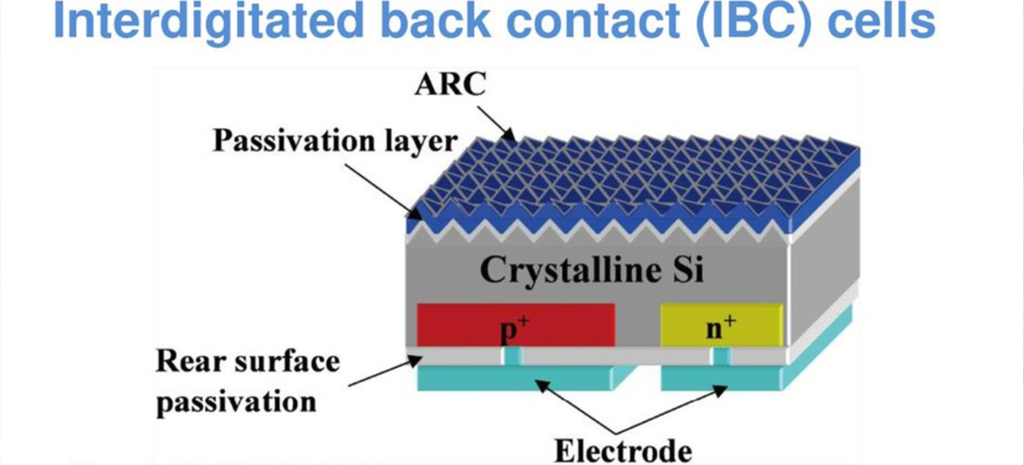

IBC solar cell technology means Interdigitated Back Contact solar cell technology. This kind of solar cell does not have metal contacts on the front. All the electrical connections are on the back. The first IBC design was made in 1975. This design helps the cell make more electricity. It also makes it easier to connect cells together in a solar module. IBC solar cells usually have efficiency between 21 and 24 percent. Some special types, when mixed with other technologies, can go over 25 percent. High-quality substrates, good surface passivation, and smart metallization on the back help make this possible.

When you look at an IBC solar cell, you see a smooth, dark front. There are no shiny metal lines on top. This lets more sunlight hit the cell, so it can make more electricity.

Key features of IBC design

IBC technology has some special features that make it different from other solar cells:

• All the contacts are on the back, so there is less shading and better efficiency.

• The back contact design gives more space for electrical connections, which lowers resistance.

• The front side only takes in light, while the back handles the electricity.

• Both the PN junction and metal contacts are on the back, so there is no shading from metal grids.

• PERC cells only cut down grid lines, but IBC cells remove them from the front completely.

• No busbars or metal fingers on the front means more sunlight gets in, so you get more energy per square meter.

• Having contacts on the back also helps protect against heat and moisture, so IBC panels work well in hot places.

• The all-black look makes these panels look nice on rooftops and where people can see them.

With no shading on the front, more photons get into the cell. Rear reflectors and special back surface fields can trap light inside, making the cell even better at making electricity.

Evolution of IBC technology

IBC technology has changed a lot since it was invented. There are some big steps in how it has grown:

• Engineers put all the electrical contacts on the back, so the cell can take in more light and look better.

• IBC solar cells are now some of the most efficient solar cells you can buy.

• Companies are now making lots of IBC devices, which shows the technology is ready for the market.

You will see more improvements soon. Researchers are working on better materials, smarter designs, and new ways to make IBC solar cells stronger and cheaper.

How does solar module IBC technology work?

Structure of IBC solar cells

Rear-side electrode arrangement

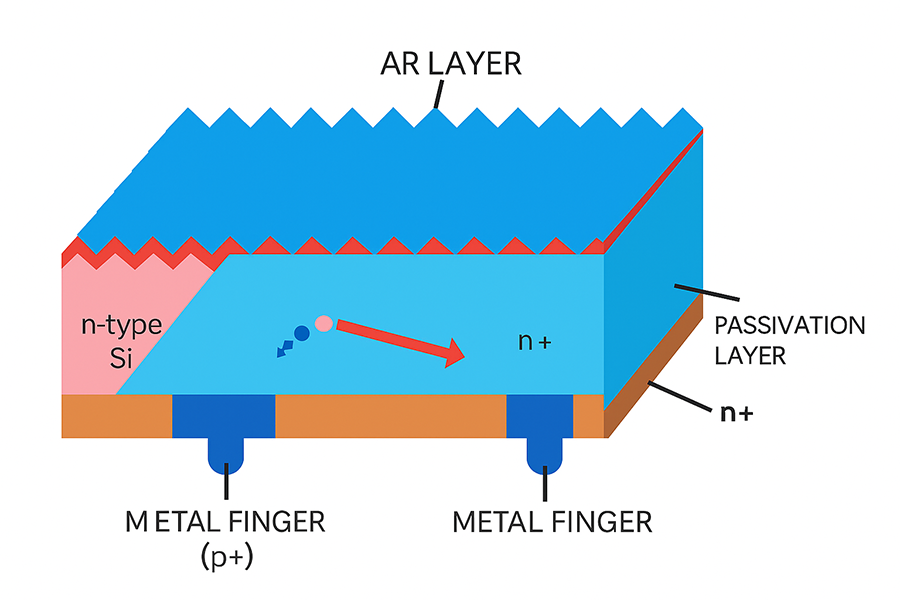

There is a big difference between IBC solar cells and regular ones. The metal contacts in IBC solar cells are all on the back. The front side stays clear, so sunlight can hit the cell without being blocked. This means each cell makes more energy because nothing shades the light.

Materials and architecture

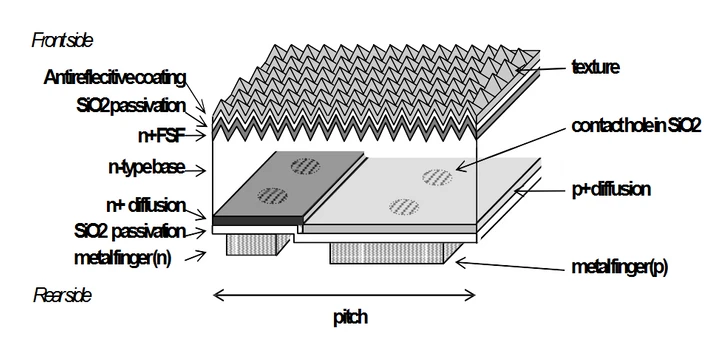

IBC solar cells use special materials and layers to work better. They have n-type silicon wafers as the base. These wafers help the cell last longer and work well. SiO2 and SiNx films cover the front and back. These films stop unwanted carrier recombination. The emitter and back surface field are set in a cross-finger pattern. This helps collect electrons and holes. There is an anti-reflective coating on the front. It helps the cell take in more sunlight. The back uses passivation designs like thermally grown SiO2 or hydrogenated amorphous silicon. These designs keep defects low.

Working principle overview

IBC solar cells work better because the back contact design lets more light in. The front has no metal parts, so sunlight gets through easily. When light hits the cell, it makes electron-hole pairs. These pairs move to the back contacts. The cell collects them and turns them into electricity. The curved and textured layers help trap light inside. This means the cell takes in more energy. The positive pyramid suede structure makes the doped layers strong and easy to see. Electrode contacts on the conductive layer side stop short circuits. They also make the cell more stable. The design helps the cell use more sunlight and lose less energy.

IBC solar cells use good passivation and high-quality materials to stay efficient. The interdigitated back contact layout stops shading and looks nice. Each cell gives more power, and the module works well in many places.

IBC technology vs. conventional solar modules

Contact placement comparison

IBC solar cells put all their contacts on the back. Conventional modules have metal contacts on the front. This changes how much sunlight the cell can take in. It also changes how the module looks.

IBC technology lets more sunlight reach the cell. The contacts are hidden, so the surface stays clear. Conventional modules lose sunlight because metal blocks some of the cell.

Efficiency and shading differences

IBC technology gives higher efficiency than regular solar modules. The back contact design lets more light in. The cell turns more sunlight into electricity. Studies show IBC modules can reach 26.7% efficiency. PERC modules reach 25.4%.

Shading affects how much power a solar module makes. Conventional modules lose power if even a small part is shaded. The whole string can drop in performance. IBC solar cells reduce shading losses. All contacts are on the back. You get better current flow and more light absorption. IBC panels handle moderate shading better. You get more stable energy output.

• Traditional modules lose power quickly when shaded.

• IBC panels avoid front-side busbar shading and absorb more light.

• You get improved shading tolerance with IBC technology.

IBC solar cells use a smart back contact design. This lowers recombination losses. It helps the cell collect charge carriers better.

Aesthetic and design contrasts

IBC modules look different from regular solar modules. IBC modules have an all-black look. The back-contact design removes metal parts from the front. This gives your roof a clean and modern style. Many people like this for homes and businesses. It fits well with new building designs.

Conventional modules show metal grids and busbars on the front. This can make the panel look busy or less attractive. Bifacial modules often look traditional and do not match modern architecture. IBC full-black modules fit rooftops and projects with high visual standards. The no-busbar design makes the module look unified and sleek. You get better efficiency and a nicer appearance.

The all-black design of IBC modules gives your solar installation a modern and cohesive look. You can enjoy both high performance and visual appeal.

Advantages of IBC solar module technology

High conversion efficiency

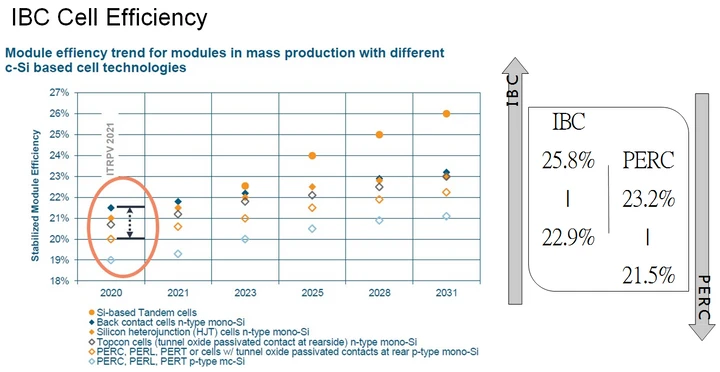

IBC technology helps solar panels make more electricity from sunlight. The special back-contact design moves metal lines to the back. This keeps the front clear for sunlight. More light can reach the cell’s active area. Less light gets blocked, so you get better energy efficiency.

IBC solar cells can reach up to 25% efficiency. This is much higher than most regular panels. There are a few reasons for this strong performance:

• IBC modules use smart designs to take in more light.

• They use new technology to stop energy loss.

• The back-contact design removes metal shading from the front, so more light is used.

IBC modules help you get more power from the same sunlight. You can trust them for top solar performance.

Reduced shading losses

Shadows can lower the power of normal solar cells. Even a small shadow can hurt a whole panel. IBC technology fixes this problem with a smart design. All the contacts are on the back. This lets current move along the rear contact. The panel keeps working well, even if part is shaded.

Back-contact modules can cut shading loss by up to 70%. Tests with many trucks show these modules work well in real shade. IBC modules also lower the risk of hotspots under shade.

• IBC modules let current move sideways on the back, so power stays steady.

• You see fewer drops in power when trees or clouds make shadows.

• The design helps your system last longer and stay safe.

Enhanced aesthetics

IBC technology makes solar panels look clean and modern. There are no metal lines on the front. You see a smooth, all-black surface that matches rooftops and buildings.

Many people pick IBC modules because they look nice. The panels fit well on homes, offices, and public places. You get good performance and a stylish look. This is a big reason people like IBC technology.

Tip: If you want your solar panels to look good and work well, IBC modules are a great choice.

IBC solar modules give you better efficiency, less shading loss, and a sleek look. These features make IBC technology a top pick for anyone who wants strong and good-looking solar panels.

Real-world performance

When you choose solar panels, you want them to work well in real life, not just in a lab. IBC solar modules stand out because they keep their high efficiency even when conditions are not perfect. You might see cloudy days, shade from trees, or sunlight that changes during the day. IBC technology helps your panels keep making power in all these situations.

IBC solar modules use a special back contact design. This design lets more sunlight reach the active part of the cell. You get more energy, even when the sun is low in the sky or when clouds cover the sun. Many people notice that their IBC panels start working early in the morning and keep working late into the evening. You do not lose as much power when the light is weak.

IBC solar modules give you steady and reliable energy. You can count on them to perform well, even when the weather is not perfect.

In real-world tests, IBC modules often beat regular solar panels. You see this difference most on days with changing light. For example, if a tree shades part of your roof, IBC panels keep making power. Regular panels lose more energy in the same situation. This means you get more electricity over the year.

Here are some ways IBC modules help you in daily use:

• Better low-light performance: Your panels work well at dawn, dusk, and on cloudy days.

• Less power loss from shade: You get more energy, even if something blocks part of the panel.

• Consistent output: Your system gives you steady power, so you can plan your energy use.

You want solar panels that work for you every day, not just in perfect weather. IBC solar modules help you get the most from your investment. You see real savings and strong performance, no matter where you live or what the weather brings.

Challenges of IBC technology

Manufacturing complexity

IBC solar cells look simple on the outside. But inside, they are much harder to make than regular solar cells. You have to carefully make interdigitated P and N regions. This needs many steps, like masking and photolithography. Every step must be done very carefully. If you mess up, the cell will not work right.

You also need really good materials. The silicon must let electricity move for a long time. This helps the cell make more power and waste less energy. If the silicon is not good, the cell will not be very efficient. The back-junction design makes this even more important.

Here is a table that shows the main manufacturing challenges:

Making IBC solar cells takes more time and skill. You need special tools and trained workers. This makes the process slower and more expensive.

Cost factors

IBC solar modules cost more than regular solar panels. The main reason is that they are harder to make. Each cell needs more steps and better materials. This makes each panel cost more.

Special machines and extra workers add to the price. You also have to check each cell to make sure it works well. If you want high efficiency, you have to pay more. IBC modules cost more, but they work better and look nicer.

• You pay more for high-quality silicon.

• The process uses more energy and time.

• Special machines and skilled workers cost extra.

• Quality checks add to the final price.

If you want the best solar panels, you must be ready to pay more for IBC technology.

Scalability issues

You might wonder why IBC solar modules are not everywhere. The reason is that making lots of them is hard. The process costs more than regular solar panels. You need special machines that most factories do not have. Only a few companies can make many IBC modules.

The back-contact design makes the process even harder. You need a lot of money to build a factory for IBC cells. This makes it hard for companies to grow fast.

• Expensive production process slows down growth.

• Specialized equipment is needed for every step.

• High capital investment makes it hard for new companies to enter the market.

• The complex structure means more training and quality control.

You may see more IBC modules in the future as technology gets better and costs go down. For now, these problems make IBC solar panels less common than regular ones.

Durability considerations

When you buy solar panels, you want them to last a long time. Durability is important because panels face sun, rain, wind, and snow. IBC solar modules have some special strengths. But you should also know about their challenges and benefits.

IBC panels use a back-contact design. This design takes away metal lines from the front. The front is smooth and collects more sunlight. The back-contact layout keeps the electrical parts safe from weather and dirt. This helps stop rust and damage as time goes on.

You might wonder how IBC panels do in real life. Studies show IBC modules, like Maxeon 7, work better in shade than PERC or HJT panels. When shade covers a panel, the temperature can go up fast. High heat can make hotspots. Hotspots hurt the cells and make the panel last less time. IBC panels stay cooler when shaded. For example:

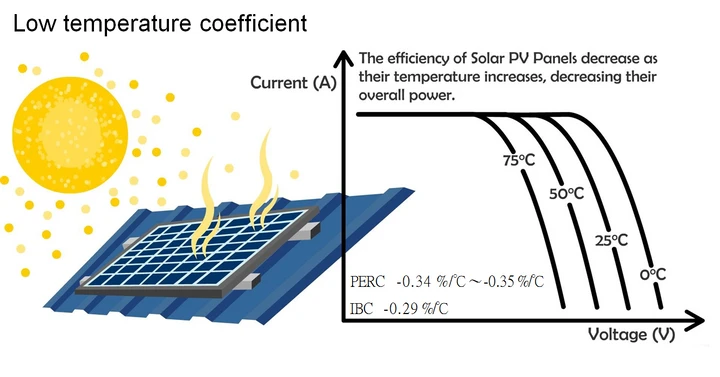

• IBC cell temperatures under shade are about 60 °C cooler than other panels, which can get hotter than 150 °C.

• Maxeon 7 IBC panels keep shaded cells about 67 °C cooler than ribbon-based back contact, HJT, and TOPCon panels.

• Cooler cells help stop hotspots and slow down wear.

Cooler cells put less stress on your panels. Your system lasts longer and you worry less about sudden problems.

IBC panels also fight microcracks better than some other panels. The back-contact design supports the cell and spreads out stress. This makes the panel less likely to break from wind or hail. You can trust IBC modules to handle tough weather.

But IBC technology does have some challenges. The back-contact design is complex and needs perfect making. If the contacts are not made well, the panel might fail early. You should buy from brands that test their panels for quality. Some IBC panels use thin silicon wafers. These can break more easily if not handled with care.

Here are some key things to remember about IBC module durability:

• IBC panels stay cooler in shade, so they last longer.

• The back-contact design protects against rust and dirt.

• Good IBC panels fight cracks and weather damage.

• You need good manufacturing for the best results.

When you pick IBC solar modules, you get strong panels that last a long time. Make sure you choose panels from companies with a good record. This way, your solar panels will work for many years.

Applications and future of IBC solar modules

Image Source: unsplash

Current uses in solar energy

IBC solar modules are used in many places today. People put them on homes to get more power from small spaces. Businesses use them on their roofs to save money and show they care about clean energy. Big solar farms also use IBC modules to make more electricity and be reliable. These panels work well for both small and big projects.

• Residential rooftops

• Commercial rooftops

• Utility-scale solar power plants

N-Type IBC technology gives you more choices. You can pick bifacial or monofacial panels for your needs. Many companies use IBC solar cells for solar roofing and solar tiles. These options fit into buildings and help you save money with solar energy.

IBC modules give strong performance for homes, offices, and big solar farms.

Market trends and adoption

More people are picking IBC solar modules every year. High efficiency makes them great for places with little space. The IBC cell design helps you get more energy from each panel. You can use fewer panels and still get enough power.

Many businesses want to use less carbon. IBC modules help you reach your green goals. Manufacturers use high-efficiency products to stand out. More IBC panels are used with energy storage systems. This lets you use solar power even when the sun is not out.

Smart grids are changing how people use electricity. IBC modules work well with these new systems. North America, Europe, and Asia-Pacific are seeing strong growth. Clean energy programs and good policies help more people try IBC technology. As more people care about the planet, IBC modules will be used in more places.

Future research and innovations

You will see new ideas for IBC solar modules soon. Scientists are finding new ways to connect and build solar cells. Some projects use new surface bonding methods. These could cut the steps needed to make IBC modules by half. This means lower costs and faster production.

Researchers are testing new materials and designs. Planar back-contact perovskite modules could make IBC panels even better. These new designs help you get more power and make panels last longer. You will see more mixing with other solar technologies, like next-generation solar roofing. Government programs and clean energy support these changes. Companies invest in new factories and research to make IBC modules stronger and cheaper.

IBC solar modules will get smarter, more efficient, and easier to use. These changes will help you get the most from your solar panels.

Now you know about IBC solar module technology. This design puts all the contacts on the back. You get better efficiency and a nice, smooth look. IBC modules give strong power and work well in bad weather. They are steady and reliable. There is less glare from these panels. You also get a 25-year warranty.

When you pick solar panels, think about these good points:

1. Makes more power in all kinds of weather

2. Works steady and does not break easily

3. Looks modern and does not shine too much

4. Handles tough weather like rain or heat

5. Lasts a long time and does not lose much power

6. Stays efficient even when it is hot

Check out IBC improvements to find the best solar panels for you.

FAQ

What does IBC stand for in solar technology?

IBC means Interdigitated Back Contact. You see all the electrical contacts on the back of the solar cell. This design helps you get more sunlight and higher efficiency.

Why do IBC solar panels look different from regular panels?

You notice IBC panels have a smooth, black surface. The metal contacts stay hidden on the back. This gives your roof a modern and clean look.

Are IBC solar modules more efficient than standard panels?

Yes, you get higher efficiency with IBC modules. The back contact design lets more sunlight reach the cell. You can expect up to 26% efficiency.

Do IBC panels work well in shaded areas?

You see better performance with IBC panels in shade. The design reduces power loss from shadows. Your system stays steady even when trees or clouds block the sun.

How long do IBC solar modules last?

You can expect IBC panels to last over 25 years. The back contact design protects the cell from weather and damage. You get a long-lasting solar solution.

Are IBC solar modules more expensive?

You pay more for IBC panels. The manufacturing process uses better materials and advanced steps. You get higher efficiency and a sleek look for the extra cost.

Can you use IBC modules for home and business?

Yes, you can install IBC modules on homes, offices, and large solar farms. The panels fit many projects and give you strong performance everywhere.

What makes IBC technology special?

You get less shading, higher efficiency, and a modern appearance. IBC technology helps you make more power and enjoy a better-looking solar system.
