The hotspot effect in solar panels occurs when certain areas of a solar panel become excessively hot. This overheating can be triggered by factors such as shade, dirt, or internal issues within the panel. When these areas overheat, they cease to generate power and instead produce heat. Neglecting the hotspot effect can significantly impair the overall efficiency of the panel.
The presence of hotspots can reduce the efficiency of solar panels by as much as 15%.
Addressing these hotspots can decrease their temperature from 55 °C to 35 °C, potentially increasing power output by up to 5.3%.
By effectively managing the hotspot effect in solar panels, we can enhance their performance and extend their lifespan.
Hotspots in solar panels can lower energy by up to 15%. Fixing them is important for better performance.
Cleaning solar panels often stops dirt from causing hotspots. This keeps energy production steady.
Thermal cameras find visible and hidden hotspots. This helps fix problems early.
Setting panels at the right angle gets more sunlight. It also reduces shading and hotspot risks.
Bypass diodes stop hotspots by moving current around damaged or shaded cells.
Checking and fixing solar panels often makes them last longer. It also avoids expensive repairs.
New solar tech, like cooling systems and IBC panels, works better and lowers hotspot chances.
Knowing what causes hotspots, like shading or damage, helps users prevent them.
The hotspot effect happens when parts of a solar panel get too hot. This can occur due to shading, physical damage, or reverse bias issues. When a solar cell is shaded or broken, it stops working properly. Instead of making electricity, it turns energy into heat like a resistor.
This overheating can make the temperature in those areas rise a lot. For example, damaged or shaded cells can heat up between 25 °C and 100 °C. The table below shows how different types of cracks affect hotspots and temperature changes:
| Crack Type | Hotspot Present? | Temperature Rise (°C) |
|---|---|---|
| Type 1 (no cracks) | No | None |
| Type 2 (small cracks) | No | None |
| Type 3 (shaded area) | Yes | 25 to 100 |
| Type 4 (broken cell) | Yes | 25 to 100 |
Hotspots lower the panel’s efficiency and wear out its materials faster. You can avoid this by keeping panels clean and fixing any damage quickly.
When hotspots form, affected cells stop making electricity. Instead, they produce heat, which harms the panel’s parts like the glass, solder, and protective layers. Over time, this heat can cause permanent damage and shorten the panel’s life.
Data shows that higher temperatures reduce efficiency. For every 1 °C increase, panels lose 0.5% to 0.8% efficiency. The table below explains this:
| Temperature Rise (°C) | Efficiency Loss (%) |
|---|---|
| 1 | 0.5 - 0.8 |
Fixing hotspots early can save efficiency and prevent long-term harm to your solar panels.

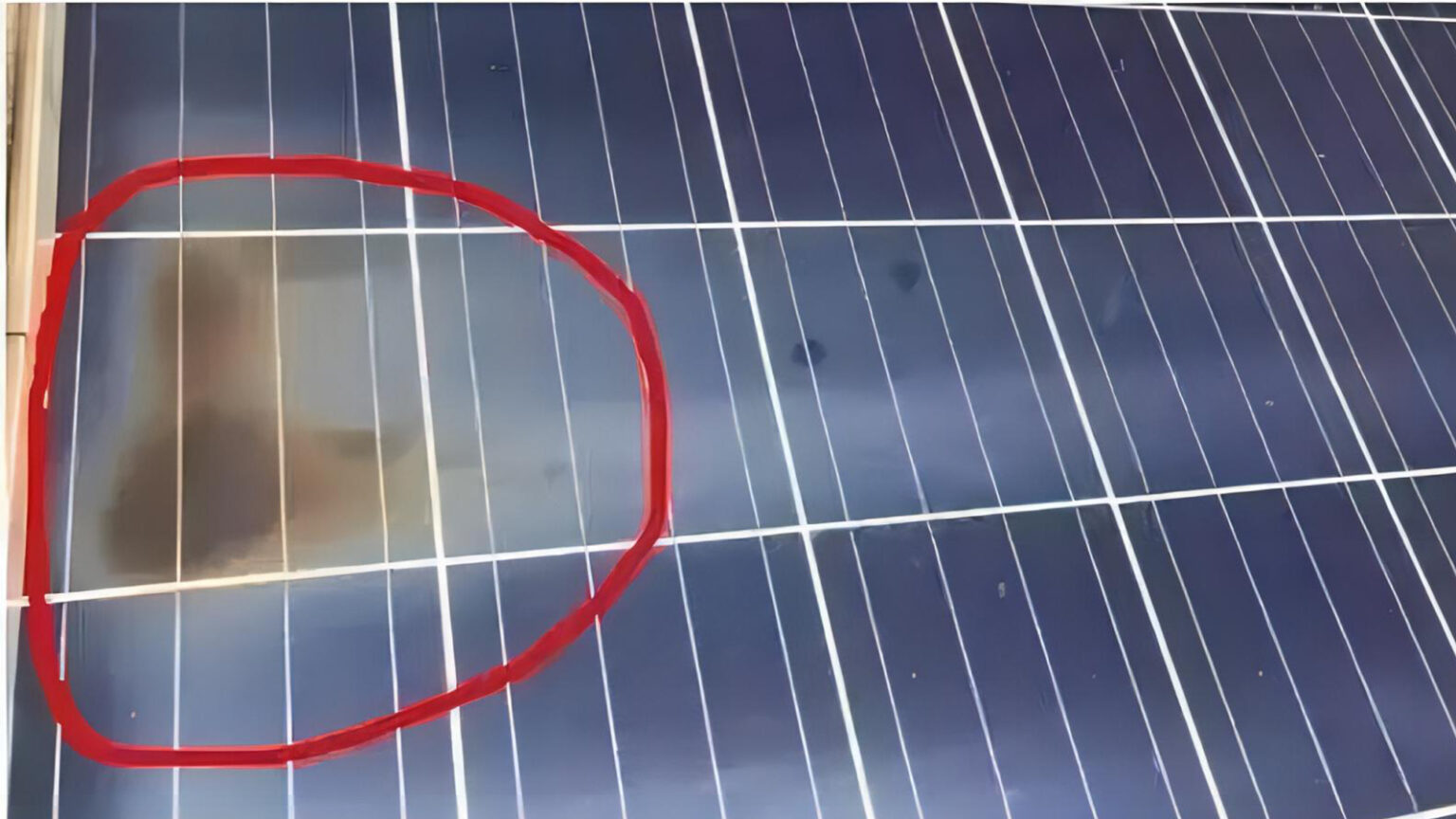

Hotspots often leave marks you can see. These include burn spots, faded colors, or cracks on the panel’s surface. For example, shading between 40% and 60% can heat hotspots to 145 °C, causing visible damage. The table below shows how shading affects hotspot temperatures:
| Shading (%) | Temperature Rise (°C) | Hotspot Temp (°C) |
|---|---|---|
| 40 | 25 to 105 | 145 |
| 60 | 25 to 105 | 145 |
If you notice these signs, fix them quickly to stop further damage.
Not all hotspots can be seen easily. Some are hidden and need special tools like thermal cameras to find them. These cameras show hot areas that might be missed otherwise. For example, infrared imaging found a cell 15 °C hotter than others due to defects.
New technology, like the VGG-16 deep learning model, makes finding hotspots even better. This model can spot hotspots with 99.98% accuracy using infrared images. Using these tools helps catch hidden problems before they get worse.
Tip: Regular thermal checks can find both visible and hidden hotspots. This keeps your solar panels working well.
Shade is a major cause of hotspots in solar panels. When sunlight is blocked by trees, buildings, or poles, shaded cells heat up. This happens because shaded cells absorb energy instead of making electricity. Even small shaded areas can cause big temperature differences. Shaded cells can get hotter than 130 °C, which lowers performance and damages materials faster.
Dirt, bird droppings, and mud block sunlight from reaching the panel. This causes uneven heating and creates hotspots. Cleaning the panels often can stop this problem. If not cleaned, dirt and debris can damage the panel over time. This reduces how well the panel works and shortens its life.
Snow, hail, and debris can harm solar panels. Snow blocks sunlight, while hail and debris can crack the surface. These cracks lead to uneven heating and more hotspots. Installing panels properly and using protective covers can help avoid these problems.
Broken glass or bent frames can crack solar cells. Cracks stop electricity from flowing smoothly, causing overheating. Studies show that heavy loads and temperature changes make cracks worse. This lowers the panel’s performance and increases hotspots.
Bad solder joints and weak cell materials can cause hotspots. Mistakes during installation or transport can make these issues worse. Over time, these problems reduce how well the panel works and cause overheating.
Solar cells wear out unevenly when they get different amounts of sunlight. Older cells don’t work as well and are more likely to overheat. Using mismatched panels together makes this problem worse. Regular checks and replacing old panels can fix this issue.
Bypass diodes help stop hotspots by redirecting current around shaded cells. If these diodes break, shaded cells heat up instead. Research shows broken diodes can raise temperatures by 18 °C. This extra heat stresses the panel and makes it less reliable.
Reverse bias happens when shaded cells take in energy instead of making it. This energy turns into heat, creating hotspots. Studies show reverse bias can make shaded cells hotter than 150 °C. Checking bypass diodes and electrical parts often can prevent this.
Hotspots hurt how well solar panels work. They make it harder for electricity to flow, which wastes energy. Over time, this problem gets worse, especially in tough weather. For example, tiny cracks in panels can cut power by up to 60%. These cracks make it harder for sunlight to turn into electricity.
Weather plays a big role in this issue. Extreme heat or cold changes the panel's materials, lowering its power. Regular cleaning and using thermal cameras can help find and fix hotspots early.
Hotspots are a major reason solar panels stop working. Studies show 22% of panels get damaged by hotspots. The table below shows how different panels lose power in various places:
| Study | Solar Panel Type | Power Loss Rate | Location |
|---|---|---|---|
| Kahoul et al. | Mono & Polycrystalline | 3.33% - 4.64%/year | Saharan Desert |
| Rashmi Singh et al. | a-Si & Multi-crystalline | 29.08% loss | Field Study |
| Chbihi et al. | Old vs New Panels | 29% loss | Morocco |
This data shows why fixing hotspots is important to keep panels working well.
Hotspots create too much heat, which damages the panel’s protective layers. These layers are supposed to protect the inside parts but weaken under heat. Over time, the layers can peel apart, making the panel less strong.
Hotspots don’t just harm the outside; they also hurt the inside. Wires, connectors, and solder joints can break from the heat. This stops electricity from flowing properly. Checking panels often and fixing problems quickly can stop this damage.
Hotspots cause quick temperature changes that weaken the panel’s materials. This leads to cracks and other problems, making the panel stop working sooner.
If hotspots stay for a long time, they can ruin panels forever. High heat and weak materials cause burned cells and broken parts. Once this happens, the panel can’t be fully fixed. Cleaning panels and installing them correctly can help avoid this.
Tip: Fixing hotspots early saves money and keeps panels working longer.

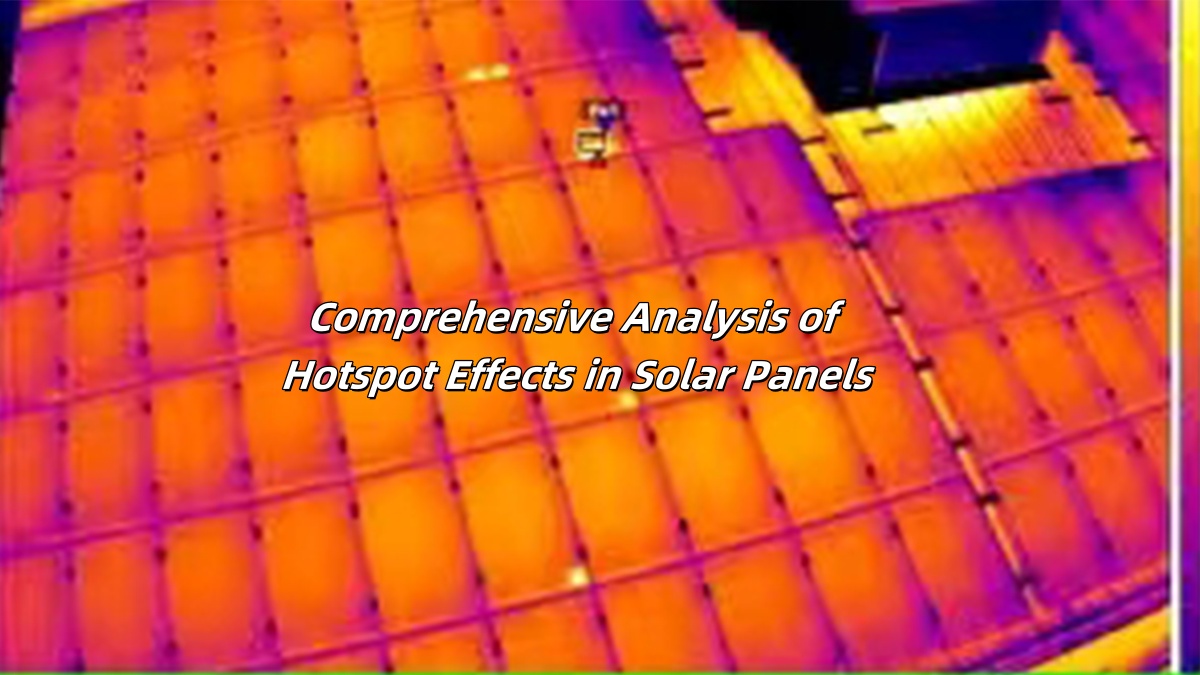

Thermal cameras are great for spotting solar panel hotspots. They show heat areas that you can’t see with your eyes. These cameras detect infrared radiation, helping you find hotspots fast and accurately. For example, cameras with 160 × 120 resolution and sensitivity of ≤ 50 mK can spot even small heat changes.
Modern tools use computer vision to check images instantly. This makes finding hotspots easier and reduces manual work. Drones with thermal cameras are also helpful for big solar farms. They scan large areas and create heat maps, so you don’t need to inspect each panel by hand.
Thermography is a safe way to check solar panels without harming them. It helps find hotspots early, saving money on repairs and making panels last longer.
Studies show thermal imaging works better than other methods. For example:
| Evidence | Description |
|---|---|
| Thermal Imaging System | Finds faults in panels better than older methods. |
| Performance Analysis | Shows energy changes and hotspot locations. |
| Use of Drones | Drones make it easier to check large solar farms. |
Thermal imaging also finds problems like energy loss and hotspot shapes. When used with voltage and current checks, it gives a full view of panel health.
Tools like MATLAB and ANSYS help study how hotspots form. They create models to show how heat spreads in solar panels. For example, ANSYS tests show less than 10% error compared to real data, proving they work well under shading.
Simulations let you test ideas without damaging panels. They show how shading and defects cause hotspots, so you can fix problems early. MATLAB helps model how panels handle heat and electricity, spotting issues before they happen.
Research backs up simulation results with real-world tests. A study using ANSYS made models for hotspot heat and tested them outside. It showed how shading and defects create hotspots, proving early fixes are important.
| Aspect | Details |
|---|---|
| Study Focus | Simulated how heat spreads in damaged solar cells. |
| Software Used | ANSYS |
| Methodology | Made heat models and tested them outside. |
| Key Findings | Less than 10% difference between tests and real data. |
| Experimental Validation | Outdoor tests showed how shading causes hotspots. |
By mixing simulations with thermal imaging, you can find and fix solar panel hotspots better.
Cleaning solar panels is an easy way to stop hotspots. Dirt, bird droppings, and mud block sunlight, causing uneven heating. This lowers energy production. Studies show dirty panels can lose up to 50% efficiency in six months. For example, research in Saudi Arabia found big energy losses from dirt buildup:
| Study Name | Efficiency Loss | Time Frame | Location |
|---|---|---|---|
| Adinoyi and Said | 50% | 6 months | Saudi Arabia |
| Mani and Pillai | 40% | 6 months | Saudi Arabia |
| Owusu-Brown | 28.7% | 4 months | Northern Ghana |
Cleaning panels regularly keeps them working well and avoids energy waste.
Setting panels at the correct angle helps them get more sunlight. This stops shading, which can cause hotspots. New mounting systems improve energy capture by up to 25%. Proper angles also lower heat stress on shaded cells, making panels last longer.
Before installing panels, inspect the area for shading problems like trees or buildings. Also, study the weather conditions. Advanced methods like GMPPT help handle shading issues. These methods find safe power levels, reducing hotspot risks:
| Evidence Type | Findings |
|---|---|
| Enhanced GMPPT method used | Tracks safe power levels to avoid hotspots. |
| Compared to older methods | Lowers heat stress by finding better voltage levels. |
Site checks help prevent hotspots and keep panels working efficiently.
High-quality solar panels are made to handle shading and dirt better. Cooling systems can fix small hotspots caused by shading on a few cells. Even in tough conditions, cooling improves energy output. These panels work well in cities with limited sunlight.
Bypass diodes help stop hotspots by moving current around shaded or damaged cells. If diodes break, shaded cells can overheat and damage the panel. Regularly checking and replacing bad diodes keeps panels reliable.
Cooling systems lower heat stress, while IBC panels improve energy flow. These tools are helpful in areas with shading or bad weather. Using advanced solar technology avoids hotspots and boosts energy production.
Letting air flow under panels helps reduce heat and stops hotspots. Raised mounting systems improve airflow, lowering heat stress. This simple fix makes panels last longer.
Monitoring your solar system helps find problems early. Thermal cameras can spot hotspots and check panel health. Predictive maintenance plans help schedule inspections and avoid costly repairs. For example:
| Evidence Type | Description |
|---|---|
| Thermal Imaging | Finds temperature changes to locate hotspots. |
| Energy Tracking | Monitors energy output to find hidden issues. |
| Real-Time Monitoring | Watches panel performance constantly to spot heat patterns. |
Using regular checks and smart monitoring tools prevents hotspots and keeps panels efficient.
Hotspots in solar panels lower efficiency, harm parts, and reduce lifespan. You can stop these problems by knowing their causes. Shading, dirt, and broken parts often create hotspots. Finding hotspots early with thermal cameras or computer models prevents serious damage. Cleaning panels, installing them correctly, and using tools like bypass diodes make them work better.
| Problem Type | Effect on Energy Output | Ways to Fix |
|---|---|---|
| Shade blocking sunlight | 60%-70% less power | Airflow under panels raises output by 14.25% |
| Snow covering panels | 12% yearly energy loss | N/A |
| Dust in dry areas | Saves 20%-30% on cleaning | N/A |
Fixing hotspots helps solar panels work well and last longer.
Hotspots happen because of shade, dirt, or broken parts. These block sunlight and make some areas overheat.
Yes, long-lasting hotspots can cause permanent harm. They damage protective layers, inside parts, and shorten the panel’s life. Fixing them early stops this.
Thermal cameras are the best tools for this. They show heat differences you can’t see. Drones and computer tools make finding hotspots easier.
Bypass diodes lower the chance of hotspots by moving current around shaded cells. But they don’t stop every hotspot. Check them often to keep them working.
Clean panels every 3 to 6 months. In dusty places, clean more often. This stops dirt from causing hotspots.
Yes, extreme weather like dust, snow, or hail makes hotspots more likely. Good setup and care help avoid this.
Yes, newer panels with better materials and cooling systems resist hotspots. Tools like IBC panels and improved diodes make them stronger.
Costs depend on how bad the damage is. Small fixes like replacing a diode are cheap. Big repairs, like changing a panel, cost more. Preventing hotspots saves money.
Tip: Take care of your panels regularly to avoid expensive repairs and make them last longer.
