You want your solar cells to be safe, and for that, POE encapsulant offers the best protection. It effectively keeps out water, UV light, and chemicals better than other options. While EVA, POE, and silicone each have their own advantages, many companies still choose EVA due to its strong adhesion and high light transmission. In 2024, EVA accounted for over 65% of the market. Overall, encapsulation is essential for ensuring that solar panels last longer and operate more efficiently.
POE encapsulant gives the best protection for solar cells. It blocks water, UV light, and chemicals. - EVA is used the most because it is cheap and works well. But EVA can break down after some time. - Silicone encapsulant works well in tough places. It is very strong and does not get damaged by UV light.
Picking the right encapsulant can help solar panels last longer. It can also help them work better. - Think about your budget before you choose an encapsulant. Also, think about where you will use the solar panels.
When you look at a solar panel, you mostly see glass and metal. But the real protection comes from the layers inside the panel. Encapsulation materials are very important for keeping solar cells safe and working well. These materials stick the cells to the front glass and the backsheet. This helps hold everything together and stops the layers from coming apart. Encapsulation materials also help absorb shocks and vibrations. This means your solar panels can handle wind, hail, and other hits.
Encapsulation materials make a strong barrier. They keep out water, dust, and air that could hurt the cells. They also give electrical insulation. This is important because solar cells use high voltages. Without good insulation, the cells could short-circuit or lose power. Encapsulation materials help keep the cells dry and safe, even in bad weather.
Tip: Picking the right encapsulant helps your solar panels last longer and work better.
Encapsulation materials do more than just hold the solar cells together. They protect against many kinds of damage:
Stop moisture from getting in, which can cause rust and lower how well the panel works.
Block dust from building up on the cells.
Help keep the panel from bending or breaking.
Slow down aging, so the panel works for many years.
You can see how encapsulation materials help keep efficiency high. The table below shows that the right encapsulation materials do not lower how much electricity the cells make:
| Condition | Efficiency (%) |
|---|---|
| Before Encapsulation | 19.2 average, up to 19.9 |
| After Encapsulation | 19.7 for the best device |
Encapsulation materials cover both sides of the cell. This double layer gives full protection. The bonding process makes the panel stronger, so it can last longer. Encapsulation materials also stand up to sunlight and heat, which helps the panel keep working year after year.

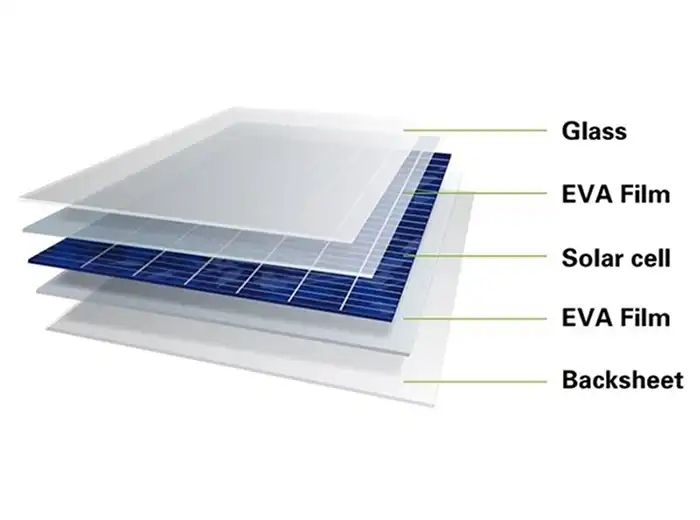

EVA is the most used encapsulant in solar panels. It is also called ethylene vinyl acetate. EVA holds the solar cells together and keeps them safe. The chemical stability of EVA depends on its gel content. If the gel content is higher than 84%, EVA is more stable. If the gel content is lower than 70%, problems can happen. These problems include oxidation and hydrolysis. These issues can make EVA weaker and shorten the panel’s life.
EVA with high gel content is more stable.
Low gel content makes EVA break down faster.
Sunlight, heat, and humidity can weaken EVA over time.
If EVA breaks down, the layers inside the panel may come apart.
You should check how EVA handles different temperatures. This helps you know how long your solar panels will last.
EVA works well as an encapsulant but has some weak points. Sunlight and moisture can cause problems for EVA. The table below lists the most common issues:
| Degradation Issue | Description |
|---|---|
| Photodegradation | UV light breaks down EVA and lowers performance. |
| Moisture-induced delamination | Water causes the layers to separate and weakens the panel. |
| Bubble formation | Moisture or gas gets trapped and makes bubbles, which blocks light. |
| Potential Induced Degradation (PID) | Electrical stress causes more damage and lowers performance. |
High-transmittance EVA film helps absorb more light. But it still needs protection from UV and water. You should watch for these problems if you want your panels to last.
EVA is the cheapest encapsulant for making lots of solar panels. Most panels use EVA because it is reliable and not expensive. The table below shows the cost and features of each encapsulant:
| Encapsulant Type | Cost Effectiveness | Properties | Notes |
|---|---|---|---|
| EVA | Lower cost | Reliable | Used a lot for the front side of panels |
| POE | More expensive | Stops water better, blocks ions well | Used to stop PID, often mixed with EVA |
| Silicone | Highest cost | Strong and works well | Not explained in detail here |
EVA is a good choice for most solar panels. It gives a good mix of price and performance. If you need more protection, you can pick something else. But EVA is still the most popular for many solar projects.

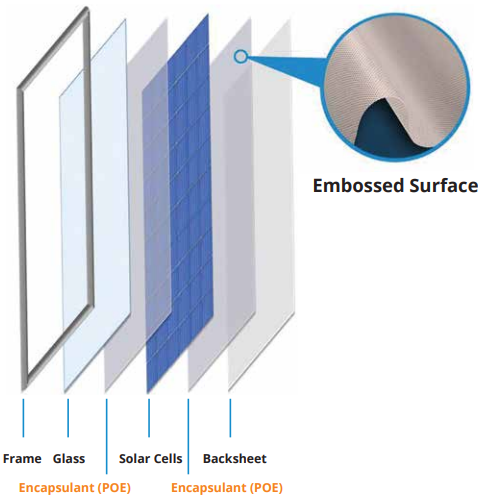

If you want the strongest protection, POE encapsulant is a great choice. POE means polyolefin elastomer. This material keeps out water, chemicals, and electrical problems. POE blocks moisture and stops sodium ions from reaching the cells. This helps stop potential-induced degradation, which can lower power. POE also gives strong support and lasts a long time. The table below shows why POE protects so well:
| Property | Description |
|---|---|
| Mechanical Support | Keeps solar cells strong inside the module |
| Insulation | Stops short circuits and keeps electricity flowing safely |
| Long-term Durability | Protects against weather and aging |
| Volume Resistivity | Reduces electrical losses |
| Moisture Permeability | Blocks water from getting in |
| Sodium Ion Permeability | Stops sodium ions and prevents PID |
POE stands out because it has all these good features for protection.
POE encapsulant gives even more benefits. It blocks UV rays very well. Your panels will not turn yellow like with EVA. POE keeps its shape and strength after years of sun and heat. You do not have to worry about losing power from UV damage. POE’s high volume resistivity blocks electrical leaks better than EVA. This helps your solar panels last longer and work better. POE’s UV resistance and insulation make it best for tough places.
POE has a better moisture barrier and UV stability than EVA.
POE is less likely to have PID because of its high resistivity.
POE keeps panels clear and strong, but EVA may turn yellow.
POE encapsulant is used in the most advanced solar modules. Glass-glass modules and n-type cell modules often use POE for the best protection. These modules need strong UV resistance and moisture blocking. POE helps them last longer and keeps their power high. If you want the best for high-efficiency or bifacial modules, POE is the top pick. POE makes sure your solar panels stay safe for many years.
Note: POE encapsulant is the best for advanced modules that need extra care against UV, moisture, and electrical problems.
Some solar panels use silicone instead of EVA or POE. Silicone is special because it stays strong in tough conditions. It does not change shape when it gets hot or cold. Silicone can handle harsh chemicals without breaking down. This helps protect solar cells from damage. The panels last longer, even in places with bad weather.
Silicone also blocks UV rays very well. It does not turn yellow or get weak after years in the sun. The UV protection keeps the solar cells working well. Silicone does not let much water in. This keeps the cells safe from moisture. Silicone is a good choice if you want your panels to last a long time.
If you need a solar encapsulant for hard conditions, silicone is a safe pick.
Silicone is used in special solar projects. Sometimes EVA or POE do not work as well. Silicone adhesives and sealants are flexible and strong. They help keep solar panels safe for many years. Silicone works well where there are strong winds or heavy rain.
Silicone is great for special uses. For example, it is used in space on satellites and stations. Silicone resists chemicals and does not soak up water. It lets UV light pass through easily. This makes it perfect for high-performance solar panels. Silicone costs more and needs special tools to use. But it gives the best protection and lasts a long time.
Here is a quick comparison of where silicone works best:
| Application Type | Why Choose Silicone? |
|---|---|
| Space and satellites | High UV resistance, chemical stability |
| Harsh climates | Strong durability, low water absorption |
| Specialized solar panels | Long-lasting, flexible |
Silicone is not the most common encapsulant. But you should pick it when you need the best protection and stability for your solar panels.
When picking a material for solar panel encapsulation, you should look at some important features. Each encapsulant—EVA, POE, and Silicone—protects solar panels in different ways and works differently. Here is a simple table to help you compare them:
| Feature | EVA | POE | Silicone |
|---|---|---|---|
| Chemical Stability | Moderate | High | High |
| UV Resistance | Moderate | High (UV cut-off) | High |
| Moisture Protection | Moderate | High | High |
| Mechanical Strength | Good | Excellent | Excellent |
| Cost | Low | Medium | High |
POE does better than the others in most areas. POE has high chemical stability because it does not react with acid gases. This means it will not damage your solar cells. POE also blocks UV rays, so sunlight does not hurt the panels. Silicone gives strong protection too, especially in tough places, but it costs more and is not used as much.
POE stops UV rays, so your solar panels do not get UV damage.
POE makes your panels stronger and last longer.
POE keeps out water and stops PID from happening.
EVA is popular because it is cheap and easy to use, but it can break down faster in hard conditions.
Silicone is best for special projects where you need extra strength and flexibility.
You want your solar panel encapsulation to last a long time and keep your panels working well. Each material has good and bad points that change how well your panels work.
EVA is liked by many solar panel makers. It works well and does not cost much. But EVA can get weaker from UV light and water getting inside. This can make your panels lose power or turn yellow, especially in hot or wet places.
POE gives better protection from heat and water. It keeps your solar panels safe from water and high temperatures, so they work better for longer. POE also stops sodium ions from hurting the cells, which helps stop PID. This means your panels stay efficient even in tough weather. POE is the best for advanced and bifacial modules because it protects the most.
Silicone encapsulants are the most flexible and strong. They work great in very hard places, like space or where there is lots of rain and wind. Silicone does not turn yellow or break down easily. But it costs more and is harder to use for regular solar panels.
Here is a table that shows how much power each encapsulant can lose:
| Encapsulant | Power Degradation Rate | Climate Impact |
|---|---|---|
| EVA | 0% - 9% | Varies |
| POE | 0% | Varies |
| Silicone | N/A | N/A |
POE loses the least power over time. This means your solar panels will work well for longer. EVA can lose more power, especially in hard climates. There is not enough data for silicone in regular panels, but it is known to last a long time in special uses.
If you want the best protection for your solar panels, POE is usually the best pick. It keeps your panels safe from UV, water, and chemicals, so you get the best performance and efficiency over time.
If you pick encapsulation for regular solar panels, you want it to work well and not cost a lot. EVA is the most used choice for these panels. People use EVA because it has protected cells for a long time. It keeps cells safe from water, dust, and air. EVA also helps absorb shocks and shakes. This makes your panels last longer. Since the 1980s, makers have trusted EVA to keep power high and slow down damage. New materials like POE are now available, but EVA is still popular. It is reliable and simple to use. You can trust EVA to help your panels work well and keep your cells safe for many years.
Tip: If you want a proven and low-cost way to protect standard solar panels, EVA is a good choice.
Advanced panels, like bifacial or heterojunction types, need more protection. These panels collect light from both sides. They get more stress from UV rays and moisture. POE is often the best pick for these panels. POE gives great moisture protection and strong resistance to potential-induced degradation. It also keeps cells safe from sodium ions and blocks UV light better than EVA. This helps your panels keep their power high for longer.
Here is a table to compare encapsulants for advanced panels:
| Encapsulant | Advantages | Limitations |
|---|---|---|
| EVA | Low cost, good optical properties, easy to use | Turns yellow, acetic acid |
| POE | Best moisture barrier, strong PID and UV resistance | Costs more |
| EPE | Good balance of cost and performance | Not as common |
You should use POE if you want advanced panels to last longer and keep working well. POE is a good choice for panels that need extra care in tough conditions.
If you want to put panels in places with lots of humidity, very hot or cold weather, or near the ocean, you need extra protection. POE works very well in these tough places. It stops water from getting in, which is important in wet areas. POE also has high volume resistivity, so it keeps the electrical parts safe. It stands up to strong UV rays and does not break down in the sun. In coastal areas, POE resists salt and stops rust. This means your panels keep working and your cells stay safe.
It helps panels stay strong in hot and sunny places.
POE resists salt, so it is good for panels near the sea.
If you want your panels to last in hard places, POE is the best choice for solar cell encapsulation.
If you do not want to spend much money, you need to think about the price of each encapsulant. EVA is the cheapest choice for most panels. It gives good protection and keeps cells safe, but may not last as long in very tough places. POE costs more, but it protects better and helps panels keep their power for many years. EPE is in the middle, with a moderate price and better resistance to UV and moisture than EVA.
Here is a table to show the cost differences:
| Encapsulant Type | Cost Effectiveness | Performance Characteristics |
|---|---|---|
| EVA | Cheapest | Not as durable |
| POE | Costs more | Best protection and lasts longest |
| EPE | Medium price | Better UV and moisture resistance |
If you want to save money and your panels will not face bad weather, EVA is a good pick. If you want the best protection and longer life, POE is worth the extra cost.
Note: Always choose your encapsulant based on your panel type, where you will put it, and your budget. This helps you get the best results and power from your solar panels.
You have learned that POE protects solar panels the best. It keeps out water and blocks UV rays very well. EVA is still used a lot because it is cheap and simple to use. But EVA can turn yellow and get weaker as time goes on. Silicone is good for special jobs when you need something extra strong.
When picking an encapsulant, keep these things in mind:
Good crosslinking makes panels stronger against heat and sunlight.
If adhesion or gel content is low, your panel can get weak.
Picking the right material helps your solar panels work their best. Ask experts to help you choose the best encapsulant for your needs.
Encapsulation is a way to protect solar cells. It keeps water, dust, and air away from the cells. Encapsulation also holds the cells in one place. This helps your solar panel last longer and work better.
Encapsulation keeps solar cells safe from harm. It blocks moisture and dirt from getting inside. Encapsulation also stops the cells from moving around. This helps your solar panel make power for many years.
You need to think about what your solar panel needs. EVA works well for most panels. POE gives even more protection for your cells. Silicone is good for very tough places. Your choice depends on your budget and where you use the panel.
Yes, encapsulation can change how well your panel works. Good encapsulation lets light reach the cells. It also keeps out water and dirt. This helps your solar panel work its best.
You should check encapsulation once every year. Weather can damage encapsulation over time. Problems with encapsulation can lower your panel’s power. Checking helps you find issues early. Taking care of encapsulation helps your solar panel last longer.
